5. Software Control - Lightware Device Controller
5.11. Settings Menu
5.11.1. Status
The most important hardware and software related information can be found on this tab: hardware and
firmware version, serial numbers, temperatures, operation time, and voltage information. Device label can
be changed to a unique description by the Set button.
Please note that the Miniweb-related descriptions can be found in
If you click on the Identify me button, the status and crosspoint LEDs will blink in green for 10 seconds. The
feature helps to identify the device itself in the rack shelf.
#devicelabel #label #producttype
#serialnumber

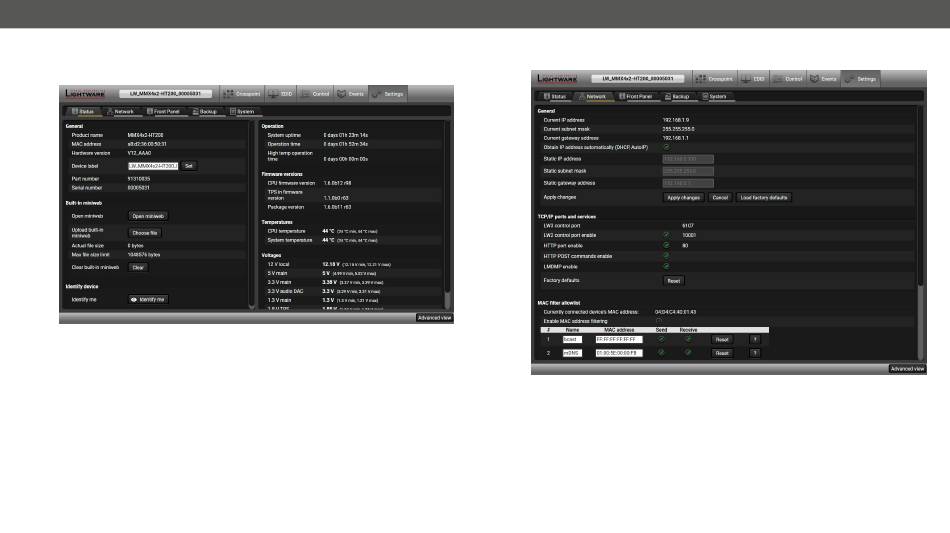

Status tab in Settings menu
The Built-in Miniweb section.
#firmwareversion #identifyme

#status

Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
MMX4x2 series – User's Manual
5.11.2. Network
General
IP address and DHCP settings can be set on this tab. Always press the Apply settings button to save changes.
Factory defaults settings can be recalled with a dedicated button.
TCP/IP Ports and Services
The IP Port Block feature is an additional protection for the Cleartext login, see the
Settings) section. There are TCP/IP ports in Lightware devices that are not protected by the login, so you
can disable them if necessary. For example, due to the working method of the LW2 communication, the
Cleartext login does not provide protection when LW2 command is sent to the device, that is why the TCP
port no.10001 shall be blocked manually.
Network tab in Settings menu
Cleartext Login (Login
#dhcp #ipaddress #network #portblock
