4. Operation of MMX6x2-HT Family

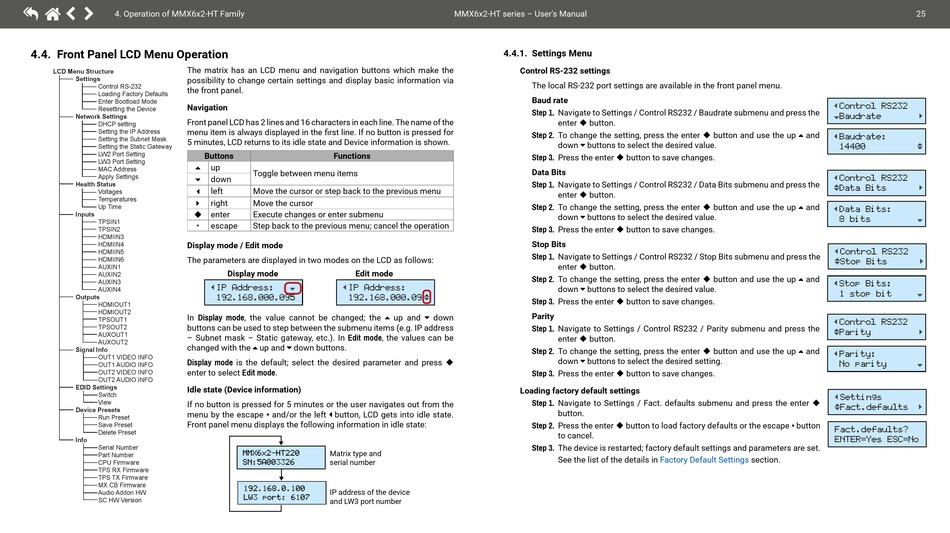

4.4. Front Panel LCD Menu Operation
The matrix has an LCD menu and navigation buttons which make the
LCD Menu Structure
Settings possibility to change certain settings and display basic information via
Control RS-232
the front panel.
Loading Factory Defaults
Enter Bootload Mode
Navigation
Resetting the Device
Network Settings
Front panel LCD has 2 lines and 16 characters in each line. The name of the
DHCP setting
menu item is always displayed in the first line. If no button is pressed for
Setting the IP Address
Setting the Subnet Mask
5 minutes, LCD returns to its idle state and Device information is shown.
Setting the Static Gateway
LW2 Port Setting
LW3 Port Setting

MAC Address
Apply Settings

Health Status
Voltages 
Temperatures

Up Time
Inputs 
TPSIN1
•
TPSIN2
HDMIIN3
Display mode / Edit mode
HDMIIN4
HDMIIN5
The parameters are displayed in two modes on the LCD as follows:
HDMIIN6
AUXIN1
AUXIN2
AUXIN3
AUXIN4
Outputs
HDMIOUT1
HDMIOUT2
In Display mode, the value cannot be changed; the  up and  down
TPSOUT1
buttons can be used to step between the submenu items (e.g. IP address
TPSOUT2
AUXOUT1
– Subnet mask – Static gateway, etc.). In Edit mode, the values can be
AUXOUT2
changed with the  up and  down buttons.
Signal Info
OUT1 VIDEO INFO
Display mode is the default; select the desired parameter and press 
OUT1 AUDIO INFO
enter to select Edit mode.
OUT2 VIDEO INFO
OUT2 AUDIO INFO
EDID Settings Idle state (Device information)
Switch
View If no button is pressed for 5 minutes or the user navigates out from the
Device Presets
menu by the escape • and/or the left  button, LCD gets into idle state.
Run Preset
Front panel menu displays the following information in idle state:
Save Preset
Delete Preset
Info
Serial Number
Part Number
CPU Firmware
TPS RX Firmware
TPS TX Firmware
MX CB Firmware
Audio Addon HW
SC HW Version
Buttons Functions
up
Toggle between menu items
down
left Move the cursor or step back to the previous menu
right Move the cursor
enter Execute changes or enter submenu
escape Step back to the previous menu; cancel the operation
Display mode Edit mode
¹IP Address: » ¹IP Address:
192.168.000.095 192.168.000.09 ½
MMX6x2-HT220 Matrix type and
SN:5A003326 serial number
192.168.0.100
IP address of the device
LW3 port: 6107
and LW3 port number
MMX6x2-HT series – User's Manual
4.4.1. Settings Menu
Control RS-232 settings
The local RS-232 port settings are available in the front panel menu.
Baud rate
Step 1. Navigate to Settings / Control RS232 / Baudrate submenu and press the
enter  button.
Step 2. To change the setting, press the enter  button and use the up  and
down  buttons to select the desired value.
Step 3. Press the enter  button to save changes.
Data Bits
Step 1. Navigate to Settings / Control RS232 / Data Bits submenu and press the
enter  button.
Step 2. To change the setting, press the enter  button and use the up  and
down  buttons to select the desired value.
Step 3. Press the enter  button to save changes.
Stop Bits
Step 1. Navigate to Settings / Control RS232 / Stop Bits submenu and press the
enter  button.
Step 2. To change the setting, press the enter  button and use the up  and
down  buttons to select the desired value.
Step 3. Press the enter  button to save changes.
Parity
Step 1. Navigate to Settings / Control RS232 / Parity submenu and press the
enter  button.
Step 2. To change the setting, press the enter  button and use the up  and
down  buttons to select the desired setting.
Step 3. Press the enter  button to save changes.
Loading factory default settings
Step 1. Navigate to Settings / Fact. defaults submenu and press the enter 
button.
Step 2. Press the enter  button to load factory defaults or the escape • button
to cancel.
Step 3. The device is restarted; factory default settings and parameters are set.
See the list of the details in
¹Control RS232
»Baudrate
¹Baudrate:
¹Control RS232
½Data Bits
¹Data Bits:
¹Control RS232
½Stop Bits
¹Stop Bits:
¹Control RS232
½Parity
¹Parity:
¹Settings
½Fact.defaults º
Fact.defaults?
ENTER=Yes ESC=No
Factory Default Settings section.
25
º
14400 ½
º
8 bits »
º
1 stop bit »
º
No parity »
