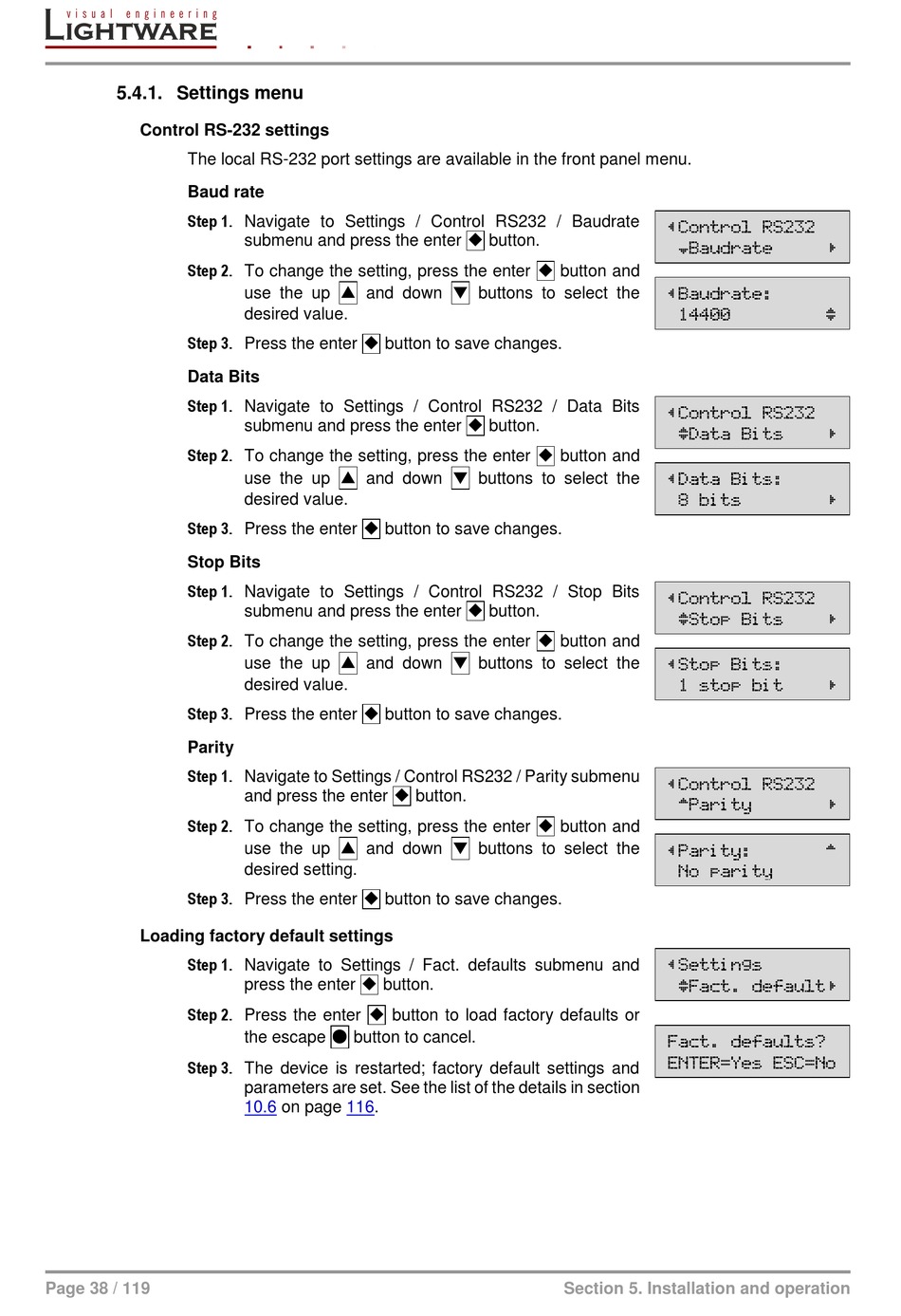

5.4.1. Settings menu

Control RS-232 settings
The local RS-232 port settings are available in the front panel menu.
Baud rate
Step 1. Navigate to Settings / Control RS232 / Baudrate
Step 2. To change the setting, press the enter  button and
Step 3. Press the enter  button to save changes.
Data Bits
Step 1. Navigate to Settings / Control RS232 / Data Bits
Step 2. To change the setting, press the enter  button and
Step 3. Press the enter  button to save changes.
Stop Bits
Step 1. Navigate to Settings / Control RS232 / Stop Bits
Step 2. To change the setting, press the enter  button and
Step 3. Press the enter  button to save changes.
Parity
Step 1. Navigate to Settings / Control RS232 / Parity submenu
Step 2. To change the setting, press the enter  button and
Step 3. Press the enter  button to save changes.
Loading factory default settings
Step 1. Navigate to Settings / Fact. defaults submenu and
Step 2. Press the enter  button to load factory defaults or
Step 3. The device is restarted; factory default settings and
Page 38 / 119
submenu and press the enter  button.
use the up ▲ and down ▼ buttons to select the
desired value.
submenu and press the enter  button.
use the up ▲ and down ▼ buttons to select the
desired value.
submenu and press the enter  button.
use the up ▲ and down ▼ buttons to select the
desired value.
and press the enter  button.
use the up ▲ and down ▼ buttons to select the
desired setting.
press the enter  button.
the escape ● button to cancel.
parameters are set. See the list of the details in section
10.6 on page 116.
¹Control RS232
»Baudrate
¹Baudrate:
14400
¹Control RS232
½Data Bits
¹Data Bits:
8 bits
¹Control RS232
½Stop Bits
¹Stop Bits:
1 stop bit
¹Control RS232
¼Parity
¹Parity:
No parity
¹Settings
½Fact. defaultº
Fact. defaults?
ENTER=Yes ESC=No
