Components

007-4498-002
Both rack types, as shown in Figure A-3, have front and rear doors that have keylocks to
prevent unauthorized access of the system. The racks also have cable entry/exit areas at
the bottom of the rack and cable management hardware in the rear of the racks.
Both rack types are mounted on four casters, two of which are swivel castors. The castors
enable the racks to be rolled out of a shipping crate and to its placement at your site.
The base of the racks have seismic tie-down attachment points. The base of the tall rack
also has leveling pads.

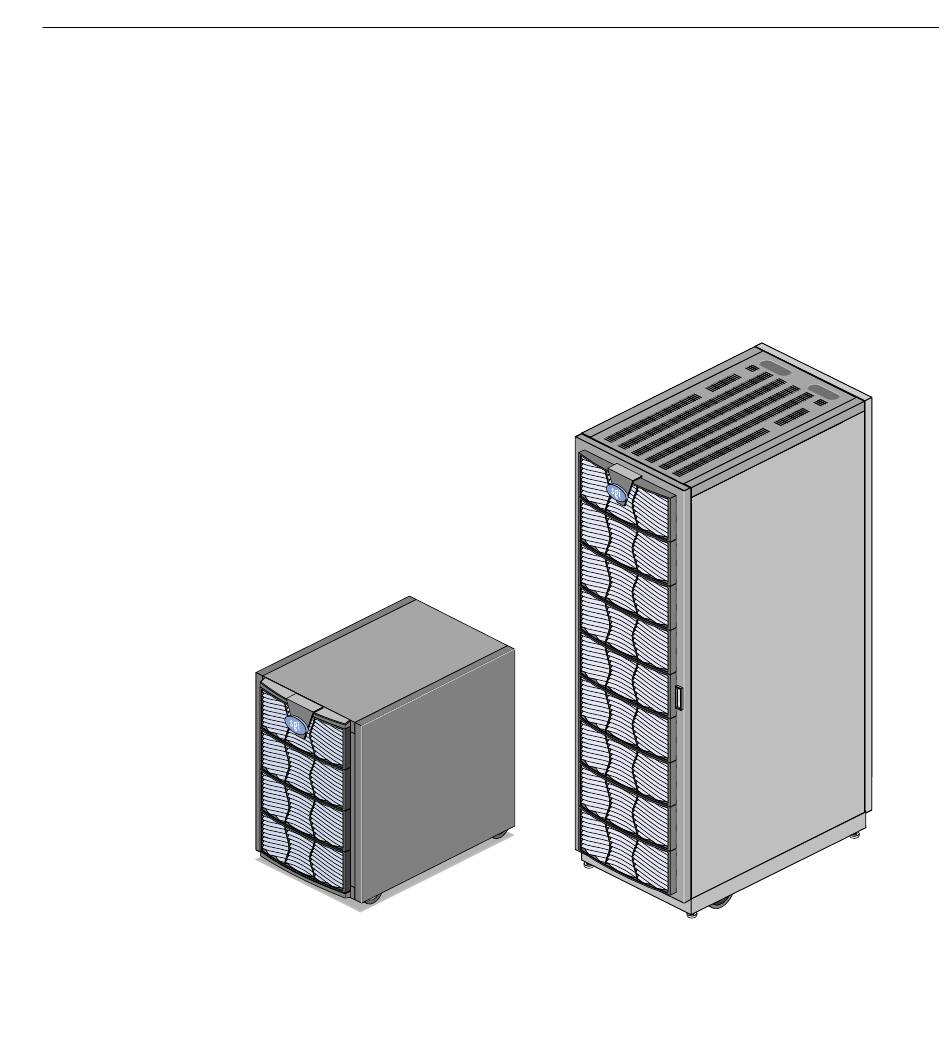

Short rack
Front Views of Short and Tall Racks
Figure A-3
Tall rack
Rack
117
