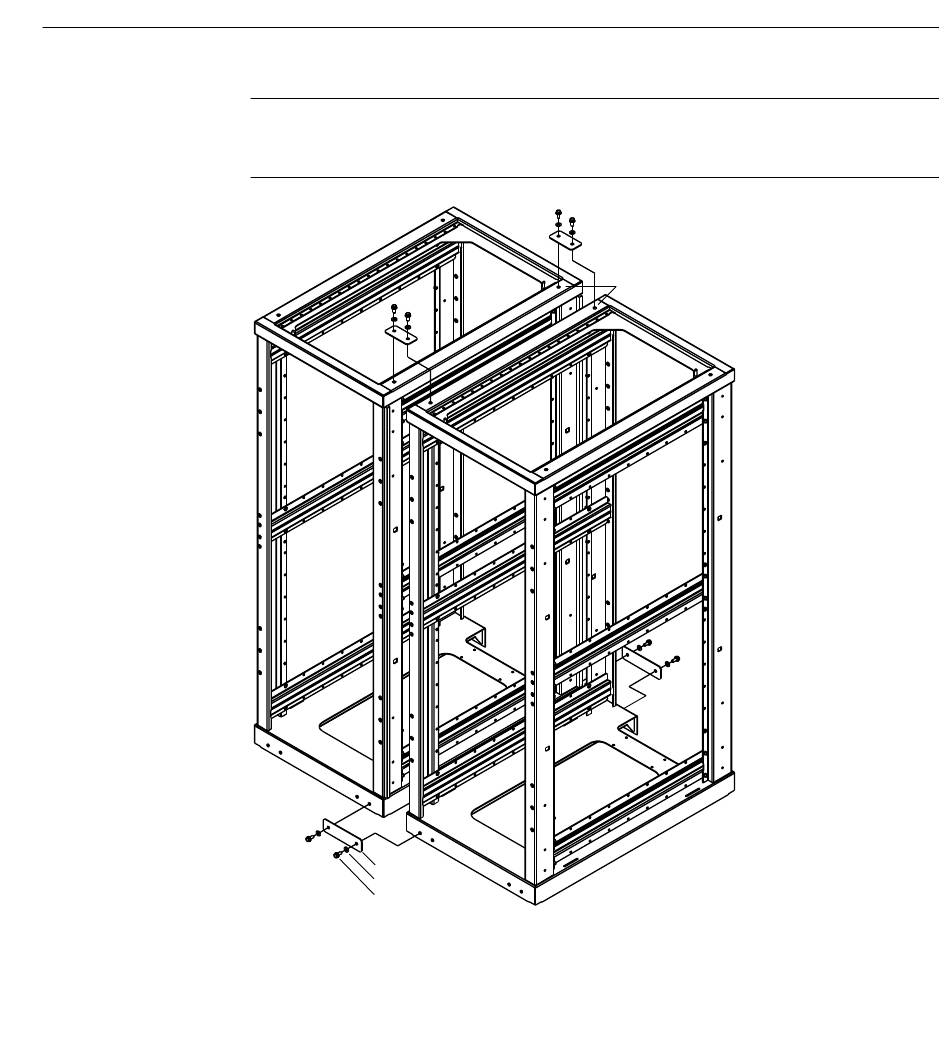

Figure 2-10 Joining Locations - Silicon Graphics Origin 300 User Manual

007-4498-002
Note: Tall racks have four threaded holes that are located at the bottom of the rack (refer
to Figure 2-8 on page 49). Use these holes to secure the seismic tie-downs. SGI does not
supply the seismic tie-downs.
Location 3
Location 1
Strap
Washer
Screw
Joining Locations
Figure 2-10
Installing Your System
Joining holes of
location 4
Location 2
