B: Connector Pinouts

L2 Controller

166
Table B-2 lists the non-proprietary connectors that are located on the rear panel of the L2
controller (refer to Figure B-2). The third column of the table indicates where you can find
the pin assignments for these connectors.
Table B-2 L2 Controller Connectors
Port
Console (serial port)
Modem (serial port)
Ethernet port
L1 ports (four ports)
PWR ICMB

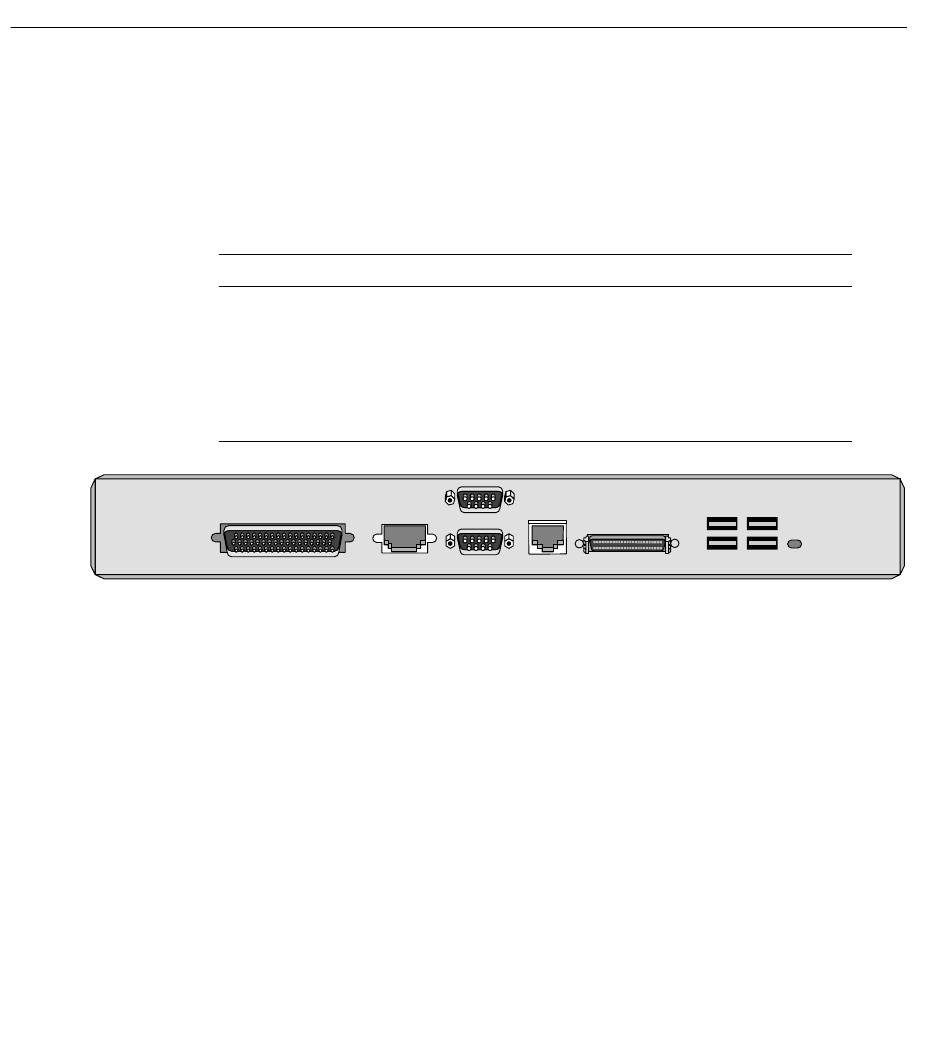

Figure B-2 Rear Panel of L2 Controller
Connector Pin Assignments
DB9 Refer to Figure B-6 on page 170
DB9 Refer to Figure B-6 on page 170
RJ-45 Refer to Figure B-7 on page 171
USB type A Refer to Figure B-10 on page 175 and
Table B-6 on page 175
Console
Modem Ethernet LCD Display
L2 System Controller
1 2
4
3
Fault
L1 Ports
007-4498-002
