007-4498-002
• The IRIX operating system can be recovered on some kernel double-bit errors.
• Automatic testing occurs after you power on the system and disables processors
and memory that fail these self-tests.
• Boot times are minimized.
• Remote console and maintenance activities are supported.
• System control network for system maintenance and monitoring is supported.
• LED values are readable via the system controller network.

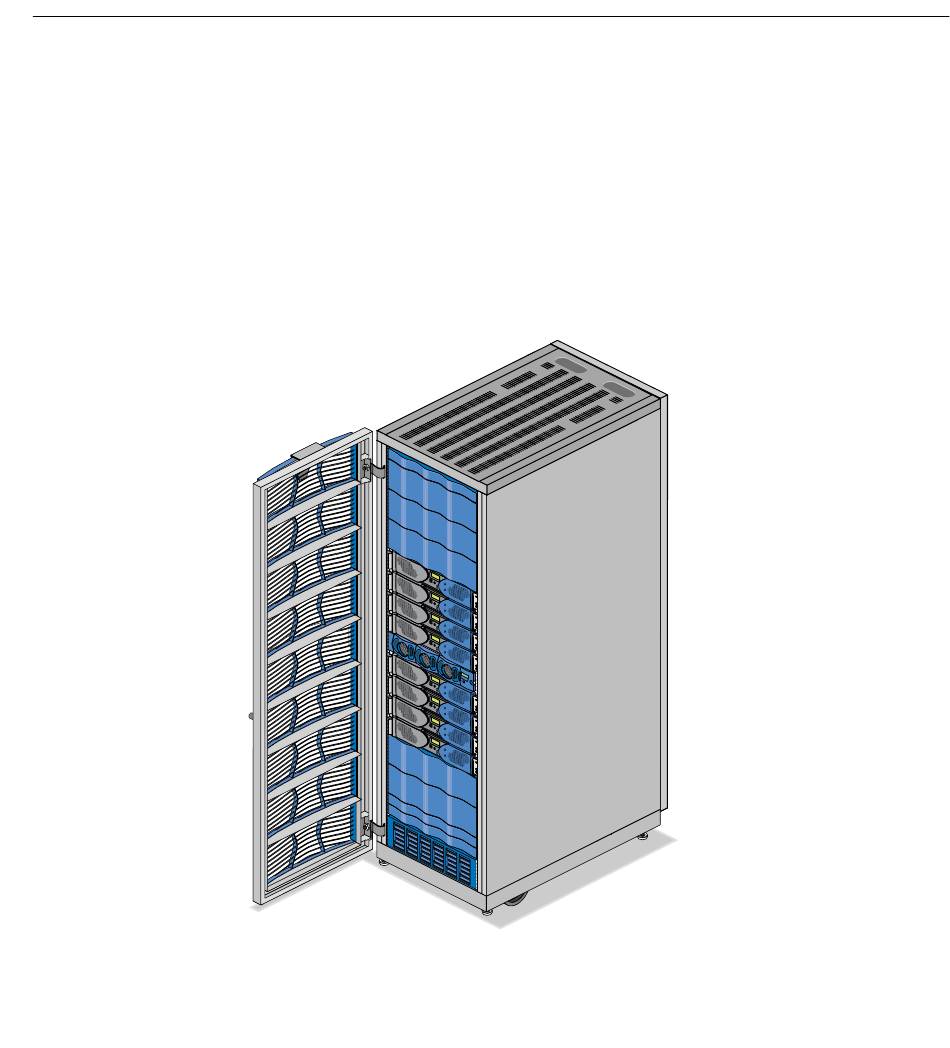

Figure 1-2 shows the Origin 300 system with NUMAlink module.
Figure 1-2 SGI Origin 300 System with NUMAlink Module
3
