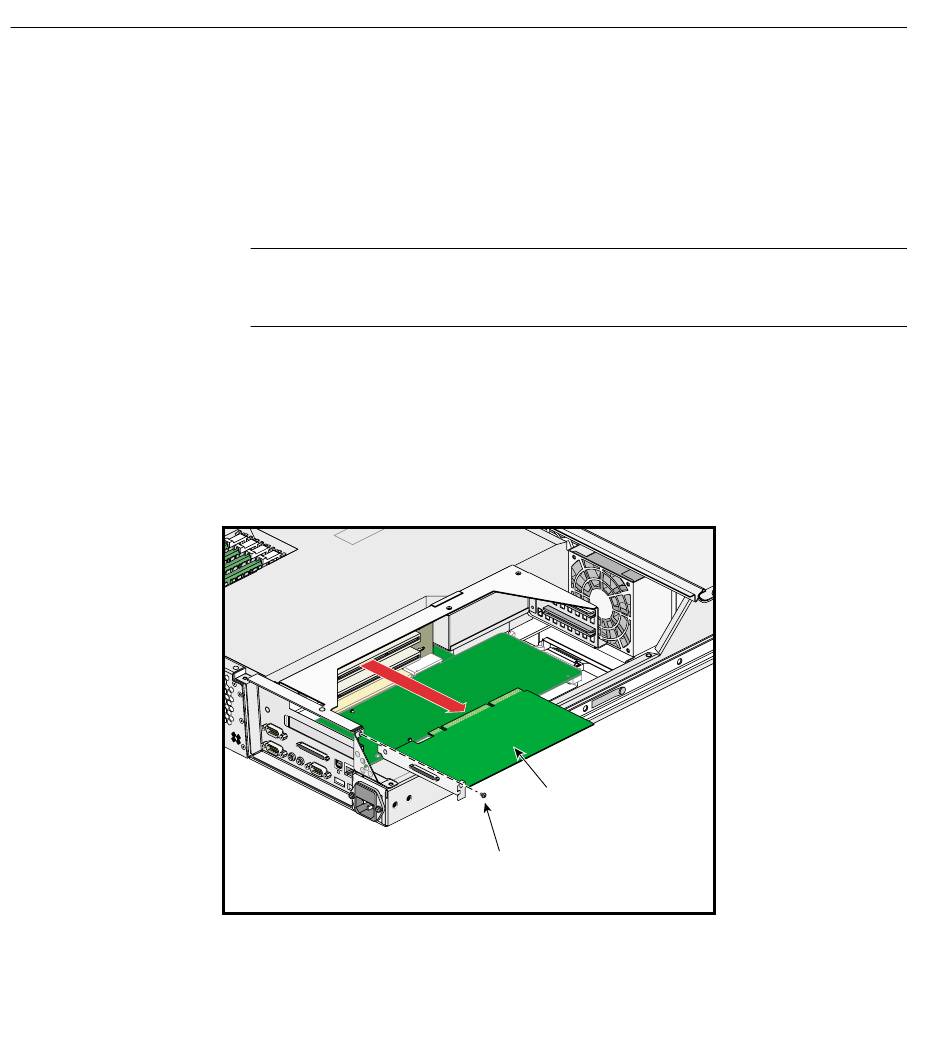

Figure 3-9 Removing A Pci Card - Silicon Graphics Origin 300 User Manual

3: System Operation
64
6. Release the retaining screw of the card as shown in Figure 3-9.
7. Gently pull the card straight out of the slot.
8. Install a new PCI card or a blanking plate as described in "Installing a PCI Card" on
page 60.
9. Attach the hinged cover and secure it to the base module with two screws.
Note: If you removed the base module from the rack, refer to "Installing a Base
Module in a Rack" on page 78 for instructions on how to install the base module in
the rack.
10. Press the safety latches on both sides of the base module and slide the base module
into the rack.
11. Install the two screws that secure the base module to the front rails of the rack.
12. Install all of the cables at the rear of the base module.
13. Power on the system. For instructions on how to power on the system, refer to
"Powering On" on page 80.
Removing a PCI Card
Figure 3-9
PCI card
Screw
