1: Introduction

Base System Components

4
The SGI Origin 300 system with NUMAlink module consists of the following base
components, as shown in Figure 1-3. This section provides a brief overview of the base
components; detailed information is provided in Appendix A.
One rack
Two to eight SGI Origin 300 base modules (also referred to as servers)
One NUMAlink module
One USB hub
One L2 controller
One or more power components (for example, power distribution unit (PDU),
power strip, and power bay module)
Note: The modules of the SGI Origin 300 system with NUMAlink module are not
interchangeable with the SGI Origin 3000 series bricks.
L2 controller
SGI Origin 300
base module
NUMAlink module
SGI Origin 300
base module

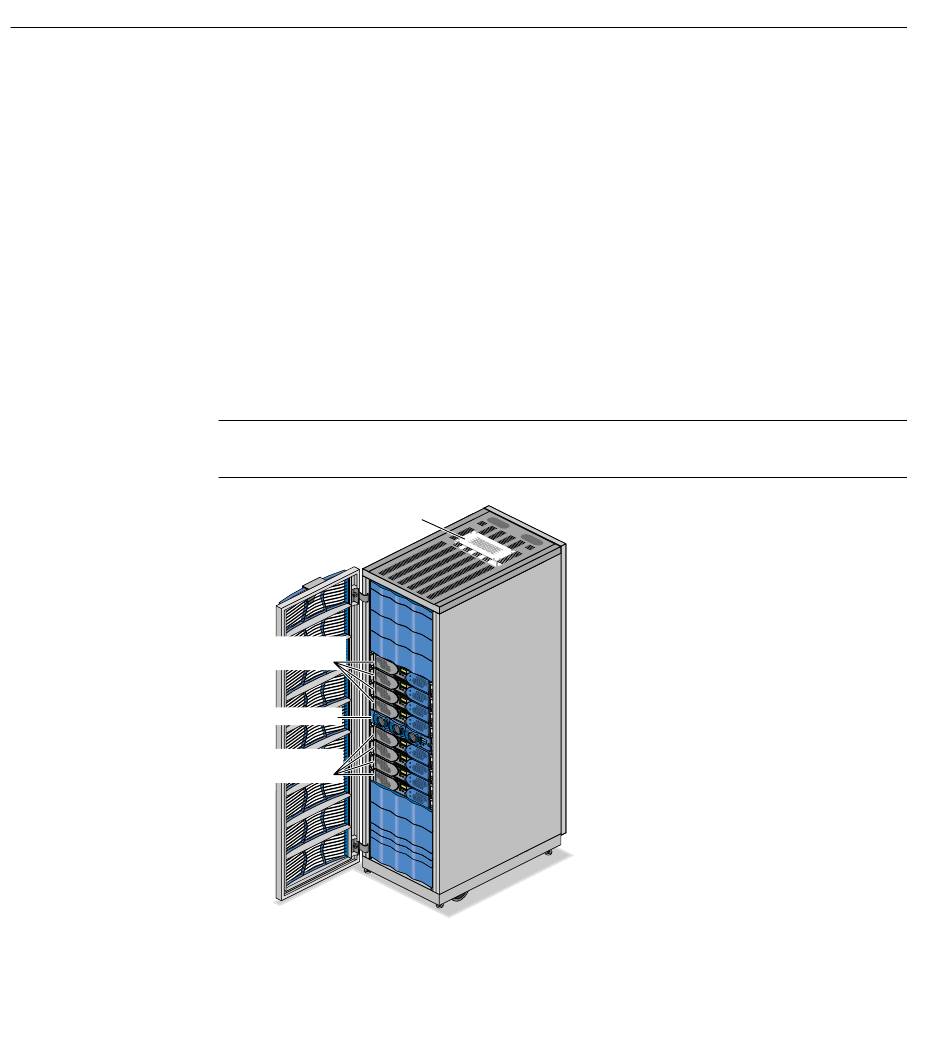

Figure 1-3
Base System Components
007-4498-002
