Figure 4-2 Tall-Rack Compute Configuration - Silicon Graphics Origin 300 User Manual

Origin 300 base modules
U28
U26
U24
U22
U18
U16
U14
U12
Uxx indicates the location of the module within a rack.
007-4498-002

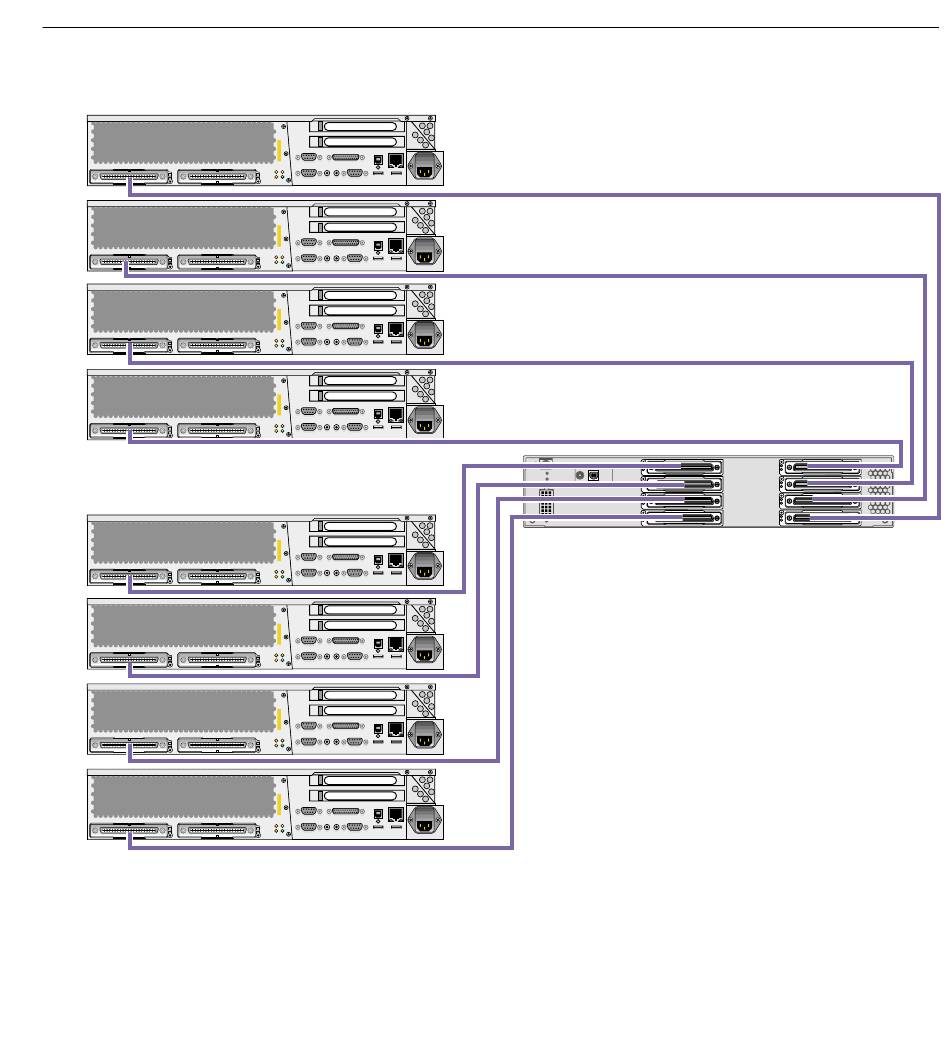

Figure 4-2 Tall-rack Compute Configuration
