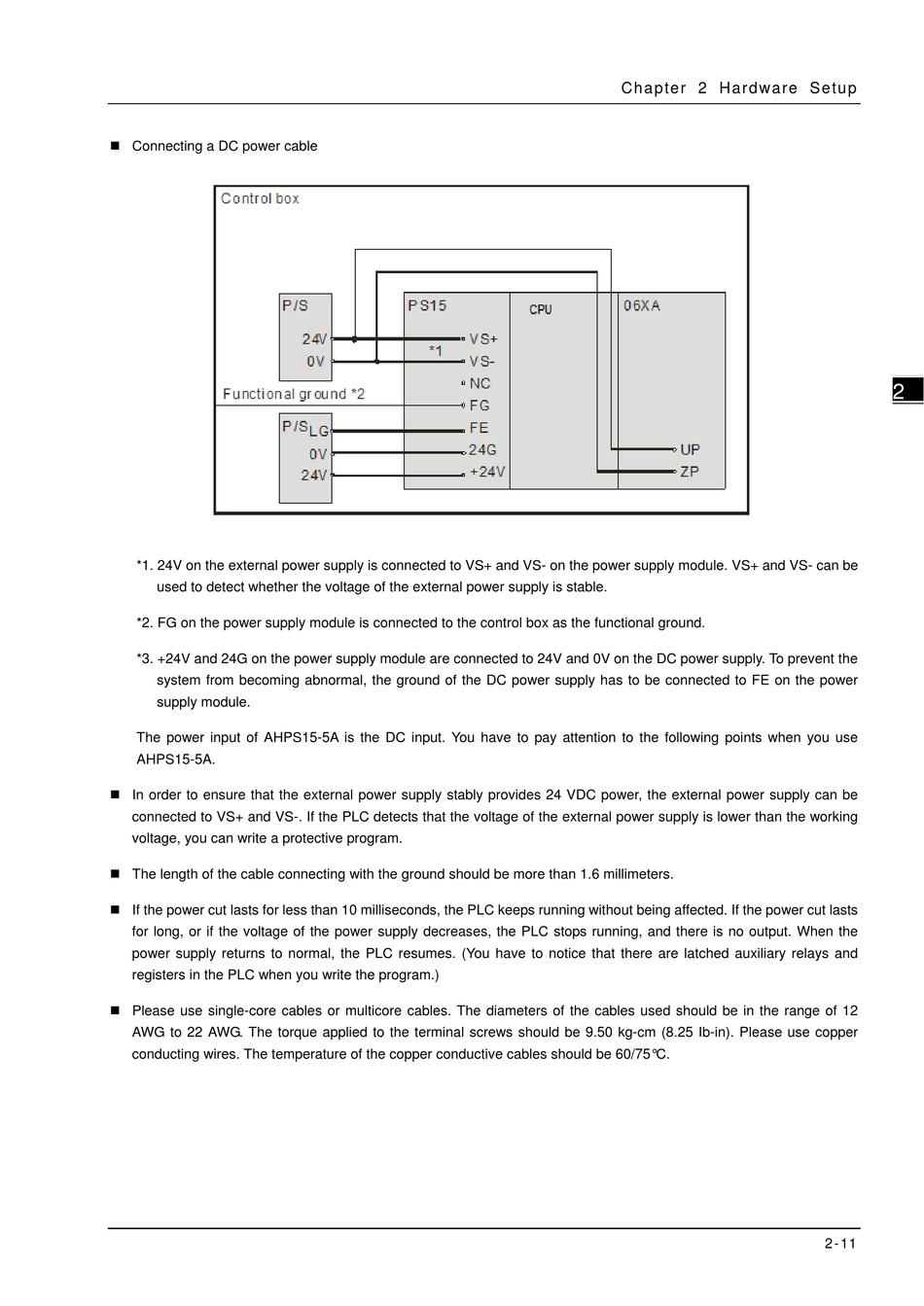

 Connecting a DC power cable
*1. 24V on the external power supply is connected to VS+ and VS- on the power supply module. VS+ and VS- can be
used to detect whether the voltage of the external power supply is stable.
*2. FG on the power supply module is connected to the control box as the functional ground.
*3. +24V and 24G on the power supply module are connected to 24V and 0V on the DC power supply. To prevent the
system from becoming abnormal, the ground of the DC power supply has to be connected to FE on the power
supply module.
The power input of AHPS15-5A is the DC input. You have to pay attention to the following points when you use
AHPS15-5A.
 In order to ensure that the external power supply stably provides 24 VDC power, the external power supply can be
connected to VS+ and VS-. If the PLC detects that the voltage of the external power supply is lower than the working
voltage, you can write a protective program.
 The length of the cable connecting with the ground should be more than 1.6 millimeters.
 If the power cut lasts for less than 10 milliseconds, the PLC keeps running without being affected. If the power cut lasts
for long, or if the voltage of the power supply decreases, the PLC stops running, and there is no output. When the
power supply returns to normal, the PLC resumes. (You have to notice that there are latched auxiliary relays and
registers in the PLC when you write the program.)
 Please use single-core cables or multicore cables. The diameters of the cables used should be in the range of 12
AWG to 22 AWG. The torque applied to the terminal screws should be 9.50 kg-cm (8.25 Ib-in). Please use copper
conducting wires. The temperature of the copper conductive cables should be 60/75°C.
