Installing the RCA
Connecting the cables
5.1.4.2

Connecting to the PRIMEPOWER (MR) server

Correspondingly, the cables are connected to serial port A on the backplane of
the PRIMEPOWER (MR) server using one of the preinstalled adapters.

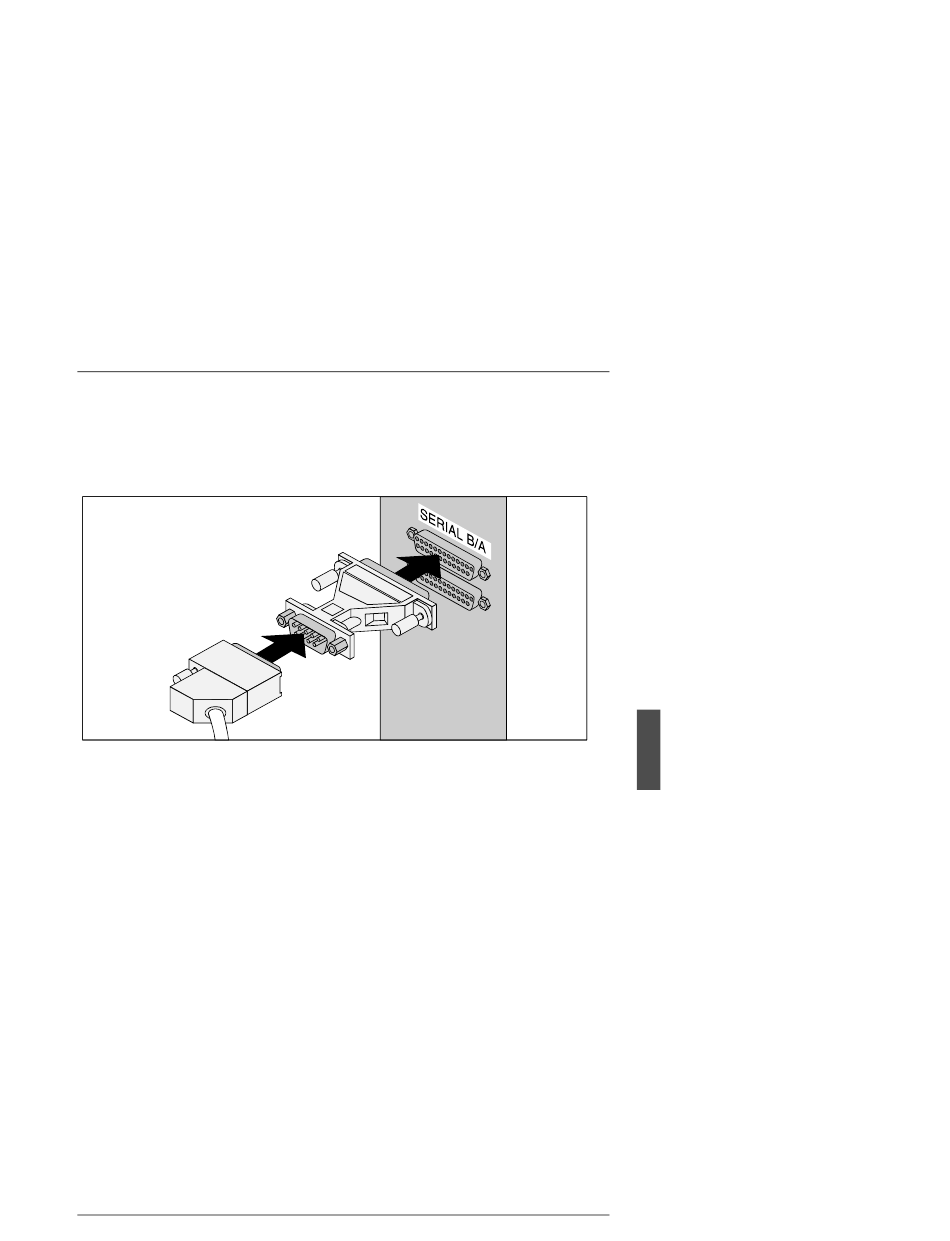

Figure 18: Connecting the RCA to the device backplane of a PRIMEPOWER (MR)
33
U41224-J-Z916-1-76
