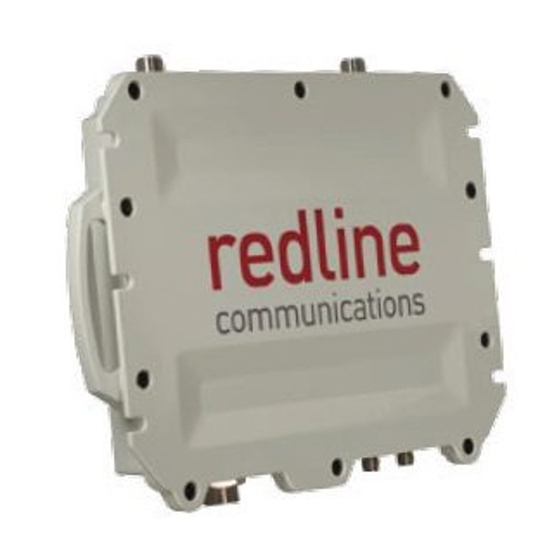

Redline RDL-3000 Series User Manual

Universal wireless transport
Hide thumbs Also See for RDL-3000 Series:
Table of Contents

Advertisement

Quick Links

Ellipse
RAS-Elite
LV / M / L
1
Important Notices ................................................................. 16
2
Functional Description ......................................................... 22
3
Web Interface ........................................................................ 40
4
CLI Interface ........................................................................ 116
5
Diagnostics & Troubleshooting ......................................... 145
6
Security ............................................................................... 159
7
Technical Reference ........................................................... 165
8
Deployment Information..................................................... 172
9
Connect-OWS / IWS Serial Gateway .................................. 232

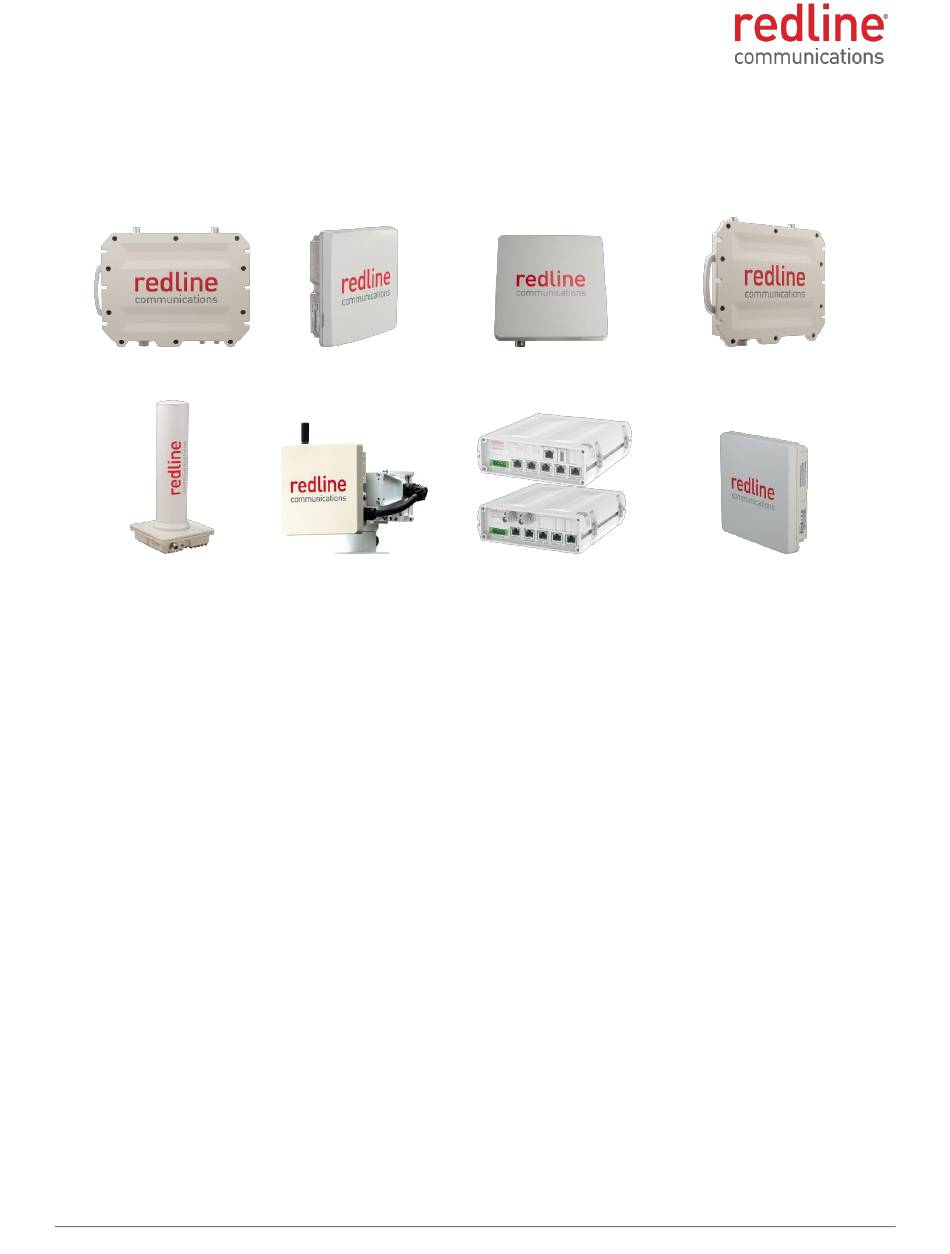

70-00158-03-00
RDL-3000 Family
Universal Wireless Transport™
Enterprise
RAS-Extend
Connect-OWS
User Manual
Software v3
Proprietary Redline Communications © 2015
eLTE-MT
Connect-IWS
Page
1
of 254
Edge
Connect-OW
April 17, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RDL-3000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redline RDL-3000 Series

Summary of Contents for Redline RDL-3000 Series

  • Page 1: Table Of Contents

    Web Interface ................ 40 CLI Interface ................ 116 Diagnostics & Troubleshooting ......... 145 Security ................159 Technical Reference ............165 Deployment Information............. 172 Connect-OWS / IWS Serial Gateway ........232 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 2 All rights reserved April 17, 2015. The information in this document is proprietary to Redline Communications Inc. This document may not in whole or in part be copied, reproduced, or reduced to any medium without prior consent, in writing, from Redline Communications Incorporated.
  • Page 3 Update region 9 to include 3675-3700 MHz. 20140319 Update RDL-3000 SU/Edge S/N prefix, add eLTE-MT Zone 2 units 20140326 2, 3 Add table of Redline products (2.1), Noise Level reading (3.4), Network Topology List (3.5). 20141006 General Coverage for Update 9 features. 20141126 3.5.1...
  • Page 4 VLAN Services ..................... 34 Transparent LAN Services (TLS) ..............37 PTP Mode ......................39 Web Interface ................ 40 System Menus ....................40 Network Connection ..................41 Dashboard Display ..................42 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 5 Network Topology ................... 87 Network Topology File Format ..............88 3.5.8 Network Topology File Formats............... 89 Text Version ....................89 XML Version ....................89 Provisioning Screens ..................91 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 6 119 genecckeys ....................120 generate ..................... 120 get ......................120 load ......................124 logout ......................125 new ......................125 ping ......................126 reboot ......................126 reset ......................126 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 7 Enabling AES ..................... 160 Wireless Authentication ................160 Out-of-Box Operation ................. 160 Enabling Authentication ................160 SSH for Secure CLI ..................161 Out-of-Box Operation ................. 161 Enabling SSH ..................... 162 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 8 Deployment in Canada .................. 197 Industry Canada Notices ................197 8.6.7 Antenna + Power Settings ................198 Operation in 4900 - 5800 MHz Bands ............199 8.7.1 Deployment in Brazil ..................199 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 9 Change Password ..................246 Change Password ..................246 Serial Gateway CLI Interface ................. 247 9.6.1 Quick Reference ................... 247 9.6.2 Command Set ....................248 apply ......................248 chgver ......................248 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 10 Table 1: Notice - Electrical Safety Specifications ............19 Table 2: Avis - Spécifications de sécurité électrique ............19 Table 3: Functional Desc. - Redline RDL-3000 Product Family Applications ....22 Table 4: Functional Desc.- System Identification ............23 Table 5: Web - Operation - Traffic Classification ............27 Table 6: Web - Operation - Wireless Rates ..............
  • Page 11 Table 90: 5200 MHz: RF Power & EIRP: 10 MHz Channel 10 dBi Antenna for FCC ... 207 Table 91: 5200 MHz: RF Power & EIRP: 10 MHz Channel 19 dBi Antenna for FCC ... 207 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254...
  • Page 12 Table 138: 5300 MHz: RF Power & EIRP: 10 MHz Chan. & 19 dBi Ant. for IC .... 224 Table 139: 5300 MHz: RF Power & EIRP: 10 MHz Chan. & 32 dBi Ant. for IC .... 224 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254...
  • Page 13 Fig. 18: Web - Dashboard Display ................. 42 Fig. 19: Web - General Information Screen ..............44 Fig. 20: Web - Sector Controller System Status Screen ..........46 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 14 Fig. 66: Web - Antenna Alignment Tool Screen ............113 Fig. 67: Web - Firmware Management Screen ............114 Fig. 68: Diag: - Saving Parameters in Non Volatile RAM ..........147 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 15 Fig. 83: Connect Gateway - Serial Port Settings Screen ..........243 Fig. 84: Connect Gateway - Firmware Management Screen ........244 Fig. 85: Connect Gateway - Firmware Management Screen ........246 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 16: Important Notices

    USER MANUAL Chapter 1 Important Notices Service & Safety General Warnings Redline recommendations for maximum safety include the following:  Do not operate microwave equipment without first having proper training or knowledge of microwave radio operation.  Do not operate the microwave equipment without an appropriate antenna port termination, or antenna.

  • Page 17: Warning Symbols

    - 57.0 VDC), which must be electrically isolated from any AC sources and reliably connected to Earth ground. Do not install Redline products near any type of power line. Should the antenna or related hardware come in contact with power lines, severe bodily...

  • Page 18: Radio Frequency Safety / Sécurité Des Fréquences Radio

    à la masse de la Terre. Ne pas installer les produits Redline près n'importe quel type de ligne électrique. Si votre antenne ou du matériel connexe entrer en contact avec des lignes électriques, des blessures graves ou la mort pourraient en résulter!

  • Page 19: Ul Information

    The system must be properly grounded to protect against power surges and accumulated static electricity. The user is responsible to install this device in accordance with the local electrical codes: correct installation procedures for grounding the unit, 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 20: Weee Product Return Process

    WEEE Product Return Process In accordance with the WEEE (Waste from Electrical and Electronic Equipment) directive, 2002/96/EC, Redline Communications equipment is marked with the logo shown below. The WEEE directive seeks to increase recycling and re-use of electrical and electronic equipment. This symbol indicates that this product should not be disposed of as part of the local municipal waste program.

  • Page 21: Service & Warranty Information

     Redline does not endorse or support the use of outdoor cable assemblies: i) not supplied by Redline, ii) third-party products that do not meet Redline's cable and connector assembly specifications, or iii) cables not installed and weatherproofed as specified in the RDL-3000 Installation Guidelines manual for each product model.

  • Page 22: Functional Description

    The RDL-3000 systems can operate in PMP or mode. To facilitate ease of use by the operator, a common user interface is provided across all RDL-3000 family platforms. Table 3: Functional Desc. - Redline RDL-3000 Product Family Applications eLTE-MT Standard...

  • Page 23: Table 4: Functional Desc.- System Identification

    5 GHz HAZ RDL-3000 eLTE MT 3.5 GHz HAZ RDL-3000 eLTE MT 2.5 GHz HAZ Enterprise RDL-3000 ENTERPRISE 5 GHz RDL-3000 RDL-3000 Enterprise ENTERPRISE 3.5 GHz RDL-3000 ENTERPRISE 2.5 GHz 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 24 RAS-Extend 2.5 GHz RAS-Extend RAS-Extend 2.1 GHz RAS-Extend 600 MHz RAS-Extend LV RAS-Extend LV 5 GHz RAS-Extend LV 3.5 GHz RAS-Extend RAS-Extend LV 2.5 GHz RAS-Extend LV 600 MHz 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 25: Pmp Mode

    Set traffic parameters for subscriber (unicast) traffic. Service Group: Define how packets are classified and processed at the sector controller Ethernet port. Set traffic parameters for broadcast/multicast groups. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 26: Wireless Links

    MAC address, or by a link template (STID). The Link definition sets the uplink and downlink rates (UBR). Fig. 3: Functional Desc. - Wireless Subscriber Links 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 27: Services And Service Groups

    Fig. 4: Functional Desc. - Services and Service Groups Services Services define classification (filtering) for ingress and egress packets at the subscriber Ethernet port, and set the uplink and downlink rates for unicast traffic associated with 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 28: Fig. 5: Functional Desc. - Services (Subscriber)

    When a 'Pass through' template is defined, non VLAN packets and VLAN packets not matching any defined VLAN ID, are forwarded without modification. When no 'Pass through' template is defined, unclassified packets are discarded. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 29: Service Groups

    This includes packets that do not match any defined VLAN ID or do not have a VLAN tag. Packets that do not match any classification are discarded. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 30: Setting Wireless Rates

    Unicast traffic with an unknown destination (all RDL-3000 systems maintain a forwarding table) is transmitted two modulation steps below the lowest rate currently in-use across all active Services. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 31: Pass Through Mode

    Only one Service Group (sector controller) may be set to 'Pass though' mode. Only one Service on each subscriber may be set to 'Pass though' mode. Unclassified packets are discarded when no 'Pass through' filter is defined. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 32: Subscriber-To-Subscriber Traffic

    (reflected) by the sector controller unmodified only if the 'SS to SS Broadcast/Multicast Enable' is enabled in the associated Service Group. Fig. 9: Functional Desc. - Subscriber-to-Subscriber Traffic 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 33: Vlan Tagged Management

    Fig. 10: Functional Desc. - VLAN Tagged Management Notes: For initial installation and setup, Redline recommends using 'Pass through' mode for the management Service Group and member Services. Connectivity issues with VLAN services may cause the management function to be unreachable and require a site visit and/or long reset operation to recover control of the unit.

  • Page 34: Pmp Configurations

    This configuration does not enforce a Service Group to have a Service on every subscriber. The private network may be isolated by disabling the Ethernet port (SC Ethernet Port Enable ) on the sector controller. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 35: Fig. 12: Functional Desc. - Vlan Services: Vlan Mapping

    Packets forwarded by subscriber A and B are re-tagged with VID=3, while packets forwarded by subscriber C are tagged with VID=777. Fig. 12: Functional Desc. - VLAN Services: VLAN Mapping 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 36: Fig. 13: Functional Desc. - Strict Vlan Tagging

    In this example, only identified VLAN traffic is forwarded across the wireless interface. All unclassified packets are discarded (no pass though Service or Service Group). Fig. 13: Functional Desc. - Strict VLAN Tagging 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 37: Transparent Lan Services (Tls)

    Network B or Network C have the outer tag removed when the packet is forwarded by Network B or Network C. Fig. 14: Functional Desc. - TLS - Extended TLS and Double Tagging 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 38: Fig. 15: Functional Desc. - Tagged Traffic - Port-By-Port Tagging

    A tagged port may be defined on the sector controller (service group) or subscriber (service). Tagged traffic from the sector controller exits the sector controller port double- tagged. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 39: Ptp Mode

    The remote unit (SS) can be managed over the air from the sector controller (SC), but the SC can only be managed using the local Ethernet port (security restriction). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 40: Web Interface

    Spectrum Sweep Spectrum Sweep Users Management Users Management Firmware Firmware Test Test Antenna Alignment Product Options Product Options Misc. Misc. Save All Save All Log Out Log Out 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 41: Network Connection

    When the dialog screen is displayed, enter the username and password to login. The factory default username is 'admin', and the default password is 'admin'. If the login was successful, the General Information screen is displayed in the Web browser. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 42: Dashboard Display

    Disabled be powered off or the link can not be established at the required modulation/coding. Wireless link has been established at the modulation/coding required for the requested UBR. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 43: Table 9: Web - Ethernet Led Indications

    Ethernet is not detected (e.g., Ethernet cable faulty / disconnected). Ethernet link is detected. Off: Ethernet port is 10 Mb/s. Ethernet port is 100 Mb/s. Off: Ethernet connection is half-duplex mode. Ethernet connection is full-duplex mode. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 44: Status Screens

    PMP SS: This unit is configured to operate as a subscriber. The unit monitors the selected RF channel(s) for poll messages from a sector controller. SC ID: (SC only) Unique identification number of this sector controller. Software Version: Firmware version in use. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 45: Ethernet

    IP Subnet Mask: The active network address mask for this unit. The network address mask may be assigned manually or by a DHCP server (see Configuration->System). Default Gateway Address: The active default router/gateway for this unit. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 46: System Status

    The remaining sectors are arranged sequentially counter-clockwise around the antenna. Note: The RAS-Elite fields are updated only when the hardware is present and enabled by the installed options key 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 47: Fig. 21: Web - Subscriber System Status Screen

    Status Code: Code indicating the status of the RDL-3000 system. Code '0000 0000' indicates normal operation. Refer to the troubleshooting section of this manual. Fig. 21: Web - Subscriber System Status Screen 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 48: Fig. 22: Web - Gps Statistics Screen

    Click on the blue GPS status (right of screen) text to launch the pop-up screen. Fig. 22: Web - GPS Statistics Screen Note: When enabled the RDL-3000 system uses the GPS signal to synchronize the system DCXO (variable frame mode). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 49: Fig. 23: Web - Gps Map Screen

    Backup Inactive - The peer is Backup and is in standby mode (RF disabled). Noise Level 1: (SC only) Noise floor measurement for RF port 1. Noise Level 2: (SC only) Noise floor measurement for RF port 2. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 50: Wireless Summary

    Tx: Number of packets transmitted on the Ethernet port. Discarded Packets: Total number of discarded Ethernet packets. Rx: Received packets discarded due to errors (e.g., CRC or buffer overflow). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 51: Subscriber Links Summary

    Retransmitted Wireless Packets: Total number of wireless packets that have been retransmitted over the wireless interface. DL: Total packets retransmitted over the wireless interface. UL: Total packets reported retransmitted by the remote end. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 52: Advanced Link Summary Statistics (Ras-Elite Ss Only)

    Lost Wireless Packets: Number of packets containing unrecoverable errors. Lost Frames: Number of frames containing unrecoverable errors. Dist: Calculated distance to the subscriber (km). Rst Sts: Click to reset the statistics for that wireless link. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 53: Subscriber Link Status

    Data Link Condition: Indicates if data can be transmitted across the wireless link. There are some conditions where the subscriber can be registered but data can not be 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 54: Wireless

    Lost: Total number of wireless packets discarded by this unit due to errors. Controls Refresh: Click to update displayed statistics counters. Reset: Click to reset displayed statistics counters. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 55: Services Summary (Ss Only)

    Rx Packets: Total packets successfully received over the wireless interface. Total does not include discarded or errored packets. DL: Number of packets received from the sector controller. UL: Number of packets the sector controller has received from this subscriber. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 56: Wsdb Status

    If required, this process is repeated once each hour. Web - Fig. 28: WSDB Status Screen 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 57: Wsdb Status

    The channel in-use is displayed in green. The Ellipse is not allowed to transmit on channels displayed in red. Channel selection is performed in the Wireless Configuration screen. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 58: System Messages (Log)

    1049 Radio Enabled, 1050 Radio Disabled, 1051 Static ARP added: %s %s, 1052 ID tables cleared: OK, 1053 GPS unit not detected, 1054 System Configuration not changed: OK, 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 59 Factory Data Corrupted use fallback values), 2029 Firmware configuration: ERROR, 2030 Invalid Options Key, 2032 Radio Calibration Checksum: ERROR, 2033 Radio Calibration Saving: ERROR, 2034 HTTP(User Mgm): Invalid password, 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 60 HTTP(User Mgm): Delete User \"%s\": ERROR, 2100 ID \"%s\"%d) PIR validation%d): ERROR, 2102 Long Reset Detected! System configuration restored! 2103 Synchronization signal not available! 2104 Frame synchronization lost! 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 61: Configuration Screens

    3.5.1 System System Click Configuration-> in the main menu to view and adjust the system identification and Ethernet settings. Fig. 29: Web - PMP SC/SS System Configuration Screen 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 62: System Identification

    At the end of 300 seconds, the IP address is disabled and the discovery function is restarted. This cycle repeats until a DHCP discovery is successful. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 63 Management 802.1Q VLAN ID [0...4095]: Enter the management VLAN ID. When Management VLAN Tagging Enable is selected, the system recognizes only management commands where the Ethernet packet has the matching VLAN ID. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 64: Fig. 31: Web - Vlan Tagged Management

    10Mbps HD - Operate at 10Base-T half-duplex only. 10Mbps FD - Operate at 10Base-T full duplex only. 100Mbps HD -.Operate at 100Base-T half-duplex only. 100Mbps FD - Operate at 100Base-T full duplex only. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 65: Advanced Ethernet Configuration

    Note: Authorization data is retrieved from the RADIUS server at 10-minute intervals. If a user's authorization is changed on the RADIUS server, the server may require up to ten minutes before the Redline radio is updated with the new information. Wireless LLDP packet filtering: Check this box to block LLDP packets from being transmitted over the wireless interface.

  • Page 66: Radius

    Enabled ( ): Use the RADIUS server for user authentication. Server IP Address: RADIUS server IP address. Server Auth-port: Listening port address on RADIUS server (default port is 1812). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 67: Table 11: Web - Required Freeradius Files

    Reply-Message = "Account has been disabled." Note: When using FreeRadius server, the following files on the server platform must be modified. See the RADIUS documentation for additional operating details. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 68: Snmp

    Apply: Click to activate the SNMP Community settings displayed on this screen. Apply & Save All: Click to activate and permanently save the SNMP Community settings on this screen. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 69: Snmp V2: Trap Destination Settings

    Community String: Community string associated with this trap listener. Change: Click to modify (or delete) the existing SNMP community string. Add: Click to create a new SNMP community string (max. 8 strings). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 70: Snmp V3: Trap Destination Settings

    User Name: User account associated with this trap listener. Change: Click Change to modify the existing SNMP community string. Add: Click Change to create a new SNMP user name (max. 8 strings). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 71: Snmp Trap Configuration

    SNMP Trap Configuration settings displayed on this screen. Note: Unsaved changes on the current screen are discarded when changing to another screen before clicking Apply or Apply & Save All. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 72: Wireless

    Wireless Configuration screen. Use these settings to configure the RDL-3000 wireless interface. Some fields are unique to the sector controller or subscriber. Fig. 40: Web - Wireless Configuration Screen -- Sector Controller 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 73: Basic Wireless Configuration

    When operating the subscriber, the operator can access the results of the last frequency scan. This includes each the channel, RSSI, and SNR for each discovered sector controller. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 74: Fig. 41: Web - Subscriber: Ras Advanced Stat. - Auto Scan Status

    Important -- EIRP Levels: Where required by local regulations, the maximum operational power per channel for a specific antenna must not exceed the maximum allowable EIRP levels, The RF output power settings must be professionally 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 75: Fig. 42: Web - Wireless Configuration Screen -- Subscriber

    MAC address is replaced with an STID name and STID password, allowing a wireless connection to be made to any remote unit presenting these credentials. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 76: Advanced Wireless Configuration

    SNMP trap messages are sent. The radio changes frequency and monitors the new channel for one minute. If radar signals are detected during the monitoring period, the transmitter switches to the 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 77 The sector controller provides opportunities for unregistered subscribers to contact the sector controller and attempt to establish a wireless data link. Note: Restricted to '1' in firmware versions 2.23/2.25 and higher. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 78 All Redline UHF sector antennas. ii) Sector antennas that do not include integrated GPS (check antenna datasheet). iii) Redline RAS B-100 series nomadic platform. Antenna Alignment Buzzer Enable: (SS only) Audible antenna alignment tool. Disabled ( ): The antenna alignment tool is disabled (no sound).

  • Page 79: Redundancy Configuration: Redundant Base Station (1+1) Option

    Timeouts[s]: Enter the period (seconds) to wait for a response from the peer unit. The primary and backup units issue periodic status requests to determine if: the peer is present; the operational setting (primary/backup); and the current status (active/inactive) Controls 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 80: Frequency Management Screen

    1. Enter the center frequency for each channel (earlier releases use channel edges). 2. When Begin and End frequencies are not identical, scanning is performed using: step size = current channel size 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 81: Fig. 45: Web - Auto Frequency Scan: Configuration Setting

    Note: The subscriber will be deregistered from the sector controller. To interrupt a scan in progress, disable and then enable the radio interface. This forces an immediate re-scan. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 82 - SC and remote unit wireless encryption settings are not identical. - SC and remote unit Cyclic Prefix settings are not identical. - SC and remote unit Channel Size settings are not identical. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 83: Wsdb Configuration/Control

    >WSDB Status). The RDL-3000 system is not allowed to transmit on any channels before registering with the WSDB database and obtaining a list of available channels or after the expiry time has elapsed. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 84: Registration Information

    Contact Postal Code: Enter the contact zip code. Contact Country: Enter the contact country. Contact Email: Enter the contact email address. Contact Phone: Enter the contact phone number. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 85: Security

    Important: To use encryption, a shared key must be entered or an ECDSA certificate must be loaded on the remote terminal. Enter the Shared Key or load the ECDSA certificates before enabling Auto Mode. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 86 Wireless authentication using Elliptic Curve Digital Signature Algorithm (ECDSA) is an optional feature. All Ellipse systems are pre-populated with signed trusted ECDSA keys. Certificates for these keys can be purchased directly from Redline. End-users can also load specific ECDSA certificate/key files.

  • Page 87: Network Topology

    Browse to select from a file directory. Import File: Click this button to upload the specified network topology file. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 88: Network Topology File Format

    The BSID (SCID) field is a unique identifier for a sector controller. This value is available on the General Information page of the sector controller Web interface. Fig. 50: Web - Sector controller Identification (SCID) 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 89: Network Topology File Formats

    <!ELEMENT antenna (height, gain, beamwidth?, tilt?, azimuth)> <!ELEMENT height (#PCDATA)> <!ELEMENT gain (#PCDATA)> <!ELEMENT beamwidth (#PCDATA)> <!ELEMENT tilt (#PCDATA)> <!ELEMENT azimuth (#PCDATA)> <!ELEMENT bsId (#PCDATA)> <!ELEMENT systemName (#PCDATA)> 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 90: Fig. 52: Web - Example Text File

    </height> <gain> </gain> <beamwidth> </beamwidth> <tilt> </tilt> <azimuth> </azimuth> </antenna> <bsId> 0xD2D2 </bsId> <systemName> UHF Sector - Redline </systemName> </SC> </table> Fig. 52: Web - Example Text File 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 91: Provisioning Screens

    Service has this VID added (Q-in-Q) before the packet is forwarded over the subscriber Ethernet port. DL Broadcast (Kbps): Broadcast traffic downlink rates. CIR: Requested minimum committed information rate for downlink bandwidth. OIR: Available downlink bandwidth (calculated). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 92 OIR is displayed as zero when the wireless link is down. iii) OIR will be equal to the PIR (Link or Service) when there is no traffic on the link. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254...

  • Page 93: Subscriber Link Configuration

    Create an STID (Subscriber Template ID) template on the sector controller and enter the wireless link settings to be used for this subscriber. Create a Service linked to this template to enable data exchange between the sector controller and subscriber. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 94: Fig. 55: Web - Stid Subscriber Template Configuration Screen

    The available burst rate selection is dependent on the radio mode of operation (MIMO-A or MIMO-A/MIMO-B). Adjustments to modulation and coding cause temporary changes to the PIR of all connections on that wireless link (dlrate and ulrate settings are modified 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 95 Enable field to trigger a frequency scan if the wireless uplink or downlink UBR drops below the Min. DL Burst Rate or Min UL Burst Rate settings. Use the Re-scan interval 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254...

  • Page 96: Fig. 56: Web - Scan Threshold: Threshold Timer Example

    The established link experiences fading or the RF becomes partially blocked: Rescan Interval Time + Channel Scan Time + Max Time to Link-Up 45 s + 20 s + 90 s = 155 (typical) 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 97: Table 14: Web - Rf Mode - Rf Port Settings For Wireless Link

    Links to AN-80i subscribers must be configured to use MIMO A mode (RF Port 1 or RF Port 2). Controls Apply: Click to accept and activate displayed settings. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 98: Service Groups

    UL Unicast (Kbps): Minimum rate for uplink unicast traffic. CIR: Operator requested bandwidth. OIR: Available bandwidth (calculated). DL Unicast (Kbps): Minimum rate for downlink unicast traffic. CIR: Operator requested bandwidth. OIR: Available bandwidth (calculated). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 99: Service Group Status

    Transmitted Packets: Total broadcast (or multicast) packets successfully transmitted over the wireless interface (does not include discarded or errored packets). Controls Reset: Click to reset displayed statistics counters. Refresh: Click to update displayed statistics counters. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 100: Service Group Configuration

    VLAN tag) receives a packet with no priority information. Advanced Service Group Configuration SC Ethernet Port Enable: Controls the function of the sector controller Ethernet port for group multicast traffic. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 101 Priority for 802.1 = [0-7]: Select the queue to assign each packet containing an 802.1p priority tag (0-7). Controls Apply: Click to accept and activate displayed settings. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 102: Subscriber Services

    Rx: Total received wireless packets. Tx: Total transmitted wireless packets. Controls Reset: Click to zero all displayed statistics counters. Refresh: Click to update displayed statistics counters. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 103: Subscriber Service Configuration

    Pass-through: Classify all packets that do not have a VLAN tag, or where the outermost VLAN ID tag does not match the VLAN ID for any tagged Group. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 104 802.1p prioritization. These settings should be changed only by advanced network administrators after evaluating the predicted effects on network and wireless traffic. Controls Apply: Click to accept and activate displayed settings. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 105: Utilities Screens

    Max2 (dBm): Maximum of all samples on RF Port 2. Bar Graph: Graph of average (dark green) and maximum (light green) results. Performing a Sweep Before you start: 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 106 When a potential clear channel is identified, adjust the settings to increase the resolution of the results:  Adjust the frequency range to the area of interest  Increase the sample size  Reduce the step size 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 107: Users Management

    Use these controls to change the settings for an existing account. User name: Select the existing user account to be modified. Group: Select the group to be associated with this username (optional). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 108: New User

    Confirm Password: Re-enter the new password. Admin User: Enter the name of the administrator authorizing this change. Admin Password: Enter the administrator password. Add: Click to save changes and activate the new account. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 109: Main Menu Access Permissions

    -> Link Subscriber Configure selected Link. Link Configuration Configuration -> Link Status Subscriber Display status of selected Link Status link. Service Display all Service Groups. Service Groups Groups 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 110 The following settings are not affected when using the Factory Defaults function: system name, location, details and contact, frequency list, SNMP configuration, Idtable. Refer to Diagnostics & Troubleshooting for a comprehensive list of parameters and default settings. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 111: Product Options

    (before clicking Activate), keys are saved only if both keys are valid. Important: You MUST reboot the RDL-3000 after activating an options key that changes the Region Code. Refer to section 8.1: Regional Codes on page 172. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 112: Options Keyed Features

    Auto Scan Disabled Tx Power -5 dBm max. Disabled Security Disabled Secure Management: Disabled HTTPS, SSH, SNMPv3 ECDSA Authentication Disabled Provisioning. No of Subscribers Max UL/DL UBR 3 Mbps 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 113: Antenna Alignment Screen

    If Wi-Fi service is available, the following URL may be used to access the web alignment page directly from a laptop computer or web-enabled handheld device. http:// [RDL-3000 IP Address] / usr / aa.html For example: http:// 192.168.20.25 / usr / aa.html 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 114: Firmware Management Screen

    Firmware File Name: Name of the firmware binary file (including file extension). FTP User Name: Enter the user account name (FTP only). FTP Password: Enter the user account password (FTP only). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 115 When the transfer has completed successfully, click the Change Version button to select the firmware version to load on the next system reboot. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 116: Cli Interface

    View/modify the SNMP trap settings. spectrum Spectrum sweep commands. upgrade Upload a firmware binary image to the RDL-3000. user View/modify the user/password configuration. whoami Display login name for this Telnet session. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 117: Telnet Access

    Use the 'save config' command to permanently save changes to the static entries in the ARP table. Static entries loaded at boot time are recorded in the RDL-3000 system log. arp <add> <del> <print> add <Host> <MAC> 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 118: Chgver

    <filename> File name must be of the following format: dsa_key_<mac>.pem DSA key used for SSH. rsa_key_<mac>.pem RSA Key used for SSH. ssl_cert_<mac>.pem SSL Certificate. ssl_key_<mac>.pem SSL Key. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 119: Disable

    Delete a frequency validation range idx - Frequency validation range index. Use 'print' to display IDs. exit Exit from the current mode (also CTRL-Z). print list of frequency ranges. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 120: Genecckeys

    Current CIR Subscription Ratio %. dldpkt Number of downlink discarded packets. dloir <id> Get the downlink offered information rate for the service. dlrpkt Number of downlink Rx packets. dltpkt Downlink Tx packets. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 121 Downlink RSSI for RF port 1. In MIMO-A mode, this is always the value of the active RF port. ldlrssi2 Downlink RSSI for RF port 2. In MIMO-A mode, this is always the value of the active RF port. ldlsnr 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 122 Uplink SINADR for RF port 1. In MIMO-A mode, this is always the value of the active RF port. lulsnr2 Uplink SINADR for RF port 2. In MIMO-A mode, this is always the value of the active RF port. luptime Link up-time. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 123 Internal temperature of the radio. txpower Current Tx power setting. uldpkt Uplink discarded packets. uloir <id> Get the uplink Offered Information Rate (OIR) for the service. ulrpkt Uplink Rx packets. ultpkt 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 124: Load

    Load a key or certificate file from FTP server. The file is saved in non volatile RAM area. A reboot is required to activate changes to security data. The filename must be one of the following: dsa_key_<mac>.pem DSA key used for SSH. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 125: Logout

    Groups, and Services created using CLI (manually or using 'load script') do not appear on the Web interface until they are set to 'enabled'. new <conn> <group> <link> <service> 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 126: Ping

    - Specify an ID to reset statistics only for that Service Group, Service, or Link. Default is to reset all statistics. save Use the save command to copy edited parameter settings into non-volatile memory. save [option] <Enter> 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 127: Script

    <0-n> Set the operating mode for the RAS-Elite antenna. RAS-Elite antenna automatically scans 360° in azimuth to locate signals from Redline sector controllers. Refer to the 'lautoscan'. 1-n: Manually set the RAS-Elite antenna beam to the specified sector. The center of sector '1' is marked on the antenna.
  • Page 128 Set a Service Group to this Service. id - Service ID number. gid - Service Group ID number. conlid <id> <lid> Set a Link to this Service connection. id - Service ID number. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 129 Section 7.1: Modifying CIR / PIR Settings for Service on STID Link Templates. dlminrate <id> <rate> Set the Link minimum uplink uncoded burst rate (UBR). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 130 Set the Ethernet speed and duplex. auto - Auto-negotiate 10hd - 10Base-T Half Duplex 10fd - 10Base-T Full Duplex 100hd - 100Base-T Half Duplex 100fd - 100Base-T Full Duplex 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 131 - Assign queue 0-3 (default is 0). grpdot1pena <id> <mode> Enable or disable 802.1p services for this Group. id - Group id number mode - Enter the mode: off - Disable on -Enable 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 132 Enable or disable the frequency link autoscan function. The Auto Frequency Scan (AFS) feature reduces registration time by limiting the subscriber channel search to a list of channels specified by the operator. off - Disable 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 133 Set the password for an STID link template (SC only). Passwords may be blank. <id> Link template ID. <stidpwd> template password may be up to fifteen (15) alphanumeric characters including a-z, A-Z, 0-9, dash (-), and underscore (_). ltimeautoscan <id> <interval> 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 134 - Specify the position to insert this options key (1 or 2). string - Options key (alphanumeric string). peermac <MAC> MAC address of the communicating RDL-3000. Required for wireless encryption (e.g., 00:05:5d:e0:5b:10 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 135 This unit is Primary and peer Backup SC is active. timeout: Enter the period (5 - 60 s) to wait when no response is received from the peer SC. regper <4 - 100> 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 136 - Service ID number. queue - Assign queue 0-3 (default is 0). srvdot1pena <id> <mode> Enable or disable 802.1p services for this Service (id). id - Group id number 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 137 <stidpwd> Set the password for the STID link template being used when registering with a sector controller (SU only). Passwords may be blank. <id> Link template ID 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 138 - The sector controller begins transmitting automatically; sending poll messages to locate the remote subscribers (pmpss). pmpss - Each subscriber monitors the selected channel(s) and responds only when polled by the sector controller. sysname <text 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 139 To modify PIR / CIR settings on services for STID links (templates), use only the approved methods described in the Section 7.1: Modifying CIR / PIR Settings for Service on STID Link Templates. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 140: Show

    <off | on> Enable or disable authentication. off - Allow network registrations without authentication. on - Require authentication using X.509 certificates. show Use the show command to display system statistics. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 141: Snmpcommunity

    <add> <clearall> <default> <del> <print> add <name> <rights> Add a new SNMP community to the SNMP community table. The index value is assigned automatically. Up to eight community names can be entered. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 142: Snmptrap

    Index of the SNMP trap to be deleted (use 'print' command to display ids). linkupdown Trap indicates when the wireless Link is lost and recovered. Off - Enable link up/down trap. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 143: Spectrum

    (_), Passwords may be 8 to 15 alpha-numeric characters including a- z, A-Z, 0-9, dash (-), and underscore (_). The operator must confirm their own password and a password for the new account. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 144: Whoami

    Delete a user account. username Account to be deleted. print Display a list of user accounts. whoami Use the whoami command to display the username of the current Telnet session. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 145: Diagnostics & Troubleshooting

    This section provides basic diagnostic and troubleshooting procedures. If the system can not be restored to normal operation using the procedures in this section, contact the local Redline representative for assistance. Include the model name and serial number of the system in all communications.

  • Page 146: Status Code Definitions

    0040 0000 0080 0000 0100 0000 0200 0000 0400 0000 0800 0000 1000 0000 29-31 Not used *Displayed error code value if this is the only error present. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 147: Working With System Parameters

    Saved configurations can be loaded directly from a file. Factory Default Load these settings to restore the RDL-3000 to a known state. Parameters Fig. 68: Diag: - Saving Parameters in Non Volatile RAM 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 148: Restore Factory Configuration

    Wait for the reboot to complete (10 seconds) and login to the RDL-3000 using the default IP address (192.168.25.2) and the default administrator username (admin) and password (admin). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 149: Factory Default Settings

    Wireless antgain Antenna Gain autoscan Autoscan chsize Channel Size Key = No change No Key = 10 MHz dfsaction DFS Action Based on Key: No Key = chgfreq 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 150 X.509 Authentication 1. SNMP v2 only in PMP mode. 2. All user-created accounts are deleted. 3. Refer to section 8.1: Regional Codes on page 172. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 151: Recover From Lost Password Or Ip

    If this is not successful, repeat steps 1 to 4 using a wait time of 70 to 90 seconds). If the operator does not login during this step, the RDL-3000 reboots automatically after 30 seconds and is operational after an additional 75 seconds. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 152: Long Reset - Restore Default Passwords Only

    Click Configuration->System to display the System Configuration screen. Click Utilities->Reboot to reboot the RDL-3000. Login to the RDL-3000 using the user-configured IP address and the default administrator username and password (admin/admin). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 153: Dhcp - Recover Lost Ip Address (Link-Local Ip)

    Segment / Calculation Segment /Calculation IP Address 169.254.247.26 = 247 = 26 169.254.245.9 = F5 = 245 XOR Seg XOR Seg XOR Seg XOR Seg 169.254.245.0 = 245 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 154 Using DHCP for remote units does not require DHCP to be enabled on the SC. When enabled, Management VLAN Tagging is enforced for Link Local IP address. A DHCP Renew function is available (Web/CLI) to generate an 'on-demand' DHCP renewal request message. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 155: Classification: Services And Service Groups

    Priority: Service Group default priority. group defined Tag: Unchanged --- AND --- Forward: All Service Group members. multicast or broadcast Rate: Downlink rate of this Service Group. address 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 156: Table 27: Diag. - Classification: Packet Received On Sc Wireless Interface

    Downlink rate for Service Group. --- AND --- Forward: Packet unmodified to the sector controller Ethernet port Notes If sector controller Ethernet port is enabled, If SS to SS Multicast enabled. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 157: Packet Classification At The Subscriber

    Add VLAN tag (outermost) for this Service (Q in Q). Forward: To subscriber Ethernet port. Member of Service Group type: Pass through Any type Forward packet unmodified to the subscriber Ethernet port 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 158: Vlan (802.1Q) Field Definitions

    Ethernet switches. VLAN Identifier (VID): 12-bit field specifying the VLAN. The VLAN value may be 1 to 4094. Value 0 indicates the 802.1Q tag is specifying only a priority. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 159: Security

    Chapter 6 Security Overview The Redline RDL-3000 family provides a high level of security and reliability. Security options include wireless authentication using X.509 certificates and wireless security using AES encryption, SSH, HTTPS (SSL), and SNMP v3. Security features are available based on product model and the installed options key...

  • Page 160: Aes Encryption

    Login to the wireless terminal CLI interface. b. Use the genecckeys command to generate the keys and the request file: genecckeys <tftp server ip> <cert-request-filename> For example: genecckeys 192.168.20.100 ecc_req_00-09-02-01-C1-9A.txt 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 161: Ssh For Secure Cli

    Generate ECDSA certificate. The certificate request must be processed by Redline. Transmit each certificate request file to your local Redline representative for processing. Processed files returned will use the naming convention ecc_resp_xx-xx-xx-xx-xx- xx.rsp where, xx-xx-xx-xx-xx-xx is the MAC address of the wireless terminal.

  • Page 162: Enabling Ssh

    CLI: set ssh on Save the configuration to activate changes. Verify the radio is accessible using SSH, and then use the CLI or Web interface to disable HTTP and Telnet. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 163: Https (Ssl) For Secure Web

    2048 bits  Key filename must be in the following format: dsa_key_<mac>.pem Use a TFTP server to load the key file into the radio (option 2 only). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 164 'https' or directly reference port 443. Example: To access the radio when HTTPS is enabled (default IP shown): http://192.168.25.2:443/ (Operator specifies port 443) https://192.168.25.2/ (Web browser defaults to port 443) 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 165: Technical Reference

    This completes the procedure. It is not required to reboot the sector controller. Subscribers using this updated STID link template will reconnect automatically using the new CIR / PIR settings following completion of the procedure. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 166: Modify Cir / Pir Settings In A Maintenance Window

    Table 32: Ref. -RDL-3000 Radio Types Radio Type Frequency Range (MHz) T072x 470 - 698 T212x 2000 - 2300 T202x 2300 - 2800 T352x 3300 - 3800 T502x 4940 - 5875 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 167: Uncoded Burst Rates

    49.7 71.1 99.5 142.2 256QAM 3/4 256QAM 5/6 11.1 15.5 22.2 31.1 44.4 62.2 88.8 124.4 177.7 256QAM 7/8 11.6 16.3 23.3 32.6 46.6 65.3 93.3 130.6 186.6 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 168: Frequency Scanning Modes

    If the link is active, but the uplink or downlink UBR level drops below the minimum UBR threshold for an period exceeding the Threshold Timer value, the RDL-3000 drops the wireless link and starts a new frequency scan. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 169: Auto Frequency Scan

    The following diagram illustrates the timing cycles used for the scan threshold trigger. Example: Settings: Rescan Interval is 45 s and minimum UL/DL UBR is 9 Mbps. 1. RDL-3000 is powered-on (startup requires ~45 s). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 170: Link Layer Discovery Protocol (Lldp) Support

    Fig. 71: Ref: Scan Threshold Configuration Settings Link Layer Discovery Protocol (LLDP) Support Software version 2.23/2.25 Update 9 and higher supports LLDP. Each Redline LLDP Data Unit (Frame) consists of the following TLVs: Table 38: Ref. – Redline LLDP Data Unit (Frame) TLVs...

  • Page 171: Typical Link Recovery Times

    Stickiness Timer + Channel Scan Time + Max Time to Link-Up 300 s + 20 s + 90 s = 410 s max. Note: The Rescan Interval Timer is not activated under these conditions. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 172: Deployment Information

    5472.5 to 5597.5 5652.5 to 5722.5 5475 5595 5655 5720 5480 5590 5660 5715 Notch 5600 5650 IC 5.8G 5725 to 5850 5727.5 to 5847.5 5730 5845 5735 5840 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 173 2690 2502.5 to 2687.5 2.5G 2505 2685 2510 5680 Region 11 Default = 2440 MHz Canada 2400 to 2483 2402.5 to 2481 2.4G 2405 2478.5 2410 2473.5 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 174 2032.00 to 2103.00 Region 21 Default = 2260 MHz EU 2.2-2.3G 2200 to 2290 2201.75 to 2288.25 2202.50 to 2287.50 2203.50 to 2286.50 2205.00 to 2285.00 2207.00 to 2283.00 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 175 3.45-3.7G 3651.75 to 3698.25 3452.5 to 3647.5 3652.5 to 3697.5 3453.5 to 3646.5 3653.5 to 3696.5 3455 3645 3655 3695 3457 3643 3657 3693 3460 3640 3660 3690 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 176: Regulatory Notice: Deployment In Mexico

    RF frequency setting is outside the allowed range(s) for that region. This system has been designed to operate with the Redline 17 dBi gain antenna operating with the maximum specified gain setting.

  • Page 177: 8.3 Operation In 480 - 690 Mhz Bands

    Operation of RDL-3000 wireless system requires an options key that is available exclusively from Redline. This key restricts device operation to the FCC 473-695 MHz band on TV channels 14 - 35 and 39 - 51. The professional installer and operator can not modify or otherwise circumvent these operational restrictions.

  • Page 178: Fcc Notices

    (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 179: Antenna + Power Settings

    Operation of the final product requires an options key that is available exclusively from Redline. This key restricts device operation to the Industry Canada band RSS-196 512 - 608 MHz and 614 - 698 MHz for Rural Remote Broadband Systems (RRBS) on TV channels 21 - 35 and 39 - 51.

  • Page 180: Industry Canada Notices

    Pour satisfaire les exigences d’IC en ce qui a trait aux expositions aux RF pour RF dispositifs de transmission, les distances suivantes doit être maintenue entre l'antenne de ce dispositif et des personnes pendant le fonctionnement du dispositif: 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 181: Table 46: 470-698 Mhz Distances De Sécurité Recommandées Dans Canada

    Cet équipement est conforme à de RSS-196 pour systèmes à large bande en régions rurales éloignées (SLBRRE) fonctionnant dans la bande 512-698 MHz (canaux de télévision 21 à 51). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 182: Antenna + Power Settings

    21.95 24.88 35.88 *If the antenna used exceeds maximum specified, the power settings must be reduced by the same amount in dB that the gain exceeds maximum allowed. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 183: 8.4 Operation In 2305 - 2360 & 2400 - 2483.5 Mhz Bands

    8.4 Operation in 2305 - 2360 & 2400 - 2483.5 MHz Bands Operation of the wireless system requires a software 'key' that is available exclusively from Redline. When required by the regional regulatory statutes where the wireless system is being deployed, the software key restricts device operation to IC 2305-2320 MHz and 2345-2360 MHz bands which is subject to licensing or the 2400-2483.5 MHz...

  • Page 184: Deployment In Canada

    To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropic radiated power (EIRP) is not more than that required for successful communication. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 185: Table 51: 2305-2360 Mhz Distances De Sécurité Recommandées Dans Canada

    Pour réduire le potentiel d’interférence radio sur d’autres utilisateurs, le type d’antenne et son gain doivent être choisies tel que la Puissance Isotrope Rayonnée Equivalente (PIRE) ne dépasse pas le niveau nécessaire pour une communication efficace. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 186: Antenna + Power Settings

    15.00 47.11 63.00 15.89 2308 29.38 29.28 32.34 15.00 47.34 63.00 15.66 2312.5 23.21 24.19 26.74 15.00 41.74 63.00 21.26 2317 17.19 15.28 19.35 15.00 34.35 63.00 28.65 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 187: Table 54: 2305-2320 Mhz: Rf Power & Eirp: 5 Mhz Chan. & 16 Dbi Ant. For Ic

    17.00 49.11 63.00 13.89 2308 29.38 29.28 32.34 17.00 49.34 63.00 13.66 2312.5 23.21 24.19 26.74 17.00 43.74 63.00 19.26 2317 17.19 15.28 19.35 17.00 36.35 63.00 26.65 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 188: Table 56: 2305-2320 Mhz: Rf Power & Eirp: 10 Mhz Chan. & 14.5 Dbi Ant. For Ic

    16.00 31.60 63.00 31.40 2355 19.4 19.92 22.68 16.00 38.68 63.00 24.32 2310 19.9 18.59 22.29 16.00 38.29 63.00 24.71 2314.5 13.4 12.82 16.10 16.00 32.10 63.00 30.90 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 189: Table 59: 2305-2320 Mhz: Rf Power & Eirp: 10 Mhz Chan. & 17 Dbi Ant. For Ic

    (dBi) (dBm) (dB) (dBm) (dBm) power (dBm) 2410 17.6 17.7 20.66 14.5 35.16 0.84 2442 17.7 17.8 20.76 14.5 35.26 0.74 2473.5 17.7 17.8 20.76 14.5 35.26 0.74 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 190: Table 65: 2400-2483.5 Mhz: Rf Power & Eirp: 20 Mhz Chan. & 17 Dbi Ant. For Ic

    RF-2 output gain (dBi) (dBm) (dB) (dBm) (dBm) power (dBm) 2410 15.7 15.8 18.76 35.76 0.24 2442 15.7 15.8 18.76 35.76 0.24 2473.5 15.8 15.9 18.86 35.86 0.14 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 191: 8.5 Operation In 3450 - 3700 Mhz Bands

    8.6.1 Frequency Bands Operation of the final product requires an FCC specific software 'key' that is available exclusively from Redline. This key restricts device operation to the FCC 3675-3700 MHz band. The professional installer and operator can not modify or otherwise circumvent these operational restrictions.

  • Page 192: 8.6.4 Operation In The 3675-3700 Mhz Band

    14.26 QPSK 3685 22.63 14.37 3697.5 22.59 14.41 3677.5 22.82 14.18 16-QAM 3685 22.59 14.41 3697.5 22.47 14.53 3677.5 22.73 14.27 64-QAM 3685 22.52 14.48 3697.5 22.48 14.52 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 193: Table 68: Fcc - Rdl-3000 Eirp Psd Measurement Results For 5 Mhz

    12.34 3685 17.53 12.47 QPSK 3697.5 17.42 12.58 3677.5 17.23 12.77 3685 17.28 12.72 16-QAM 3697.5 17.31 12.69 3677.5 17.68 12.32 3685 17.34 12.66 64-QAM 3697.5 17.36 12.64 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 194: Table 69: Fcc - Rdl-3000 Eirp Measurement Results For 10 Mhz

    17.63 3685 22.36 17.64 QPSK 3695 22.07 17.93 3680 22.42 17.58 3685 22.33 17.67 16-QAM 3695 22.00 18.00 3680 22.52 17.48 3685 22.41 17.59 64-QAM 3695 22.12 17.88 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 195: Table 70: Fcc - Rdl-3000 Eirp Psd Measurement Results For 10 Mhz

    15.50 3685 14.55 15.45 QPSK 3695 14.09 15.91 3680 14.54 15.46 3685 14.49 15.51 16-QAM 3695 14.09 15.91 3680 14.6 15.40 3685 14.63 15.37 64-QAM 3695 14.1 15.90 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 196: 8.6.5 Fcc Notices

    (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Information to Users @ FCC 15.21: Warning: Changes modifications expressly approved Redline Communications could void the user’s authority to operate the equipment. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 197: 8.6.6 Deployment In Canada

    1. The 3650-3700 MHz frequency range is a licensed band in the USA and operators must have a valid spectrum license to operate RDL-3000 equipment using this band. 2. The RDL-3000 requires a Redline FCC-specific options key that is mandatory for operation within the USA. This options key enforces the FCC approved operating range of 3650-3700 MHz.

  • Page 198: Antenna + Power Settings

    Table 74: 3650-3675 MHz Power & EIRP Results for Canada Bandwidth (MHz) Tx Power Setting (dBm) Allowed Maximum Antenna Gain (dBi) 3.5 MHz 5 MHz 10.5 7 MHz 10 MHz 14 MHz 20 MHz 16.5 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 199: 8.7 Operation In 4900 - 5800 Mhz Bands

    8.7 Operation in 4900 - 5800 MHz Bands Operation of the wireless system requires a software 'key' that is available exclusively from Redline. When required by the regional regulatory statutes where the wireless system is being deployed, the software key restricts device operation to the FCC/IC 4940-4990 MHz, 5250-5350 MHz, 5470-5725 MHz, or 5725-5850 MHz band.
  • Page 200 This feature enforces compliance to regional regulatory statutes. Each options key is keyed to the unique MAC address of an RDL-3000 radio platform. Options keys can be generated only by Redline and its authorized agents. End-users can not generate or modify options keys (to obtain or alter regional codes).

  • Page 201: Table 77: 4900-5875 Mhz Tdwr System Locations In Usa

    Redline sales order processing is also trained to verify that regional codes are consistent with the intended deployment location as documented in the sales order.

  • Page 202: Antenna + Power Settings

    If the antenna gain of the deployed system exceeds the allowed maximum for any Bandwidth/Frequency combination, the power setting must be reduced by the same amount (dB) that the antenna gain exceeds the allowed maximum. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 203: Table 78: 4900 Mhz: Rf Power & Eirp: 5 Mhz Chan. & 10 Dbi Ant. For Fcc

    20.77 21.00 0.23 32.00 52.77 53.00 0.23 64-QAM 4965.0 17.22 17.85 20.56 21.00 0.44 32.00 52.56 53.00 0.44 4987.5 17.17 17.98 20.60 21.00 0.40 32.00 52.60 53.00 0.40 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 204: Table 81: 4900 Mhz: Rf Power & Eirp: 10 Mhz Chan. & 10 Dbi Ant. For Fcc

    22.48 24.00 1.52 32.00 54.48 56.00 1.52 64-QAM 4965.0 19.81 19.94 22.89 24.00 1.11 32.00 54.89 56.00 1.11 4985.0 20.34 20.00 23.18 24.00 0.82 32.00 55.18 56.00 0.82 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 205: Table 84: 4900 Mhz: Rf Power & Eirp: 20 Mhz Chan. & 10 Dbi Ant. For Fcc

    23.43 27.00 3.57 32.00 55.43 59.00 3.57 64-QAM 4965.0 20.93 20.52 23.74 27.00 3.26 32.00 55.74 59.00 3.26 4980.0 21.08 21.14 24.12 27.00 2.88 32.00 56.12 59.00 2.88 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 206: Table 87: 5200 Mhz: Rf Power & Eirp: 5 Mhz Channel 10 Dbi Antenna For Fcc

    18.33 64-QAM 5200.0 -2.34 -3.16 0.28 8.00 7.72 27.50 27.78 36.00 8.22 5247.5 -2.53 -4.12 -0.24 8.00 8.24 27.50 27.26 36.00 8.74 Note: including 1.5 dB cable loss 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 207: Table 90: 5200 Mhz: Rf Power & Eirp: 10 Mhz Channel 10 Dbi Antenna For Fcc

    13.62 64-QAM 5200.0 0.67 0.28 3.49 8.00 4.51 27.50 30.99 36.00 5.01 5245.0 0.44 0.32 3.39 8.00 4.61 27.50 30.89 36.00 5.11 Note: including 1.5 dB cable loss 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 208: Table 93: 5200 Mhz: Rf Power & Eirp: 20 Mhz Channel 10 Dbi Antenna For Fcc

    11.63 64-QAM 5200.0 3.05 2.38 5.74 8.00 2.26 27.50 33.24 36.00 2.76 5240.0 3.67 3.21 6.46 8.00 1.54 27.50 33.96 36.00 2.04 Note: including 1.5 dB cable loss 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 209: Table 96: 5300 Mhz: Rf Power: 5 Mhz Chan. & 10 Dbi Antenna For Fcc

    -10.34 -8.30 2.04 5345.0 -14.38 -14.33 -11.34 -8.30 3.05 5252.5 -14.52 -14.13 -11.31 -8.30 3.01 64-QAM 5300.0 -13.51 -13.25 -10.37 -8.30 2.07 5345.0 -14.52 -14.34 -11.42 -8.30 3.12 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 210: Table 99: 5300 Mhz: Rf Power: 10 Mhz Chan. & 10 Dbi Ant. For Fcc

    -8.31 -5.32 2.99 5342.5 -11.33 -11.45 -8.38 -5.32 3.06 5255.0 -11.60 -11.30 -8.44 -5.32 3.12 64-QAM 5300.0 -11.51 -11.02 -8.25 -5.32 2.93 5342.5 -11.27 -11.47 -8.36 -5.32 3.04 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 211: Table 102: 5300 Mhz: Rf Power: 20 Mhz Chan. & 10 Dbi Ant. For Fcc

    -5.38 -2.31 3.07 5337.5 -8.02 -8.08 -5.04 -2.31 2.73 5260.0 -8.31 -8.20 -5.24 -2.31 2.94 64-QAM 5300.0 -8.67 -8.00 -5.31 -2.31 3.00 5337.5 -8.02 -8.08 -5.04 -2.31 2.73 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 212: Table 105: 5400 Mhz: Rf Power: 5 Mhz Chan. & 10 Dbi Ant. For Fcc

    -11.00 -8.35 2.65 5722.5 -13.01 -13.49 -10.23 -8.35 1.88 5472.5 -14.58 -14.80 -11.68 -8.35 3.32 64-QAM 5570.0 -13.68 -14.29 -10.96 -8.35 2.61 5722.5 -13.00 -13.46 -10.21 -8.35 1.86 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 213: Table 108: 5400 Mhz: Rf Power: 10 Mhz Chan. & 10 Dbi Ant. For Fcc

    -8.76 -5.37 3.39 5720.0 -11.10 -11.92 -8.48 -5.37 3.11 5475.0 -10.99 -11.81 -8.37 -5.37 3.00 64-QAM 5570.0 -11.60 -11.93 -8.75 -5.37 3.38 5720.0 -11.11 -11.74 -8.40 -5.37 3.03 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 214: Table 111: 5400 Mhz: Rf Power: 20 Mhz Chan. & 10 Dbi Ant. For Fcc

    -5.66 -2.34 3.32 5715.0 -8.14 -8.64 -5.37 -2.34 3.03 5480.0 -8.52 -8.25 -5.37 -2.34 3.03 64-QAM 5570.0 -8.43 -8.93 -5.66 -2.34 3.32 5715.0 -8.16 -8.58 -5.35 -2.34 3.01 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 215: Table 114: 5800 Mhz: Rf Power & Eirp: 5 Mhz Chan. & 10 Dbi Ant. For Fcc

    3.99 4.00 0.01 32.00 35.99 36.00 0.01 5790.0 0.75 0.92 3.85 4.00 0.15 32.00 35.85 36.00 0.15 64-QAM 5847.5 0.51 0.93 3.74 4.00 0.26 32.00 35.74 36.00 0.26 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 216: Table 117: 5800 Mhz: Rf Power & Eirp: 10 Mhz Chan. & 10 Dbi Ant. For Fcc

    3.82 4.00 0.18 32.00 35.82 36.00 0.18 64-QAM 5790.0 0.77 1.06 3.93 4.00 0.07 32.00 35.93 36.00 0.07 5845.0 0.47 0.90 3.70 4.00 0.30 32.00 35.70 36.00 0.30 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 217: Table 120: 5800 Mhz: Rf Power & Eirp: 20 Mhz Chan. & 10 Dbi Ant. For Fcc

    3.99 4.00 0.01 32.00 35.99 36.00 0.01 64-QAM 5790.0 1.11 0.37 3.77 4.00 0.23 32.00 35.77 36.00 0.23 5840.0 0.69 0.38 3.55 4.00 0.45 32.00 35.55 36.00 0.45 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 218: Deployment In Canada

    Pour satisfaire les exigences d’IC en ce qui a trait aux expositions aux RF pour RF dispositifs de transmission, les distances suivantes doit être maintenue entre l'antenne de ce dispositif et des personnes pendant le fonctionnement du dispositif: 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 219: Antenna + Power Settings

    If the antenna gain of the deployed system exceeds the allowed maximum for any Bandwidth/Frequency combination, the power setting must be reduced by the same amount (dB) that the antenna gain exceeds the allowed maximum. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 220: Table 125: 4900 Mhz: Rf Power & Eirp: 5 Mhz Chan. & 10 Dbi Ant. For Ic

    19.49 21.00 1.51 32.00 51.49 53.00 1.51 64-QAM 4965.0 16.64 16.81 19.74 21.00 1.26 32.00 51.74 53.00 1.26 4987.5 17.44 17.08 20.27 21.00 0.73 32.00 52.27 53.00 0.73 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 221: Table 128: 4900 Mhz: Rf Power & Eirp: 10 Mhz Chan. & 10 Dbi Ant. For Ic

    23.34 24.00 0.66 32.00 55.34 56.00 0.66 64-QAM 4965.0 19.80 20.82 23.35 24.00 0.65 32.00 55.35 56.00 0.65 4985.0 20.20 20.25 23.24 24.00 0.76 32.00 55.24 56.00 0.76 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 222: Table 131: 4900 Mhz: Rf Power & Eirp: 20 Mhz Chan. & 10 Dbi Ant. For Ic

    26.92 27.00 0.08 32.00 58.92 59.00 0.08 64-QAM 4965.0 23.99 23.92 26.97 27.00 0.03 32.00 58.97 59.00 0.03 4980.0 23.98 23.87 26.94 27.00 0.06 32.00 58.94 59.00 0.06 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 223: Table 134: 5300 Mhz: Rf Power & Eirp: 5 Mhz Chan. & 10 Dbi Ant. For Ic

    -9.01 17.17 26.18 32.00 22.99 23.17 0.18 64-QAM 5300.0 -11.57 -12.66 -9.07 17.17 26.24 32.00 22.93 23.17 0.24 5345.0 -11.51 -12.65 -9.03 17.17 26.20 32.00 22.97 23.17 0.20 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 224: Table 137: 5300 Mhz: Rf Power & Eirp: 10 Mhz Chan. & 10 Dbi Ant. For Ic

    -9.06 20.18 29.24 32.00 22.94 26.18 3.24 64-QAM 5300.0 -11.66 -12.43 -9.02 20.18 29.19 32.00 22.98 26.18 3.19 5342.5 -12.49 -12.62 -9.54 20.18 29.72 32.00 22.46 26.18 3.72 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 225: Table 140: 5300 Mhz: Rf Power & Eirp: 20 Mhz Chan. & 10 Dbi Ant. For Ic

    -9.10 23.16 32.26 32.00 22.90 29.16 6.26 64-QAM 5300.0 -12.21 -11.84 -9.01 23.16 32.17 32.00 22.99 29.16 6.17 5337.5 -12.19 -11.96 -9.06 23.16 32.22 32.00 22.94 29.16 6.22 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 226: Table 143: 5400 Mhz: Rf Power & Eirp: 5 Mhz Chan. & 10 Dbi Ant. For Ic

    5472.5 -11.92 -12.13 -9.01 17.15 26.16 22.99 23.15 0.16 64-QAM 5570 -11.77 -12.3 -9.02 17.15 26.17 22.98 23.15 0.17 5722.5 -12.22 -12.49 -9.34 17.15 26.49 22.66 23.15 0.49 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 227: Table 146: 5400 Mhz: Rf Power & Eirp: 10 Mhz Chan. & 10 Dbi Ant. For Ic

    -5.96 20.17 26.13 32.00 26.04 26.17 0.13 64-QAM 5570.0 -8.66 -9.18 -5.90 20.17 26.07 32.00 26.10 26.17 0.07 5720.0 -8.08 -9.84 -5.86 20.17 26.03 32.00 26.14 26.17 0.03 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 228: Table 149: 5400 Mhz: Rf Power & Eirp: 20 Mhz Chan. & 10 Dbi Ant. For Ic

    -3.25 23.16 26.41 32.00 28.75 29.16 0.41 64-QAM 5570.0 -6.39 -5.92 -3.14 23.16 26.30 32.00 28.86 29.16 0.30 5715.0 -6.11 -5.63 -2.85 23.16 26.01 32.00 29.15 29.16 0.01 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 229: Table 152: 5800 Mhz: Rf Power & Eirp: 5 Mhz Chan. & 10 Dbi Ant. For Ic

    3.99 4.00 0.01 32.00 35.99 36.00 0.01 64-QAM 5790.0 0.75 0.92 3.85 4.00 0.15 32.00 35.85 36.00 0.15 5847.5 0.51 0.93 3.74 4.00 0.26 32.00 35.74 36.00 0.26 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 230: Table 155: 5800 Mhz: Rf Power & Eirp: 10 Mhz Chan. & 10 Dbi Ant. For Ic

    3.82 4.00 0.18 32.00 35.82 36.00 0.18 64-QAM 5790.0 0.77 1.06 3.93 4.00 0.07 32.00 35.93 36.00 0.07 5845.0 0.47 0.90 3.70 4.00 0.30 32.00 35.70 36.00 0.30 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 231: Table 158: 5800 Mhz: Rf Power & Eirp: 20 Mhz Chan. & 10 Dbi Ant. For Ic

    3.99 4.00 0.01 32.00 35.99 36.00 0.01 64-QAM 5790.0 1.11 0.37 3.77 4.00 0.23 32.00 35.77 36.00 0.23 5840.0 0.69 0.38 3.55 4.00 0.45 32.00 35.55 36.00 0.45 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 232: Connect-Ows / Iws Serial Gateway

    General Information Trace Log Copyrights System Configuration System Settings Trace Settings Radio Configuration Radio Management Gateway Configuration Serial Port Settings Gateway Settings Maintenance Firmware Management Change Password Restart 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 233: Network Connection

    Connect-OWS and Connect-IWS are identical. Fig. 72: Connect Gateway - Connect-IWS Configuration Using Ethernet Port Fig. 73: Connect Gateway - Connect-IWS Configuration Using Console Port 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 234: Ethernet Connection

    Connect-IWS/OWS is: 38400 bps 8N1 Login to the serial gateway using the assigned username and password. The default username and password are as follows: username: admin password: admin 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 235: Dashboard Display

    Serial Port: Serial port associated with this gateway. Gateway Mode: Mode of operation for this gateway. Gateway 2 Serial Port: Serial port associated with this gateway. Gateway Mode: Mode of operation for this gateway. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 236: Status Screen

    DHCP server (see Configuration->System). Default Gateway: The active default router/gateway for this unit. DNS Server 1: IP address of primary DNS server. DNS Server 2: IP address of secondary DNS server. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 237: Trace Log

    Trace Log screen to view events recorded for each subsystem. Refer also to the Trace Settings screen (under System Configuration). Fig. 78: Connect Gateway - Trace Log Screen 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 238: Configuration Screens

    DNS Server 2: IP address of secondary DNS server. Syslog Settings Enable Syslog: Check this box to enable saving event messages on a remote server. Server IP: Network address of the Syslog server. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 239: Trace Settings

    Use the Trace Settings screen to view and modify the level of logging detail recorded for each subsystem. Use 'Info' for normal operation. Fig. 80: Connect Gateway - Trace Settings Screen 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 240: Radio Management

    Direct Radio Management: Click this button to open the RDL-3000 radio management interface screen. Refer to Section 3: Web Interface in this document. Radio Management Settings MAC Filter: MAC address filter for radio management. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 241: Gateway Settings

    TCP/IP in a single Ethernet frame. The buffered data is forwarded immediately if the receive data buffer reaches maximum capacity (1 KB). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 242: Serial Gateway [1,2] Tcp Server Settings

    Server is enabled gateway 1 is automatically assigned port 502 and gateway 2 is assigned port 502. Max Connections : Enter the number of hosts allowed to access this port (1-8). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 243: Serial Port Settings

    Databits: Select the number of data bits in a frame (5-8). Stopbits: Select the number of stop bits in a frame (1-2). Note: Console port is not configurable: 38400 bps 8N1 (DTE). 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 244: Firmware Management

    Click the Upload button to begin the file transfer. The transfer may require up to eight minutes based on the data transfer rate. Do not interrupt the transfer process. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 245 When the transfer has completed successfully, click the Swap Firmware button to select the firmware version to load on the next system reboot. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 246: Change Password

    Password: Enter the password for the current user. New Password: Enter the new password for the current user. Confirm New Password: Re-enter the new password. Entry must match the New Passwrd field. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 247: Serial Gateway Cli Interface

    Cancel command entry (alternative to backspace delete). exit Return to parent node / mode. all (exit all) Return to root mode. logout Terminate this telnet session. May be entered from any mode. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

  • Page 248: Command Set

    Unit's IP netmask that is actually in use. 255.255.255.0 radio Radio device related commands detection Radio device detection. true Radio is present. false Can not detect radio. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 249 <port> <alias | baudrate | databits | interface | parity> Configuration commands for serial port DATA1/DATA2. Note that console port is not configurable(DTE: 38400 bps 8N1). Example serial.data2.stopbits 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 250 Configure the virtual gateways. Example: vgateway <CR> vgateway.1.rawtcpserver.datapacking.packetlength = 1024 vgateway.1.rawtcpserver.datapacking.delimiter1 = 0x31 vgateway.1.rawtcpserver.datapacking.delimiter2 = 0x32 vgateway.1.rawtcpserver.datapacking.delimiteraction = nothing vgateway.1.rawtcpserver.datapacking.delimiter1enable = off vgateway.1.rawtcpserver.datapacking.delimiter2enable = on vgateway.1.rawtcpserver.datapacking.forcetransmit = 20 vgateway.1.rawtcpserver.inactivitytime = 0 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 251 | delimiteraction | forcetransmit> Data packing settings. delimiter1enable <off | on> First delimiter enable. Refer to Configuration Settings for details. delimiter1 <00-FF> First delimiter byte value. 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 252 Show commands. Not implemented. user User management commands. chgpasswd change user password print Print all the users. Example: print User Access Type Password Hash -------------------------------------------------------------- admin admin 5BE831EF5E57D10ABB6CCA6D73083FDB 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 253 RDL-3000 FAMILY USER MANUAL 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...
  • Page 254 MISSION CRITICAL WIRELESS NETWORKS 302 Town Centre  Markham, Ontario  Canada  L3R 0E8 www.rdlcom.com 70-00158-03-00 Proprietary Redline Communications © 2015 Page of 254 April 17, 2015...

This manual is also suitable for:

Rdl-3000 ellipseRdl-3000 ras-elite lRdl-3000 elte-mtRdl-3000 enterpriseRdl-3000 ras-extend connect-owsRdl-3000 connect-iws ... Show all

Table of Contents
