Product Introduction

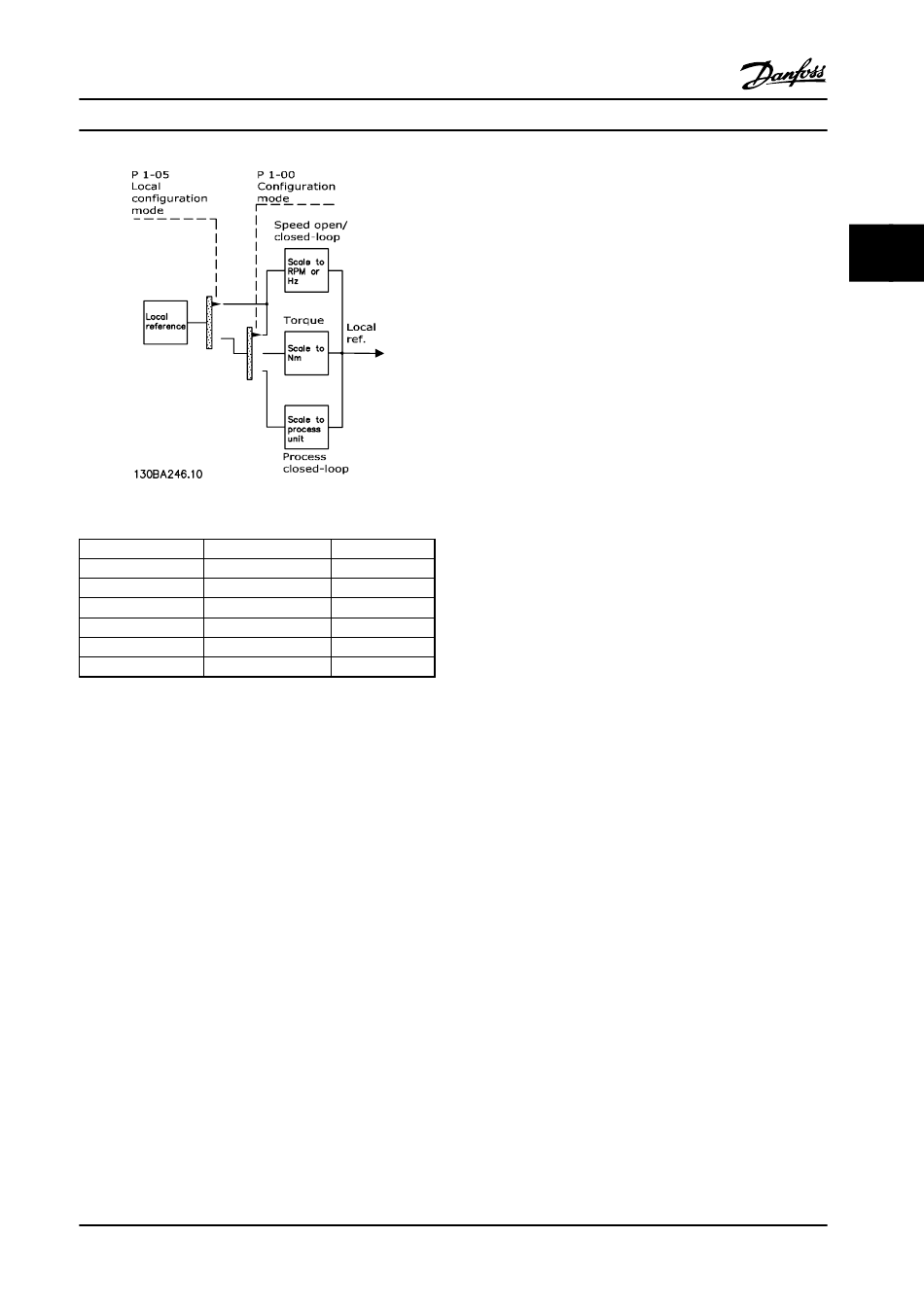

Figure 3.9 Configuration Mode
Hand on 3-13 Reference Site
Hand Linked to Hand/Auto
Hand⇒Off Linked to Hand/Auto
Auto Linked to Hand/Auto
Auto⇒Off Linked to Hand/Auto
All keys Local
All keys Remote
Table 3.4 Conditions for Local/Remote Reference Activation
1-00 Configuration Mode determines what kind of
application control principle (for example, speed, torque, or
process control) is used when the remote reference is
active. 1-05 Local Mode Configuration determines the kind
of application control principle that is used when the local
reference is active. One of them is always active, but both
cannot be active at the same time.
MG34S222
Design Guide
Active reference
Local
Local
Remote
Remote
Local
Remote
