Electrical Installation
Terminal Locations - E1
Take the following position of the terminals into consideration when designing the cable access.
492[19.4]
323[12.7]
7 7
B
195[7.7]

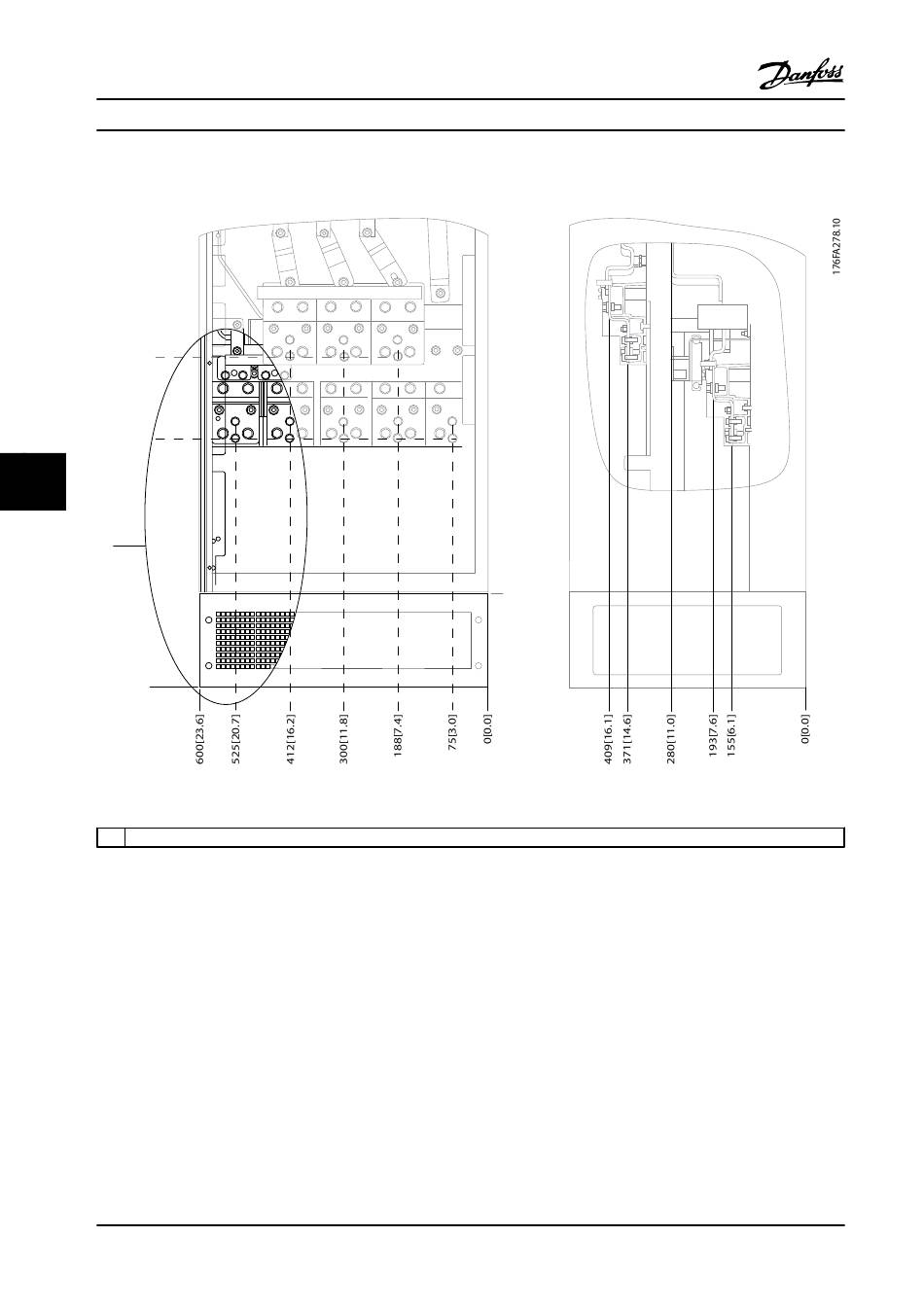

Figure 7.17 IP21 (NEMA Type 1) and IP54 (NEMA Type 12) Enclosure Power Connection Positions
B Front View of Unit
Table 7.15 Legend to Figure 7.17
