Mechanical Installation

6.2.12 Pedestal Installation of E-frames

As seen in Figure 6.101 the bottom plate of the E1 can be mounted from either inside or outside of the enclosure Unit Size,
allowing flexibility in the installation process. If mounted from the bottom, the connectors and cables can be mounted
before the adjustable frequency drive is placed on the pedestal.

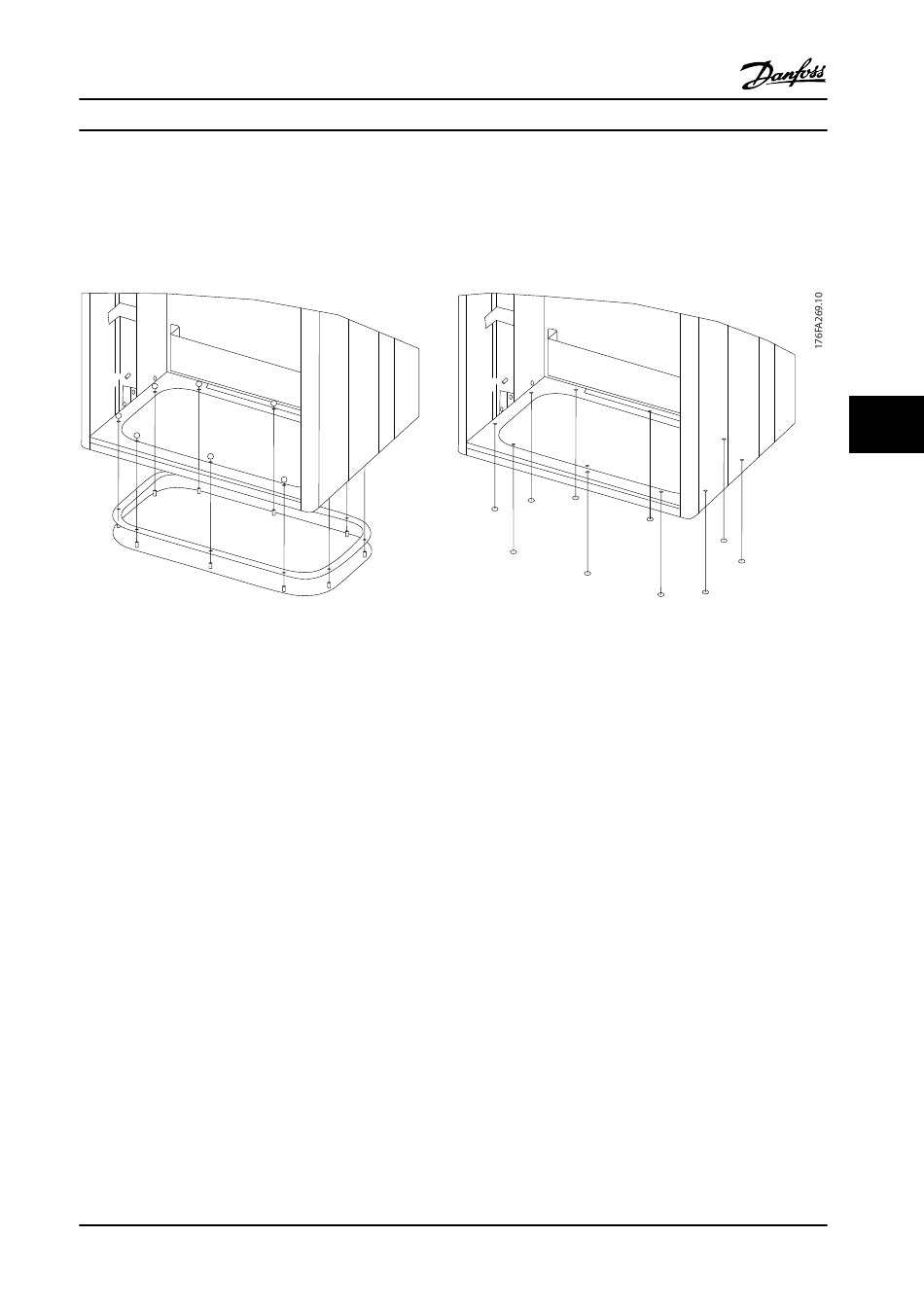

Figure 6.101 Mounting of Bottom Plate, Frame Size E1.
To install a pedestal-mounted E-frame unit, perform the following steps:
1. Install each M10x30 mm bolt with captive lock washer and flat washer through the base plate and into the
threaded hole in the base. Install four bolts per cabinet.
