Electrical Installation

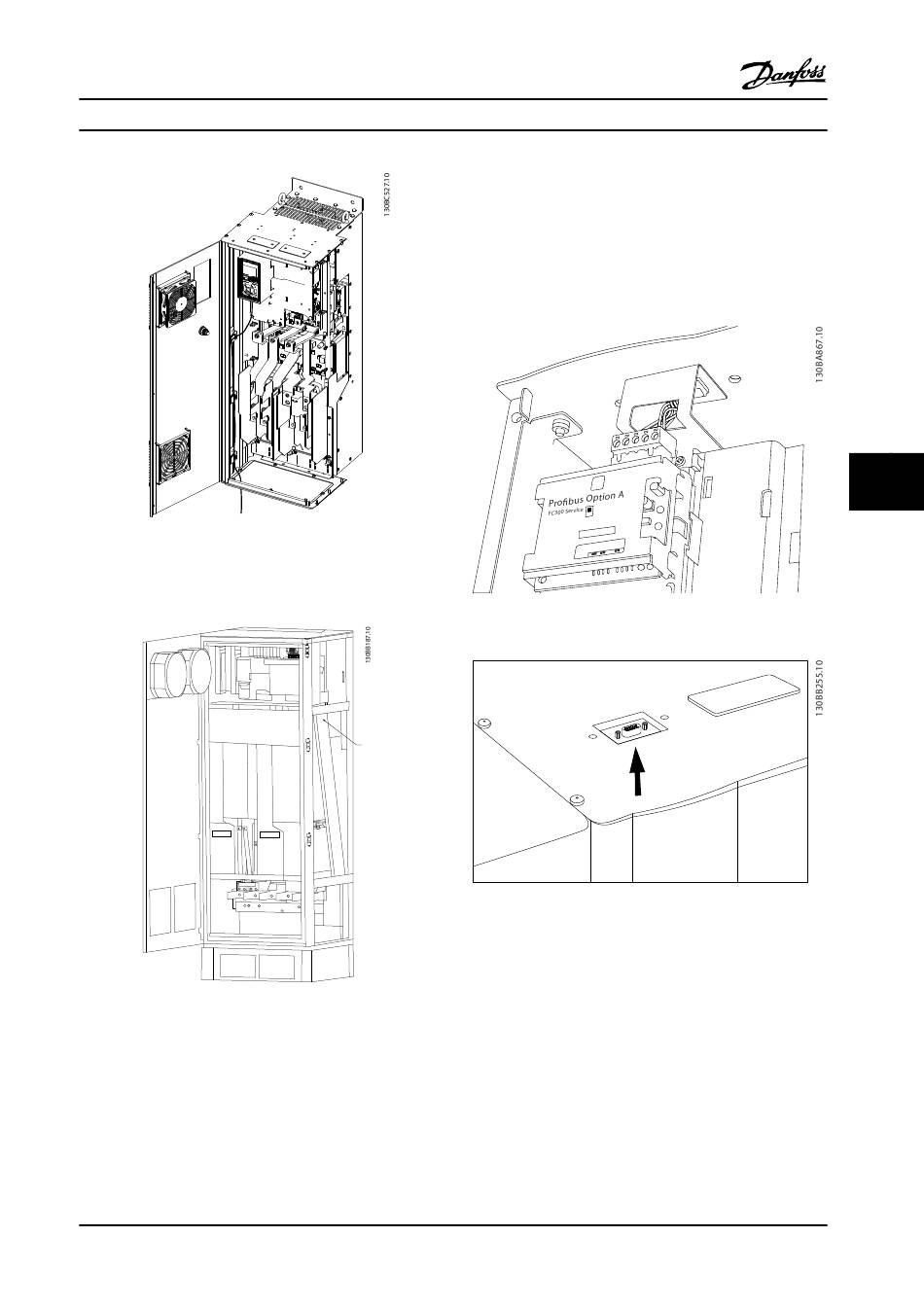

Figure 7.35 Control Card Wiring Path for the D3h. Control
Card Wiring for the D1h, D2h, D4h, E1 and E2 Use the Same
Path
Figure 7.36 Control Card Wiring Path for the F1/F3. Control
Card Wiring for the F2/F4 Use the Same Path
MG34S222
Design Guide
In the D- and E-Frame adjustable frequency drives, it is
possible to connect the serial communication bus from the
top of the unit, as shown in the following figures. On the
IP21/54 (NEMA-1/NEMA-12) unit, a cover plate must be
removed.
The kit number for the serial communication bus top
connection is 176F1742.
Figure 7.37 Top Connection for Serial Communication Bus
1
Figure 7.38 Profibus Top Entry Kit, Installed
