Electrical Installation
Design Guide
Terminal Locations - D1h/D2h
Take the following position of the terminals into consideration when designing the cable access.
3
7
7
B
1

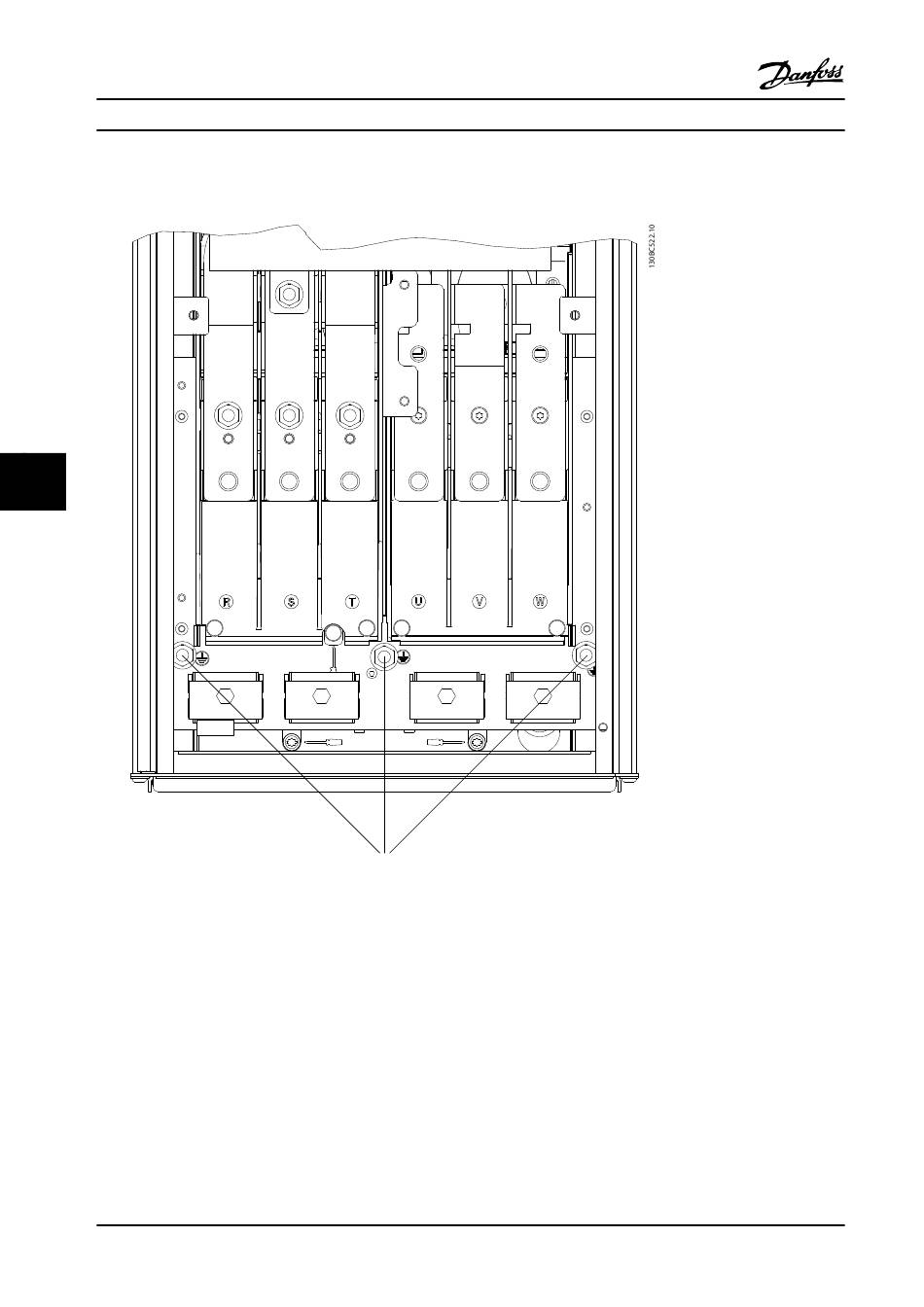

Figure 7.5 Position of Ground Terminals IP21 (NEMA Type 1) and IP54 (NEMA Type 12), D1h/D2h
182
Danfoss A/S © Rev. 2014-02-10 All rights reserved.
MG34S222
