3.3 Reference Handling
Local reference
The local reference is active when the adjustable frequency drive is operated with the [Hand On] key active. Adjust the
3
3
▲
▼
reference by using the [
/
] and [◄/►] keys.
Remote reference

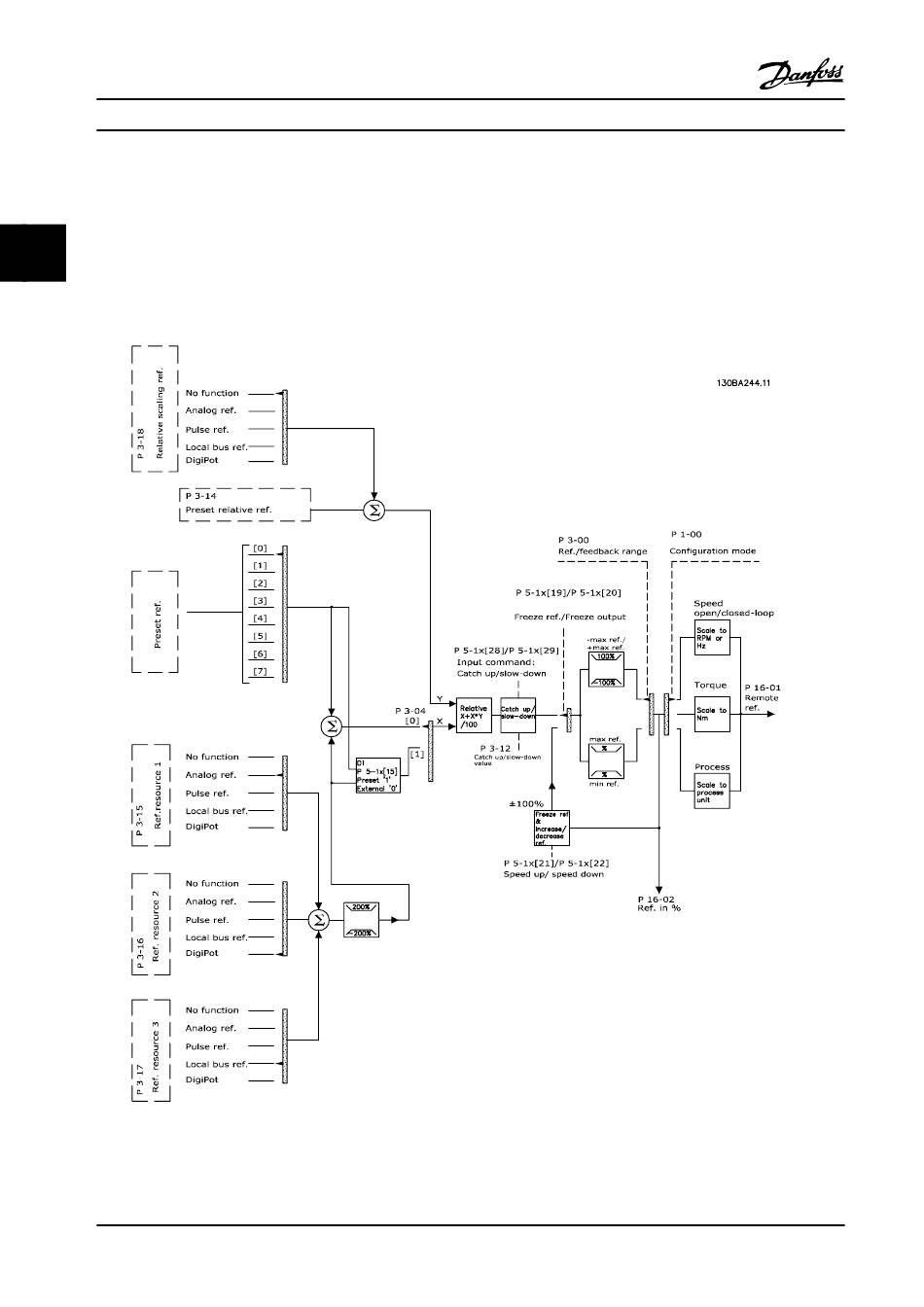

The reference handling system for calculating the reference is shown in Figure 3.10.
Figure 3.10 Remote Reference
30
Danfoss A/S © Rev. 2014-02-10 All rights reserved.
MG34S222
