Danfoss VLT AutomationDrive FC 300 Design Manual page 230

Electrical Installation

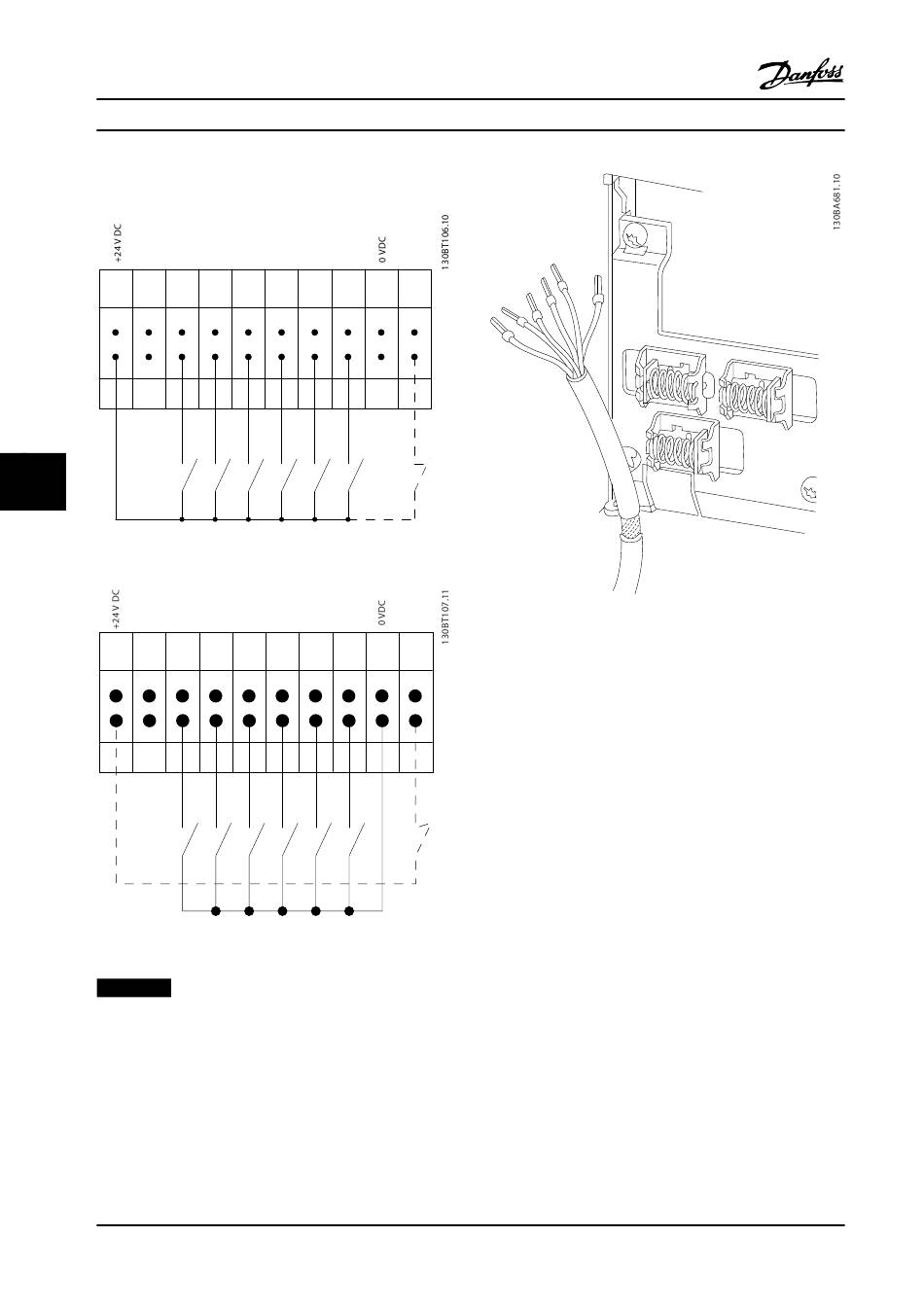

Input Polarity of Control Terminals
12 13
7 7
Figure 7.45 Input Polarity of Control Terminals (PNP Source)
12 13
Figure 7.46 Input Polarity of Control Terminals (NPN Sink)
NOTICE!
Use shielded/armored cables to comply with EMC
emission specifications. For more information, see
chapter 7.8 EMC-compatible Installation.
228
PNP (Source)
Digital input wiring
18 19 27 29 32 33
NPN (Sink)
Digital input wiring
18 19 27 29 32 33
Danfoss A/S © Rev. 2014-02-10 All rights reserved.
Design Guide
20 37
Figure 7.47 Shield Termination and Strain Relief of Control
Cable
20 37
MG34S222
