Application Examples

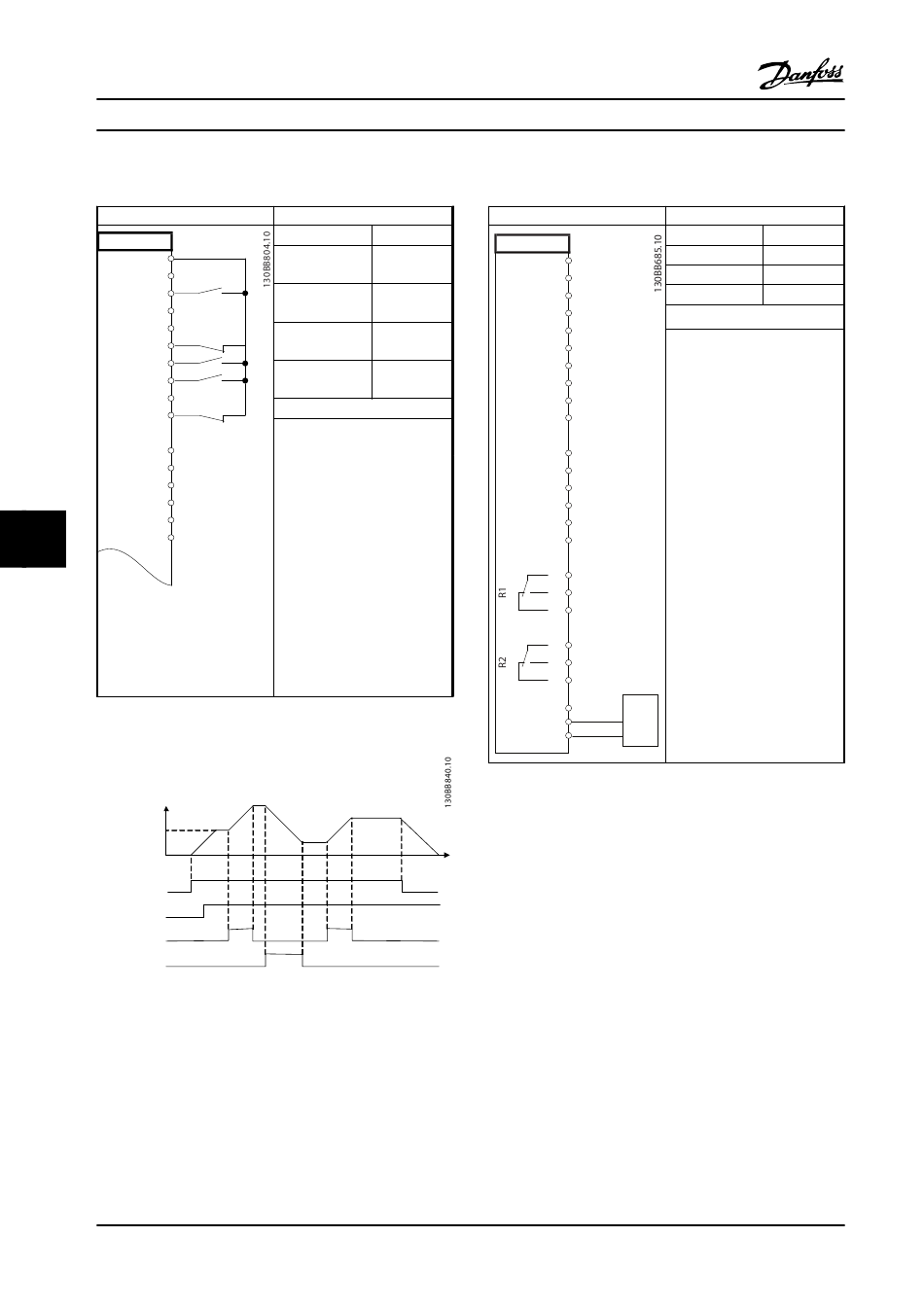

8.6 Speed Up/Slow

FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
8 8
COM
39
Table 8.10 Speed Up/Slow
S p e e d
R e f e r e n c e
S t a r t ( 1 8 )
F r e e z e r e f ( 2 7 )
S p e e d u p ( 2 9 )
S p e e d d o w n ( 3 2 )
Figure 8.3 Speed Up/Slow
244
Design Guide
Parameters
Function Setting
5-10 Terminal 18 [8] Start*
Digital Input
5-12 Terminal 27 [19] Freeze
Digital Input Reference
5-13 Terminal 29 [21] Speed
Digital Input Up
5-14 Terminal 32 [22] Slow
Digital Input
*=Default Value
Notes/Comments:
Danfoss A/S © Rev. 2014-02-10 All rights reserved.
8.7 RS-485 Network Connection
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
RS-485
06
61
+
68
69
-
Table 8.11 RS-485 Network Connection
Parameters
Function Setting
8-30 Protocol FC*
8-31 Address 1*
8-32 Baud Rate 9600*
*=Default Value
Notes/Comments:
Select protocol, address and
baud rate in the above-
mentioned parameters.
