7.1.31 LPBX – I
DC Bias
0.1A to
250A
This test requires the use of one or more Voltech DC1000 Precision DC Bias
Current Sources. Contact your Voltech sales office for details.
The inductance of a transformer winding while an external bias current is
flowing through it may be tested using series or parallel equivalent circuit
models. Initially the DC bias current is set up and allowed to stabilize. An AC
voltage is applied across the selected winding; the voltage across and current
through the winding are then measured using harmonic analysis. The
measured voltage is divided by the current to obtain a complex impedance and
the inductance is calculated.

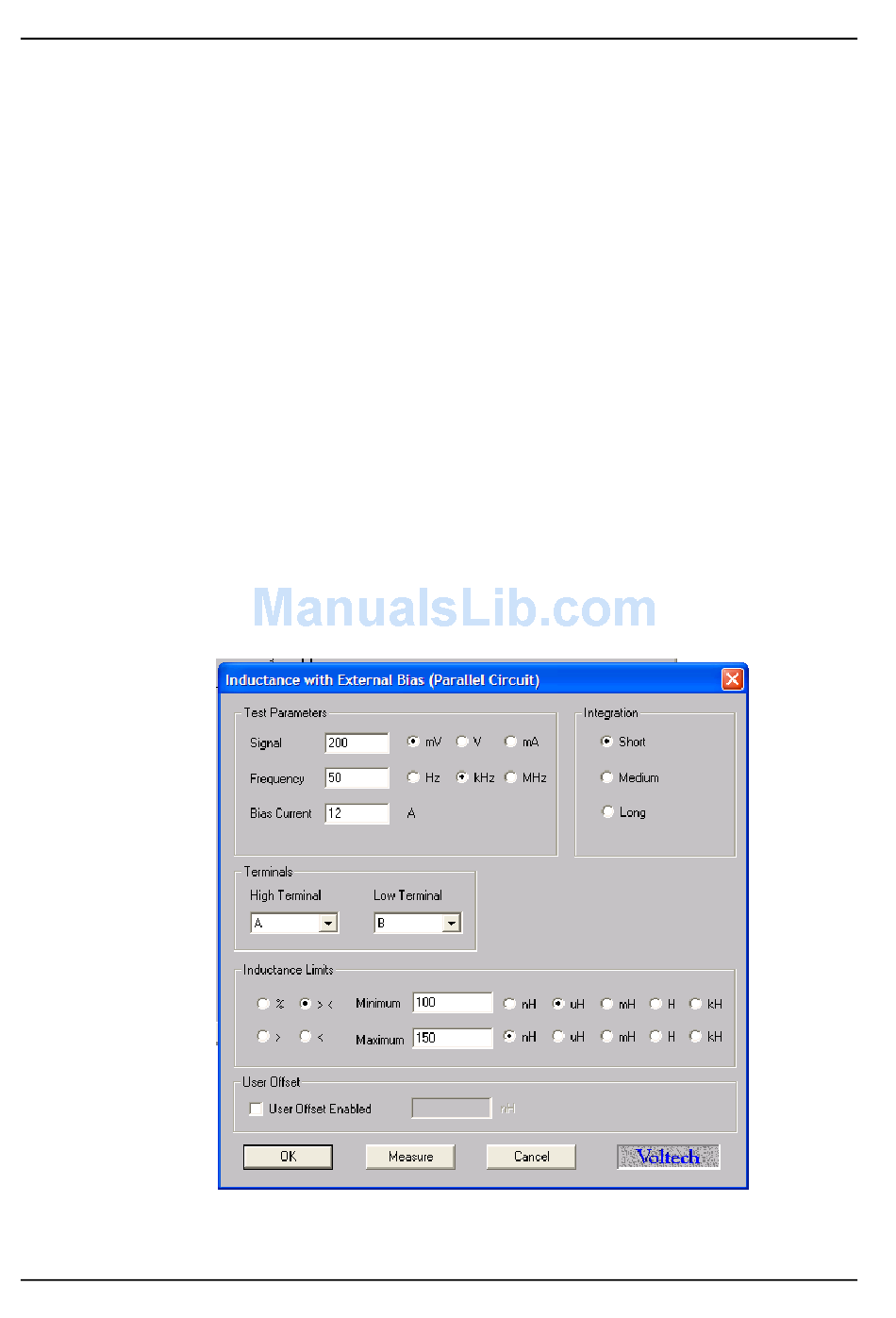

On selecting 'LPBX Inductance with External Bias (Parallel Circuit) from the
'Available Tests' window, a dialogue box will be displayed.
P 7-118
AGE
C
ONDITIONS
NDUCTANCE WITH
Measure
Range
1nH 1MH
E B
XTERNAL
Test
Voltage Frequency
1mV to 5V 20Hz to 3MHz
V
(P C
IAS ARALLEL
Test
Accuracy
0.2% @ Q>10
AT U
OLTECH I SER
)
IRCUIT
Basic
