Voltech ATi User Manual page 162

P
ROGRAM EDITOR
The Editor will now download the test program to the tester. After a few
seconds, you should see a message to say that the download was
successful.
5. Again, from the top-level menu bar, select:
Tester > Run Program
The test program will now begin execution.

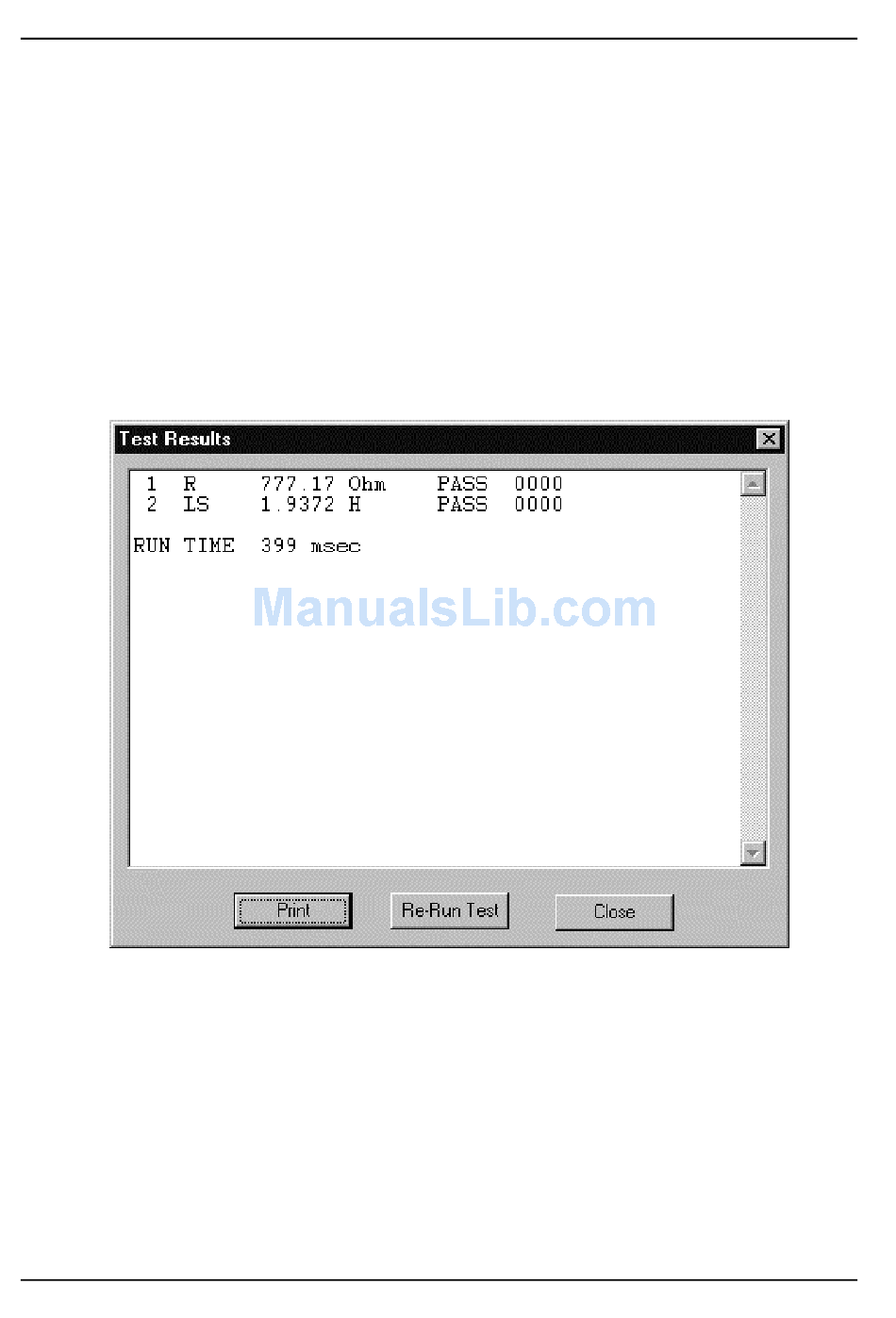

When it is finished, you will see a dialogue box containing the results of the
test.
From the results, you should be able to see any tests where there may be
problems. Return to the Program Editor to make the necessary changes,
then download the program again, and run the corrected version.
Continue in this way until you are satisfied that the program is correct,
before archiving it for use in production.
The code at the end of each result line should normally be zero; any other
code signifies that an error occurred in the measurement.
