ROGRAM EDITOR

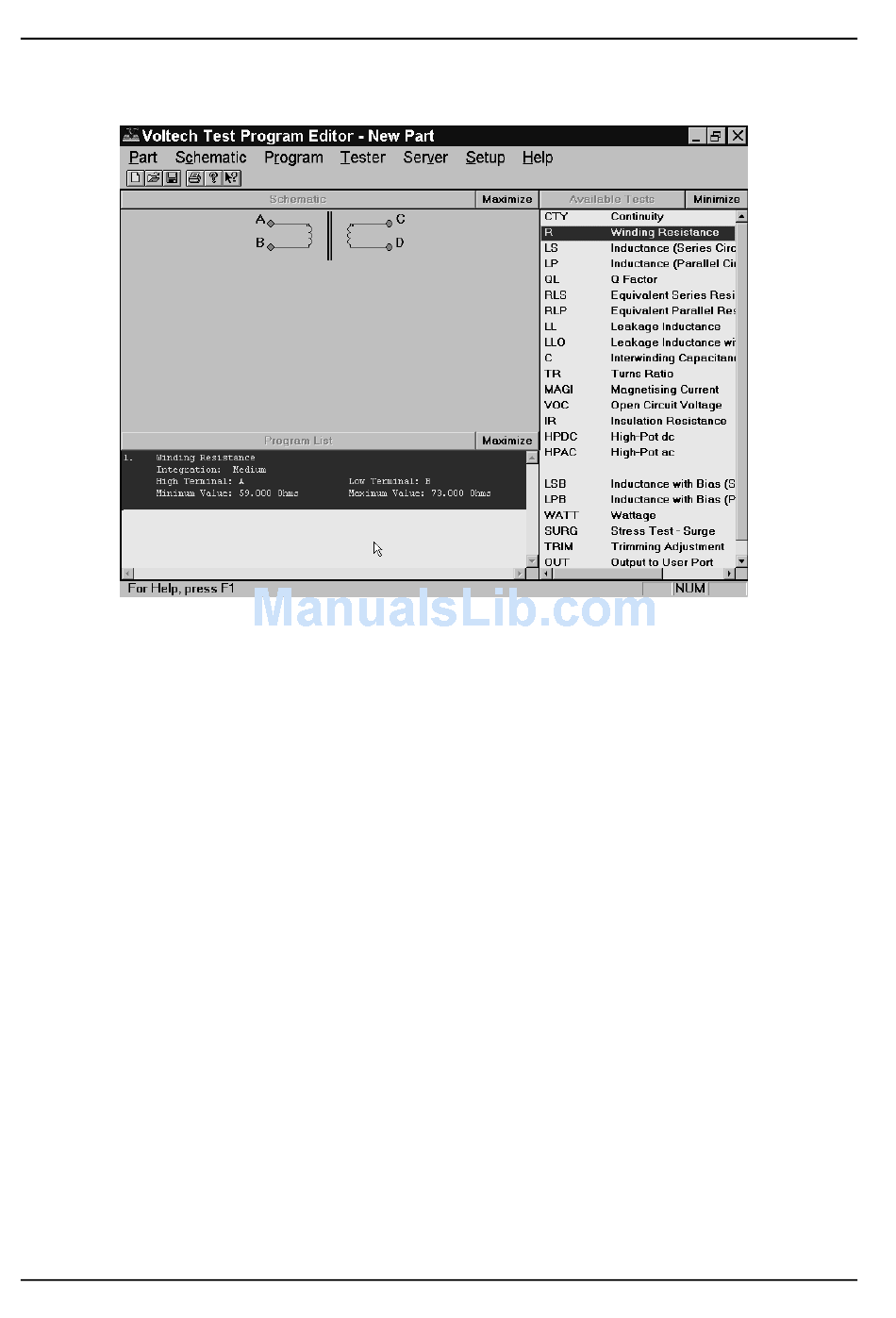

You will now see a display with three separate windows:
Top Left:
Bottom Left: The Program Window
Right:
P 3-20
AGE
A simplified view of the transformer schematic omitting the
wiring to the nodes.
This is a passive window intended to be used as a memory aid;
it cannot be used to change the schematic. (If you need to alter
the schematic at any time, simply click on 'Schematic' then 'Edit'
in the top-level menu.)
This is the list of tests that currently make up the test program.
Normally, for a new program, this window would initially be
empty. The display above shows the program of one resistance
test created in the Quick Start Tutorial.
The Available Tests Window
This is the list of tests that are available to be used in creating or
modifying the test program.
From this display, you may now create the test program suitable
for your transformer by adding tests to the program from the
V AT U
OLTECH I SER
M
ANUAL
