Voltech ATi User Manual page 272

F - M
RONT PANEL ODES

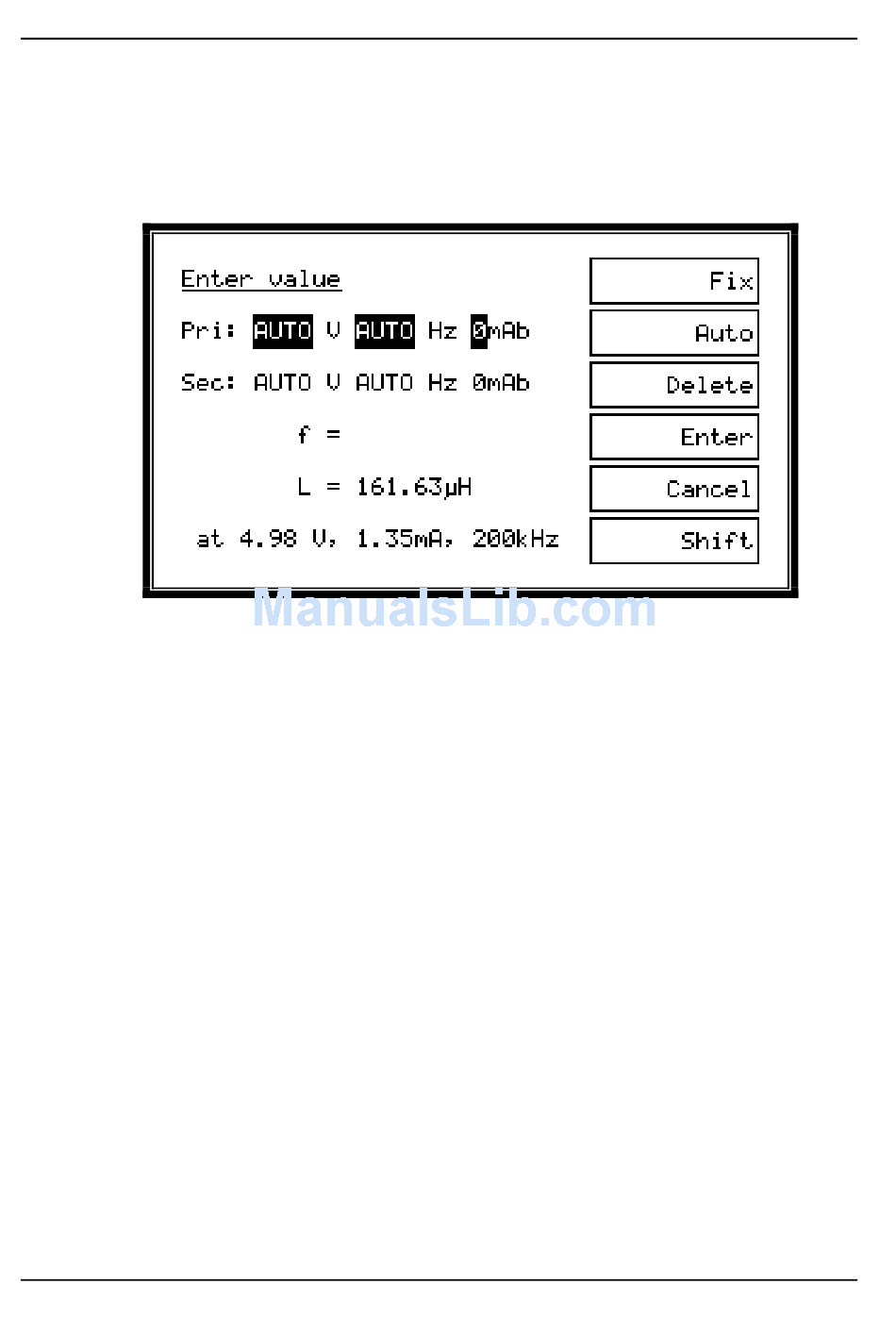

Press 'Fix' to enter the value currently being measured by the ATi. (This does
not apply to 'Ibias', the DC bias current.)
Press 'Enter' to accept the value that you have entered.
Press 'Auto' to have the ATi automatically choose a voltage or frequency.
(Remember that the combination of 'AUTO f' and a fixed voltage is not
allowed.)
Press 'Cancel' at any time to discard any changes that you have made and to
return to the previous screen.
The 'Shift' key is used to enter the multipliers 'k' (x1,000) or 'M' (x 1,000,000).
Ibias is always entered and displayed in mA. There are no multipliers for Ibias.
To enter 10.5 kHz, for example:
Either press '1', '0', '5', '0', '0', 'ENTER f'
or press '1', '0',' .', '5', 'SHIFT', '5', 'ENTER f'
