3.3.2 A
DDING
A test program is a list of tests chosen from the Available Tests list. To create
a new program, you simply add tests to the list.
To add a test, use the mouse to select the test you require from the Available
Tests list, and double click on that test with the left button.
This will open the dialogue box particular to that test. You simply fill in all the
fields of the dialogue box, and then click on the OK button. The test will be
added at the end of the Program.

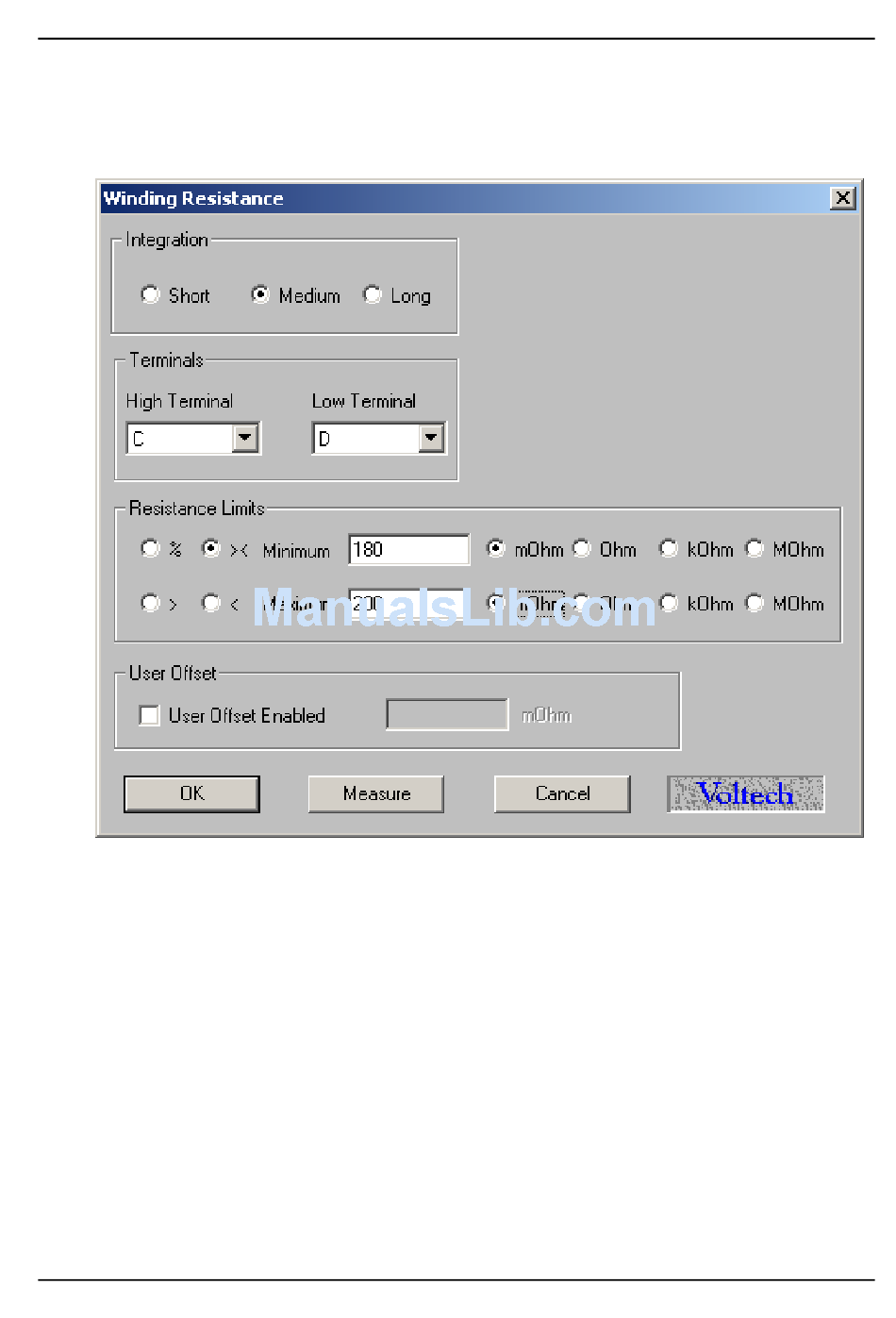

As an example, if you wish to add another 'R Winding Resistance' to the
program:
Double click on the 'R Winding Resistance' test in Available Test list.
V AT U
OLTECH I SER
'Available Tests' list. The following sections describe how to do
this.
T
ESTS
M
ANUAL
P E
ROGRAM DITOR
P 3-21
