Compensation Fail - Voltech ATi User Manual

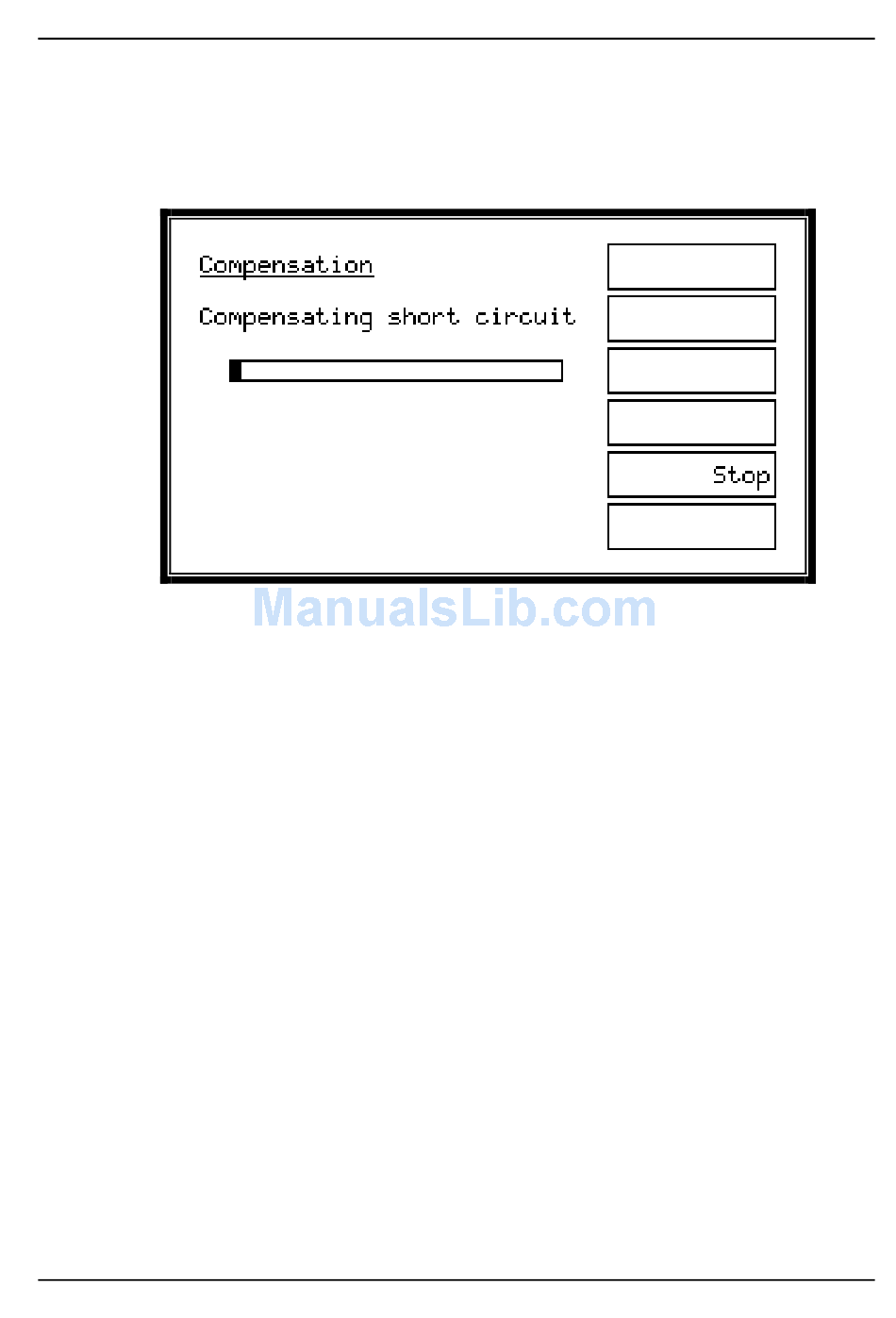

measurement may take up to 2 minutes, during which you will see the
following display:
Press softkey 5, 'CANCEL', at any time to cancel or stop the compensation
measurement, and you will be returned to the previous screen.
Once both short and open circuit compensation have been performed
succesfully, the words 'comp req' will be removed from the compensation
screen and from the main LCR or Rdc IR measurement screen.
See Section 6.1.2 for node #s when performing LCR (FIX) mode
compensation.
6.4.2 C
OMPENSATION
Should any compensation measurement fail, this is most likely because either
the short circuit ('S/C COMP') or the open circuit ('O/C COMP') were not
connected properly.
