P
ROGRAM EDITOR

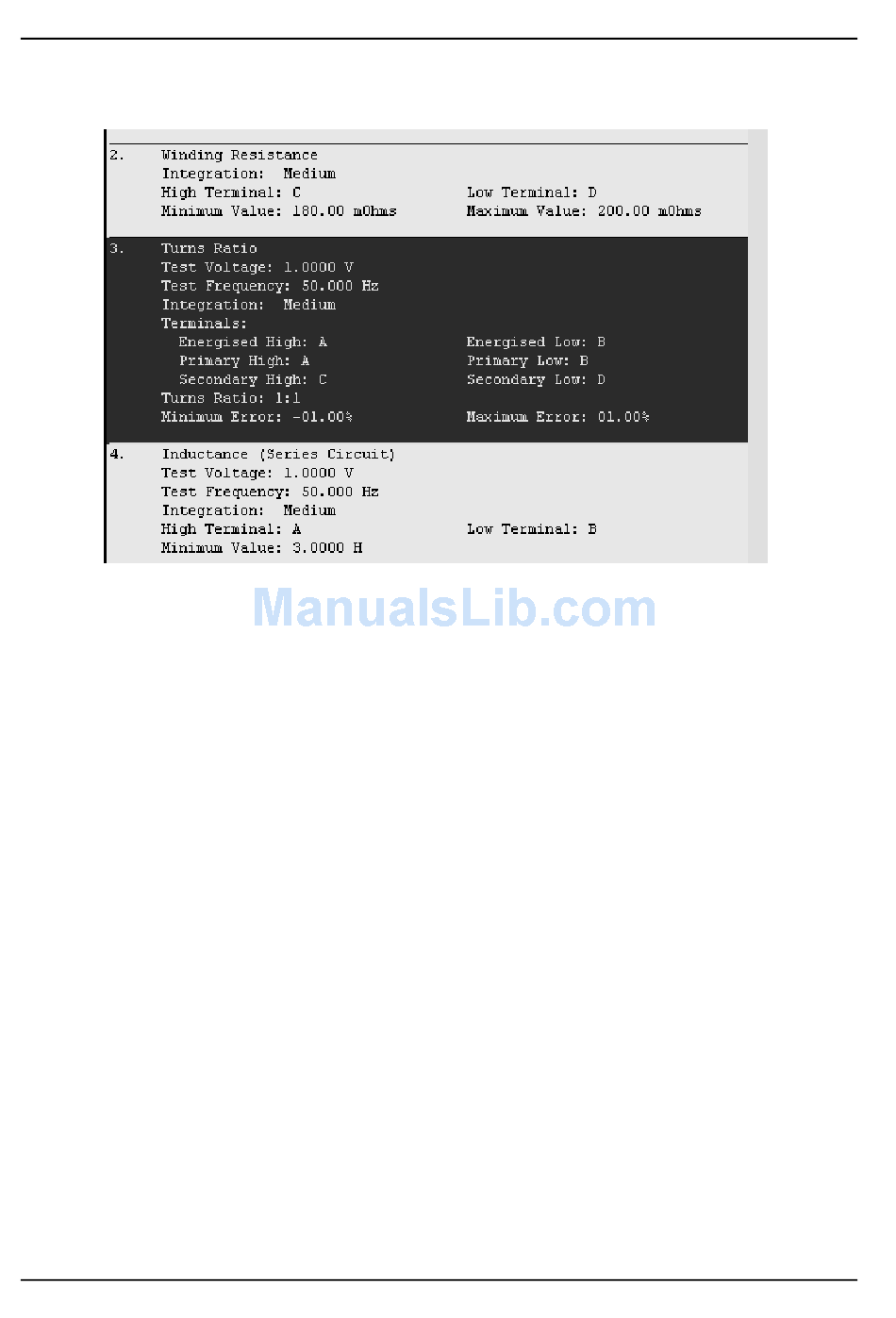

You will now see the new test inserted into the program.
3.3.4 M
ODIFYING
As part of creating a new test program, you would normally experiment by
running it with a sample batch of transformers. At this point, you may find that
some tests need to be modified, a typical example being that you need to
change the test limits.
With the Editor software, modifying a test is very simple.
1. In the Program list window, double-click with the left mouse button on the
test you wish to modify. This will re-open the dialogue box for that
particular test.
2. Make any changes you require to the test data in the fields of the dialogue
box, and click on OK.
You will now see the test with the modified data in the Program window.
P 3-24
AGE
T
ESTS
V AT U
OLTECH I SER
M
ANUAL
