P
ROGRAM EDITOR

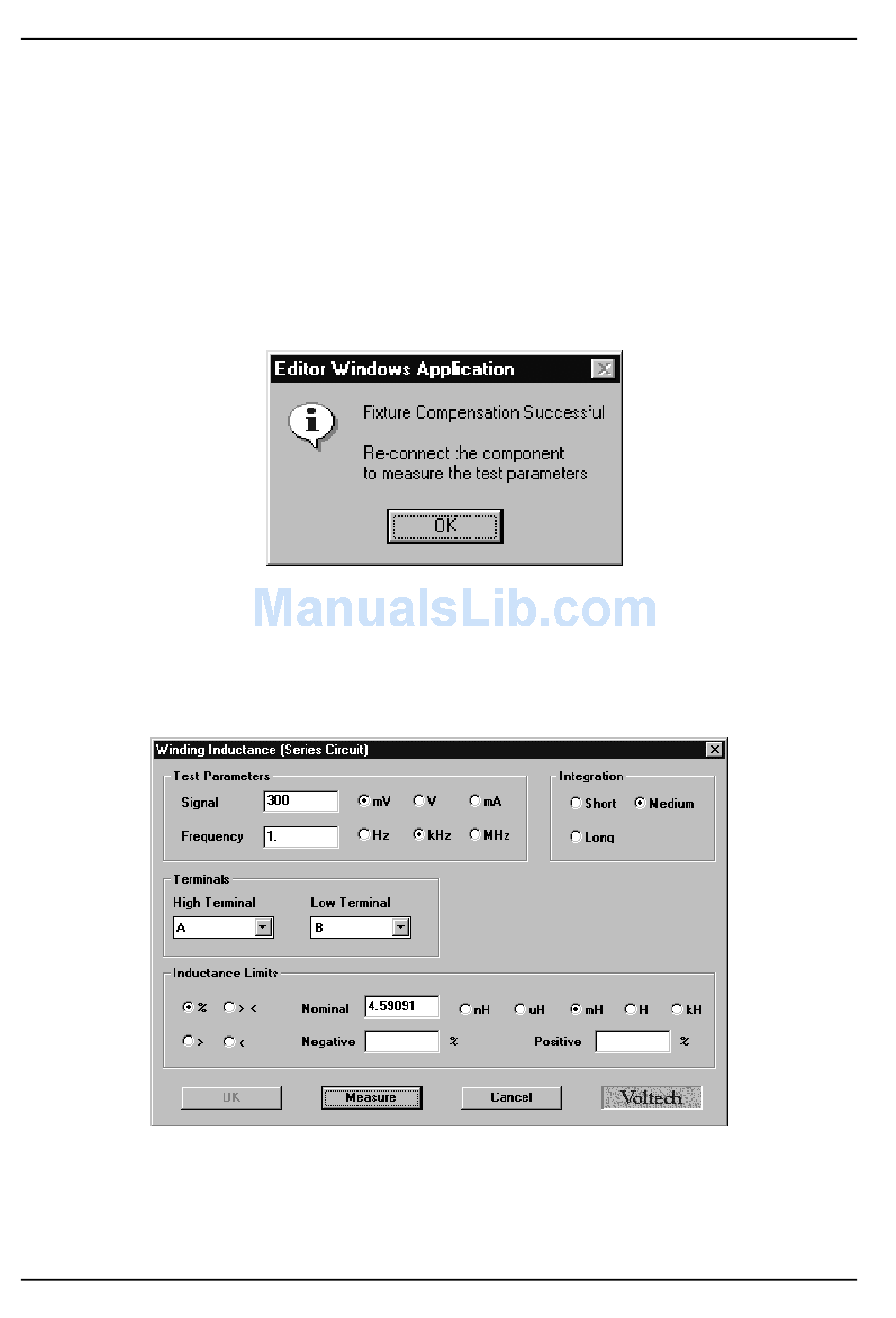

Assuming no errors, when the tester has finished the compensation
measurement, you will be prompted to remove the shorting links, and fit the
sample transformer.
After you have clicked on the 'OK' button, the tester will be commanded to
make its measurements, and you will see the following message:
When the measurements have finished, the display will return to the dialogue
box for the LS test, with values entered for the test signal, the frequency and
the nominal inductance:
From this point, it is very easy for you to complete the dialogue box by simply
entering the values you require for the Negative and Positive percentage limits.
