Choosing Test Conditions
For optimum accuracy and performance, use the test conditions shown in the
DC resistance section of this chapter for each of the two windings.

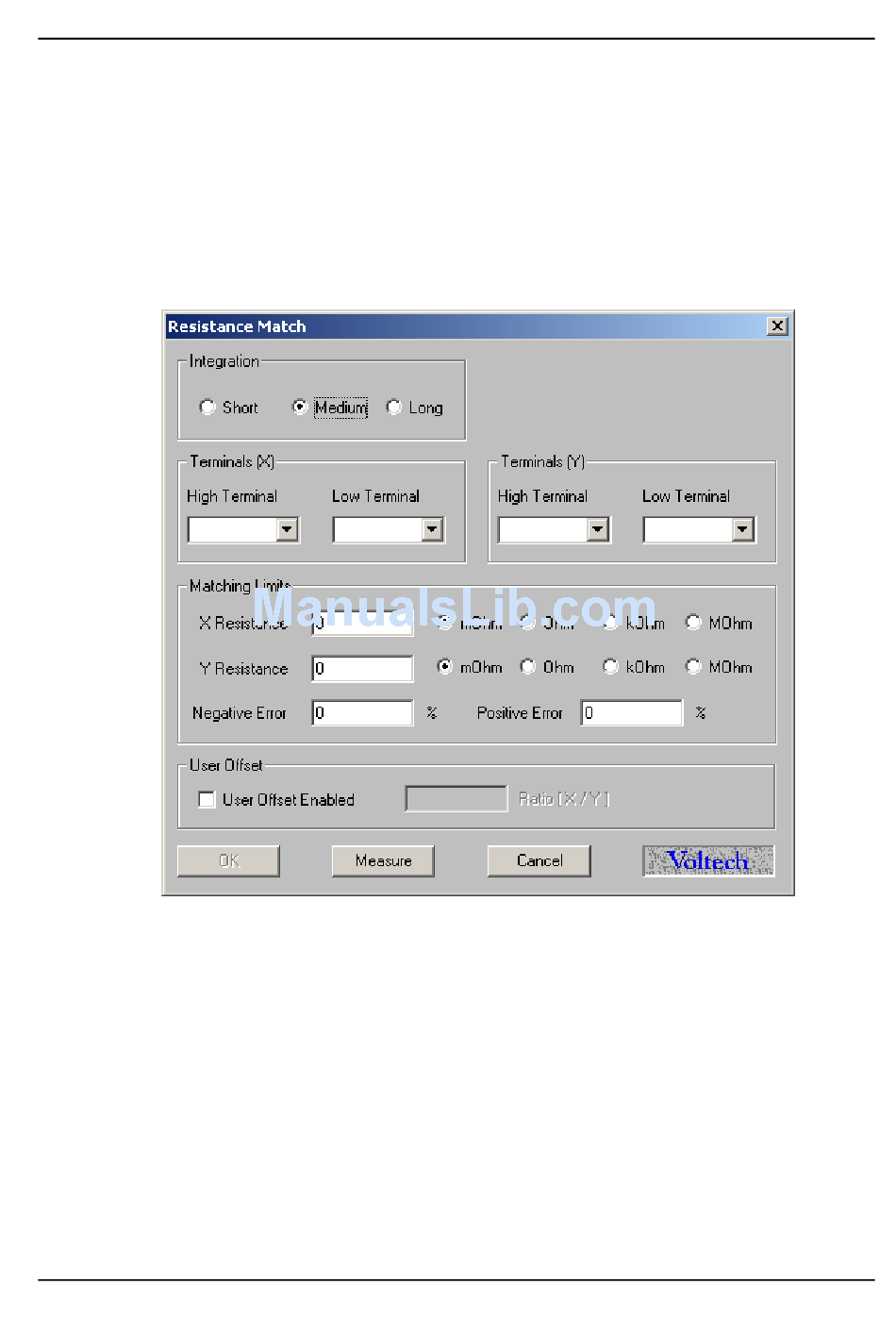

Programming the Test Using the PC Test Editor
•
Select the integration time required.
•
Enter the terminal names between which the X resistance is to be
measured.
•
Enter the terminal names between which the Y resistance is to be
measured.
•
Set the specific resistance for both X and Y terminals, and then set the
negative and positive percentage (%) limits.
