P
ROGRAM EDITOR
3.2.2 C
ONNECTING THE

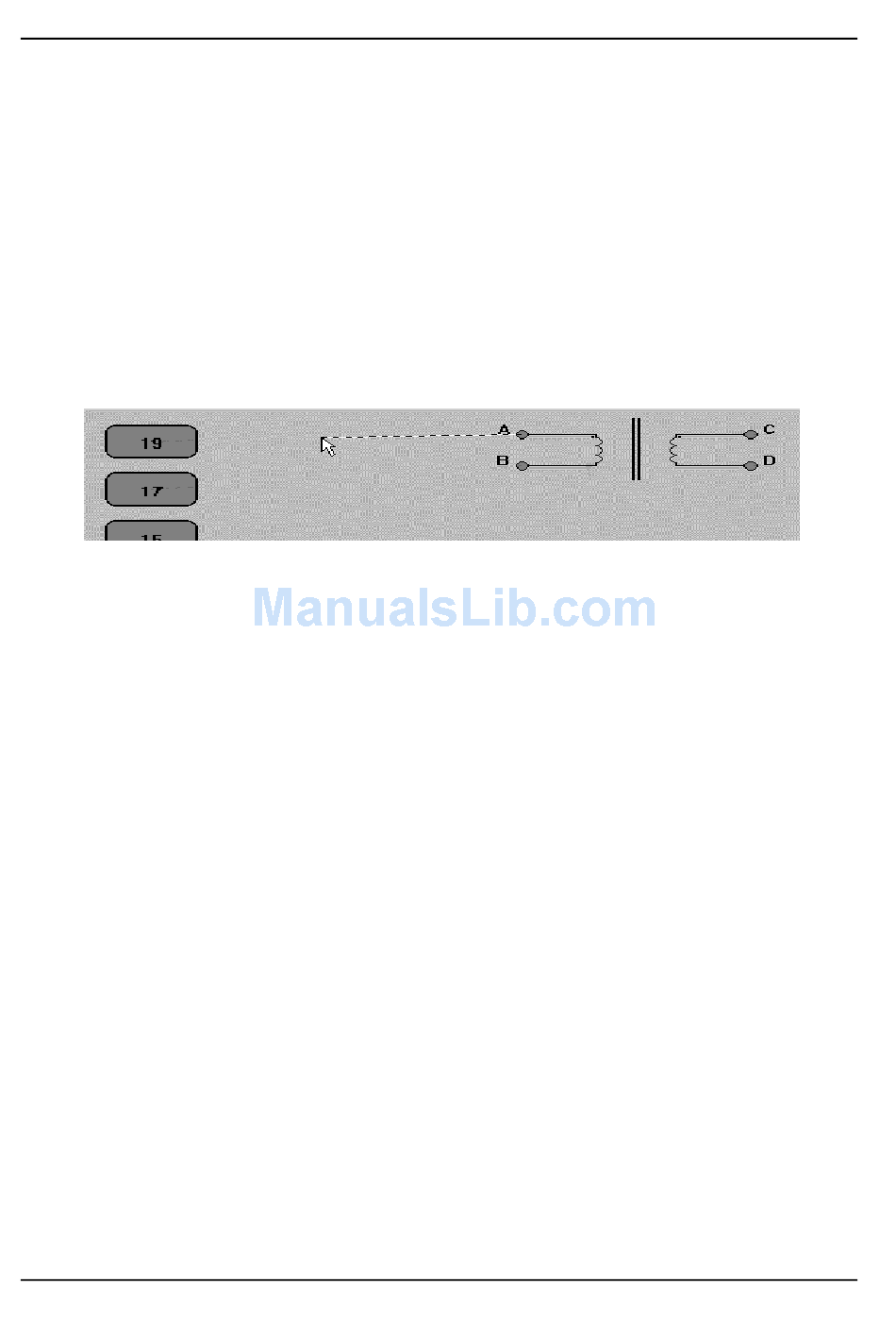

To connect the winding terminals to test nodes:
1 Select a terminal to connect with the RIGHT mouse button.
2 Keeping the right button pressed, drag the wire to the selected test node.
3 When the mouse pointer is over the test node, release the mouse button.
4 The connection may also be made in reverse by first selecting the test node
and then connecting it to the winding terminal.
To change a connection, simply use the right button to pick it up and move it to
either another test node or to another transformer terminal.
To delete a connection, again use the right mouse button to pick up the
connection, but this time release it when it is not over either a node or a terminal.
3.2.3 D
ELETING A
To delete a winding:
1. Select a winding by pointing at it with the mouse pointer and clicking the
left mouse button once. A selected winding will be indicated by a box
surrounding the winding.
2. Choose 'Delete Winding' from the 'Schematic' menu.
The selection will be removed from the screen.
Note that ALL tests containing the deleted terminals will also be DELETED.
P
3-8
AGE
W
T
INDING
W
INDING
N
ERMINALS TO
ODES
V
OLTECH
AT
U
M
I
SER
ANUAL
