2.1.2 The ATi Front Panel

RUN Indicator

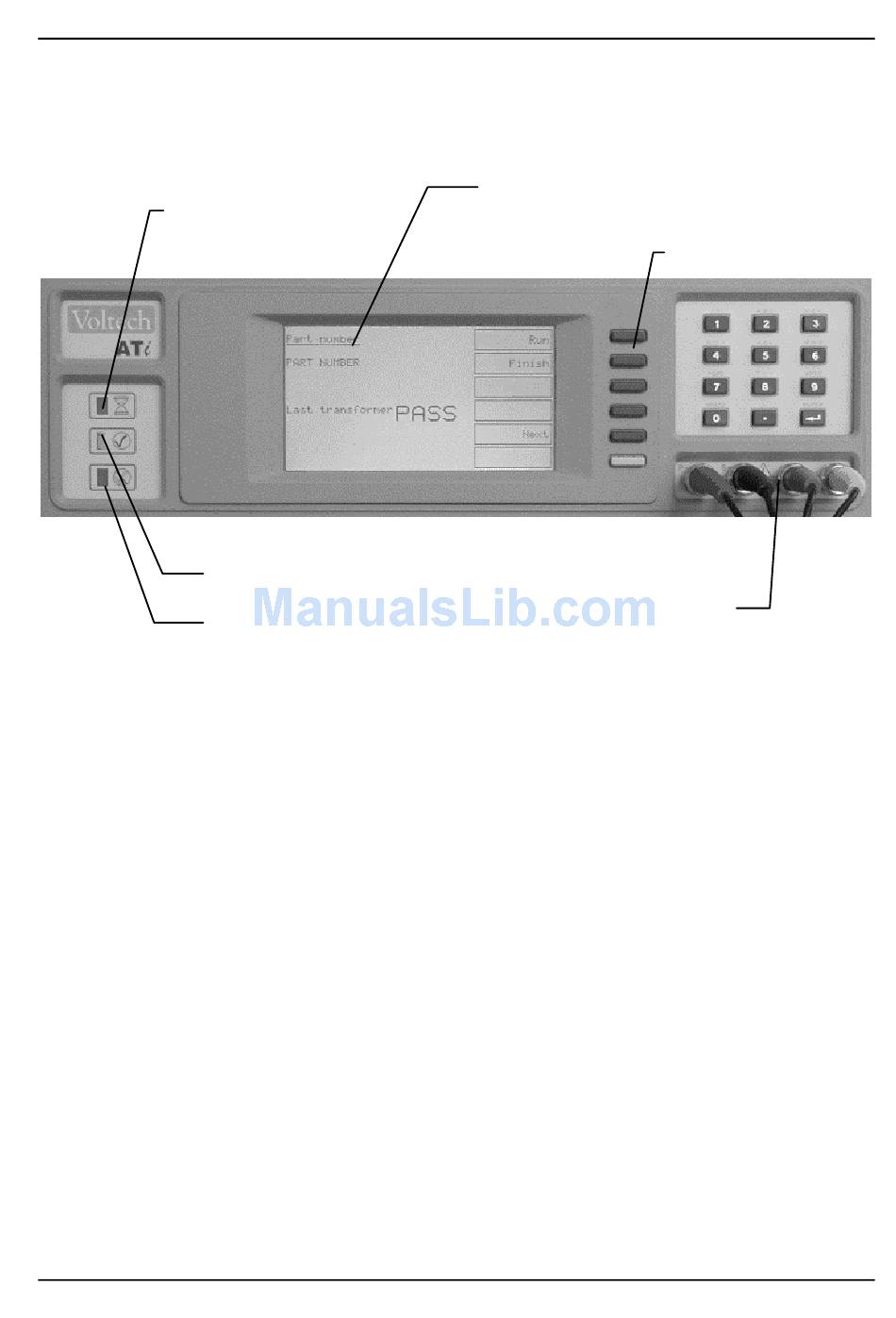

The front panel of the ATi is mounted towards of the rear of the fixture bay to
allow easy access for loading transformers and to avoid accidental damage to
the display and keys. The main features are as follows:
LCD Display
RUN Indicator
PASS Indicator
FAIL Indicator
V AT U
OLTECH I SER
PASS Indicator
FAIL Indicator
The brightly lit graphics display is used both to display
test results, and to provide prompts for data entry
within the menu structure.
The RUN indicator is a yellow LED. This is illuminated
when the tester is busy, for example when running a
test program.
The PASS indicator is a green LED. This is
illuminated after running a test program, when the
result is 'Pass'.
The FAIL indicator is a red LED. This is illuminated
after running a test program, when the result is 'Fail'.
M
ANUAL
Liquid Crystal Display (LCD)
BNC connectors
G S
ETTING TARTED
Softkeys
