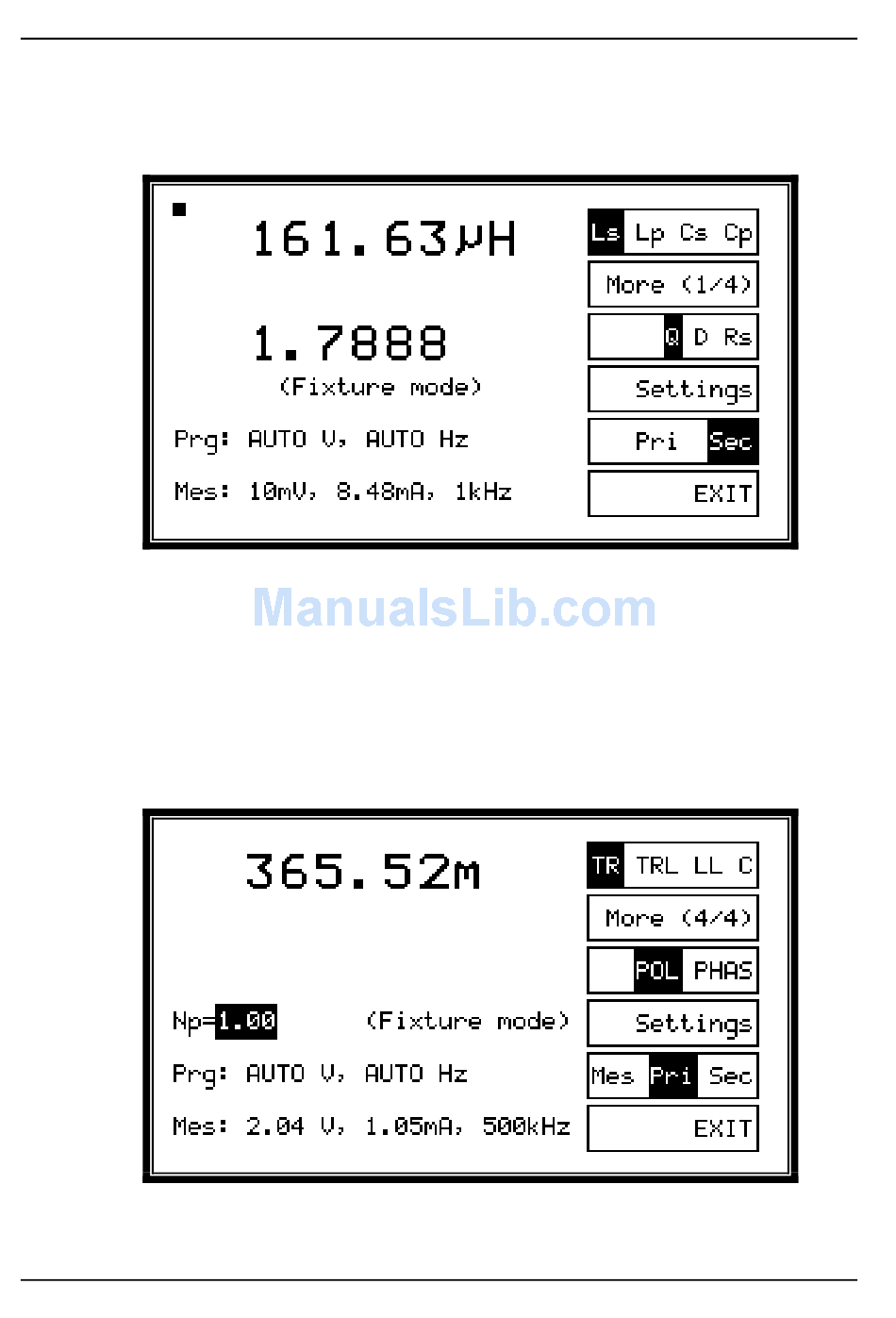

To change from measurements on the primary (nodes 13, 15) to
measurements on the secondary (nodes 14, 16) press softkey 5, 'Pri Sec'.
For measurements of TR (turns ratio) and TRL (turns ratio by inductance),
softkey 5 toggles the display of measured test conditions. It does NOT alter the
designation of primary (13,15) and secondary (14,16). Turns ratio is always
displayed as the ratio between primary (13,15) and secondary (14,16)
windings.
