Inserting Tests - Voltech ATi User Manual

P
ROGRAM EDITOR
Fill in the fields of the dialogue box.
Click on the OK button.

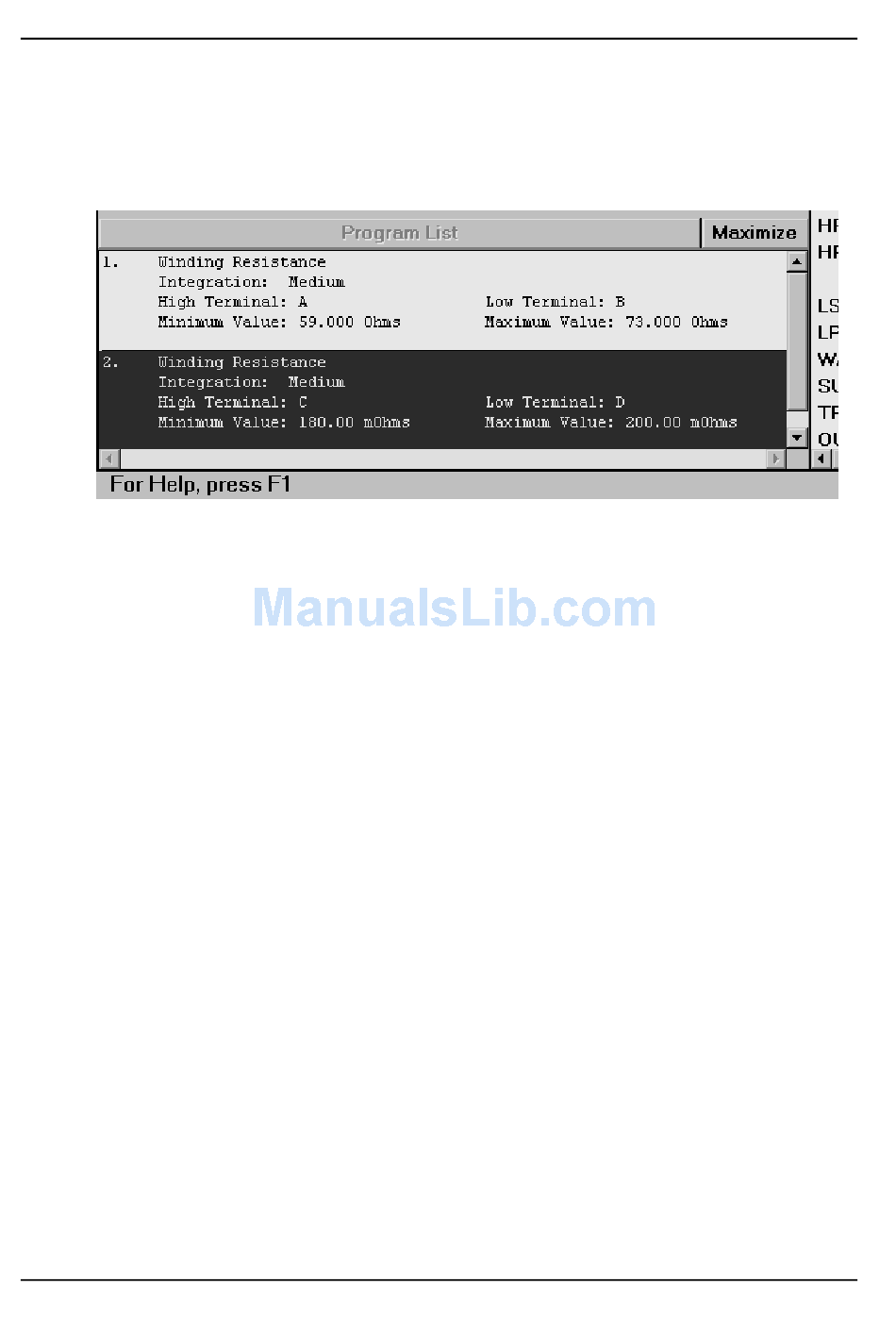

You will now see this test added to the Program:
3.3.3 I
NSERTING
Normally, if you are creating a new test program, you would add the tests in
the correct order of execution, as described in the previous section. You
would also use this procedure for modifying an existing program, if you needed
to append further tests at the end.
However, if you wish to add an extra test somewhere in the middle of an
existing program, a different procedure is required:
1. In the Available Tests window, click with the left button of the mouse
to highlight the test you wish to insert.
2. In the Program window, click with the left mouse button to highlight
one of the existing tests in the list. This will become the point of
insertion; the new test will be inserted in front of the one you have
selected.
P 3-22
AGE
T
ESTS
V AT U
OLTECH I SER
M
ANUAL
