Voltech ATi User Manual page 108

G S
ETTING TARTED

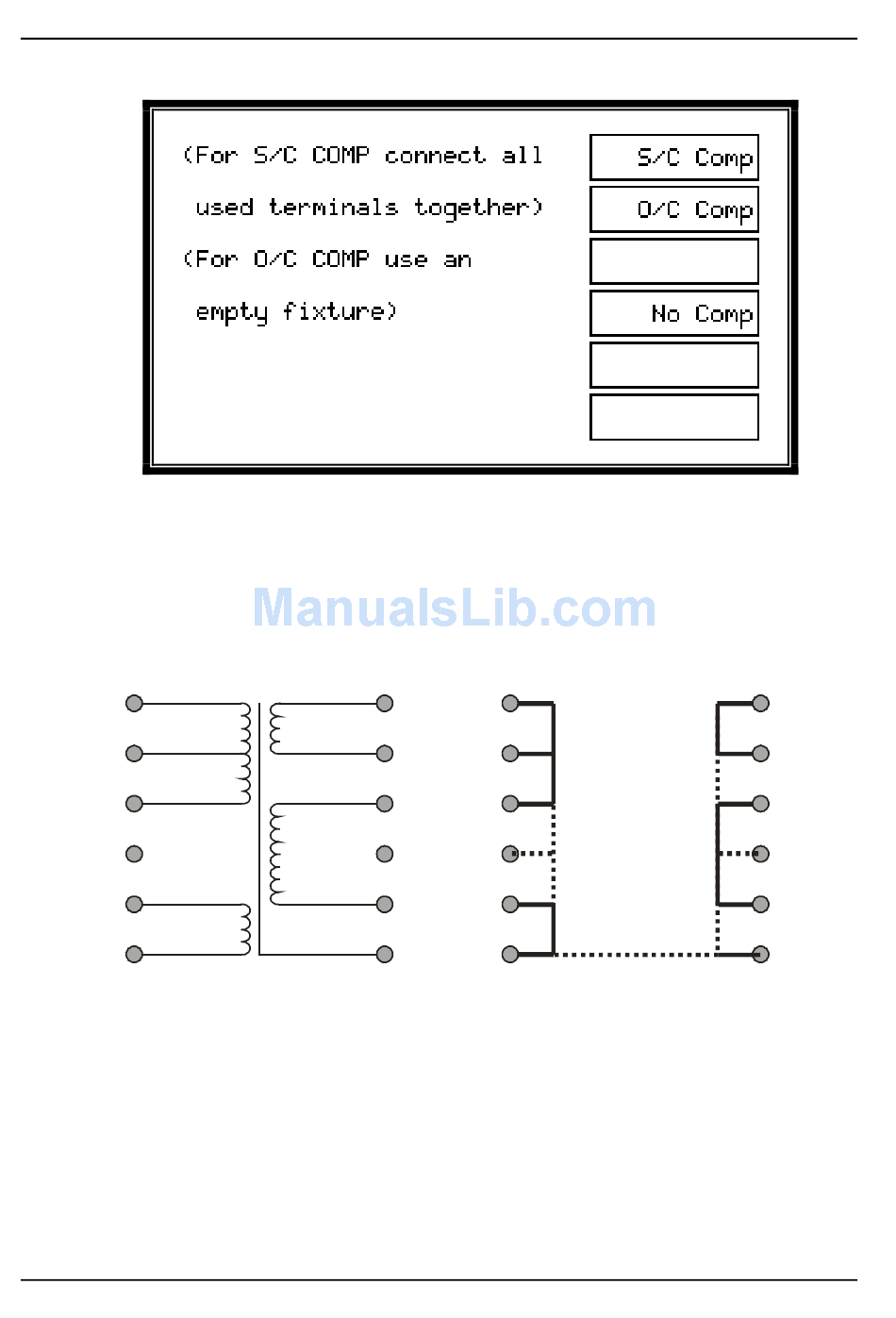

For S/C compensation, first make up a transformer bobbin with shorting links in
place of the windings:
To make a shorting bobbin, solder short pieces of wire across the relevant pins
(or all of the pins) a spare blank bobbin or complete transformer.
Transformer
Put the short-circuit bobbin into the fixture and
Press softkey 1 'S/C COMP' to begin short circuit compensation.
Remove the short-circuit bobbin but leave the fixture in place and
Press softkey 2 'O/C COMP' to begin open circuit compensation.
P 2-74
AGE
Shorting Bobbin for S/C compensation
V AT U
OLTECH I SER
M
ANUAL
