P
ROGRAM EDITOR

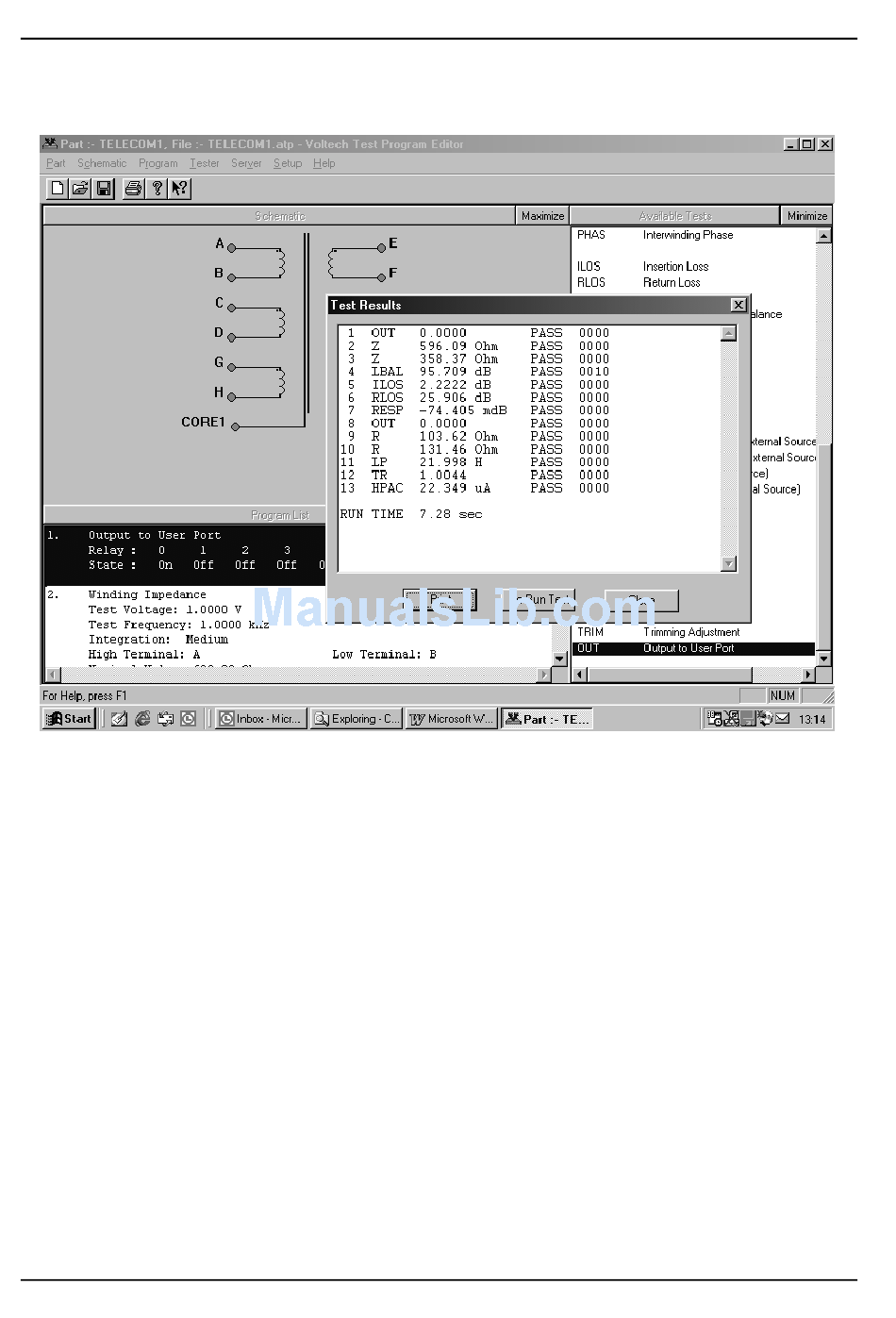

If you look at the test results screen shown above, you will see that test 4
(LBAL) contains a status error code of 0010. This error code indicates that
"The measurement had not settled in time". Although this test passed, it
indicates that a problem existed during the test sequence. In this particular
example, the fault was due to a poor connection to the core of the transformer.
The following table gives the error codes that can appear when using the run
facility in the Editor or when viewing on-line results with the Server. These
error codes can give specific help in modifying the test program, depending on
the tests used.
The error code is a 16-bit binary code, which is shown in hexadecimal notation
in the table below. The error codes indicate one single bit of the 16-bit code,
and therefore one or more errors could occur at the same time, which will be
shown as a full, 4-digit hexadecimal code. For example, if a voltage over-range
