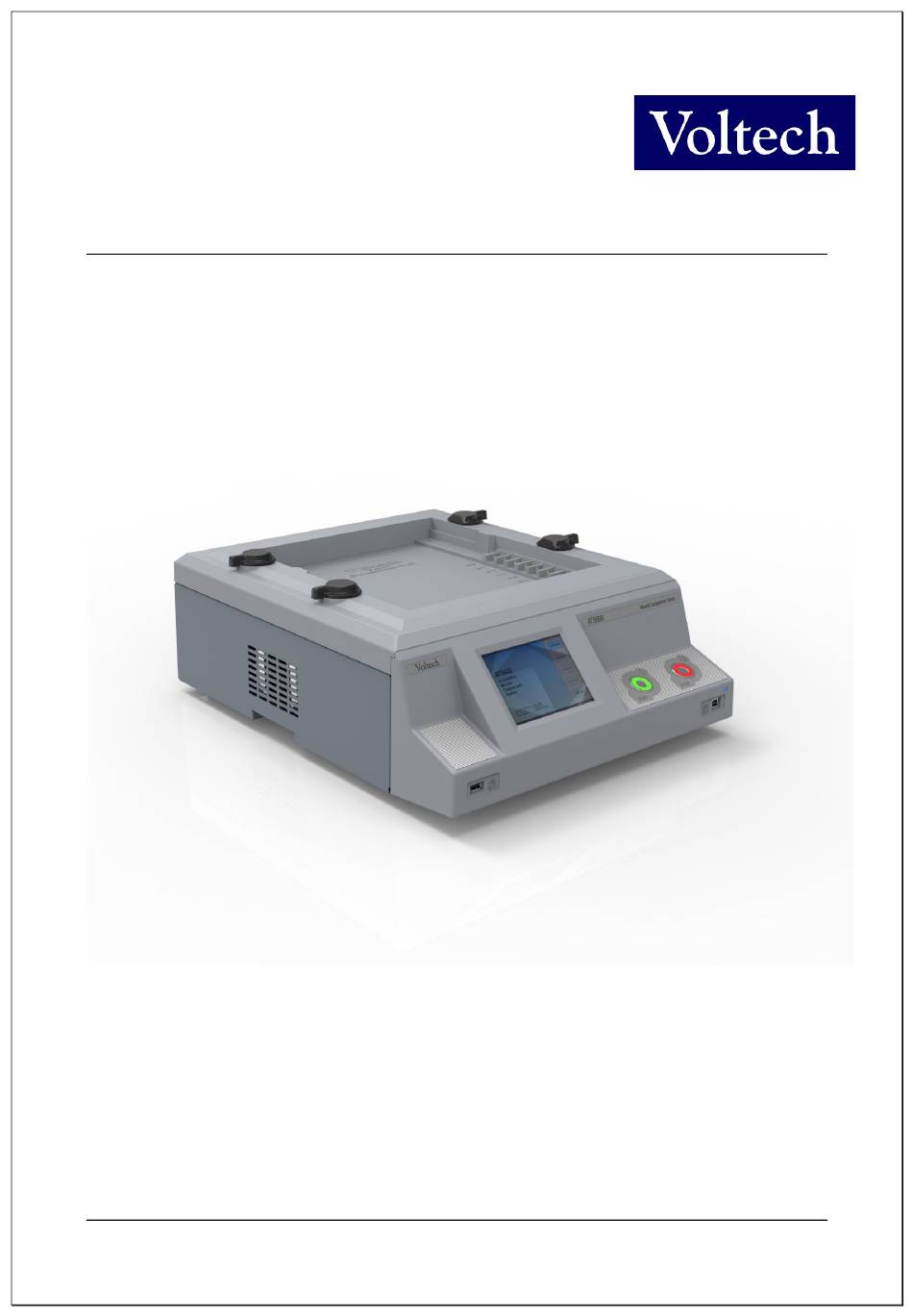

Page 1 VOLTECH INSTRUMENTS AT5600 Wound Component Tester User Manual AT5600 User Manual 98-119 issue 30 Page 1...
Page 2 This wound component tester should give you many years of reliable use. Should you experience any difficulty during the set up or use of your Voltech product, please do not hesitate to contact either your local supplier or one of our main offices.
Page 3: Table Of Contents
4.1.5. Touch Screen & Buttons ....................56 4.1.6. Interfaces ......................... 56 4.2. How Does the AT5600 Tester Run a Test? ................57 Getting Started ....................59 5.1. Installing the AT5600 ......................59 AT5600 User Manual 98-119 issue 30 Page 3...
Page 4 Constructing your own Safety System ................83 6.3. Safety Notices ......................... 84 6.4. A Typical Installation of a Safety System ................84 6.5. The AT5600 safety system user interface ................86 6.6. Constructing Safe Fixtures ..................... 87 6.7. DC1000 DC Bias Current Source ................... 87 6.8.
Page 5 Getting the Results ......................230 Troubleshooting ..................232 9.1. Measurement Error Codes ....................232 9.1.1. Test error codes ......................232 9.1.2. Editor Error Codes ......................233 9.1.3. Status Code Example ....................233 AT5600 User Manual 98-119 issue 30 Page 5...
Page 6 Ethernet Port ......................285 10.3.8. Front and Rear USB ‘A’ Ports ..................285 10.3.9. USB ‘B’ Port ....................... 285 10.4. Environmental Conditions ....................286 10.5. Mechanical ........................287 10.6. EMC Compliance ......................288 AT5600 User Manual 98-119 issue 30 Page 6...
Page 7 The Voltech Fixture System ....................297 13.2.1. Description of the Fixture System ................297 13.2.2. Compatible connection types ..................298 13.3. The Voltech 40 Socket Fixture ..................298 13.4. Making Fixture Connections – Kelvin Connections ............299 13.5. Compensation ........................301 13.5.1.
Page 8 AT5600 User Manual 98-119 issue 30 Page 8...
Page 9: Introduction
It will also help to get the most from the product by introducing all its features and capabilities. 1.1. AT5600 New Features The AT5600 is the next generation of AT Wound Component Testers offered by Voltech. New features include: • 2 x faster testing increases productivity. • Ethernet Port...
Page 10: How To Use This Manual
Important information that explains a general principal that should be understood in order to use the product effectively. If any information is not clear, then please visit the Voltech website for more information or contact us for assistance. Mode d'utilisation de ce manuel – Français L'icône suivante indique la convention utilisée dans l'ensemble de ce manuel afin...
Page 11: Verwendung Dieses Handbuchs - Deutsch
Información importante que explica un principio general que debe ser comprendido para usar el producto con eficacia. Si alguna información no aparece clara le rogamos visitar el sitio web de Voltech para mayor detalle o contactarnos para solicitar ayuda. AT5600 User Manual 98-119 issue 30...
Page 12: Come Usare Questo Manuale - Italiano
In caso di dubbi in merito a qualunque informazione contenuta nel manuale, visitare il sito web Voltech per chiarimenti o contattare gli uffici Voltech per richiedere assistenza. Zo gebruikt u deze handleiding – Nederlands...
Page 13: Sådan Bruger Du Denne Manual - Dansk
Viktig information som förklarar en allmän princip som måste förstås för effektiv användning av produkten. Om någon information är oklar kan du besöka Voltechs webbplats för mer information eller kontakta oss för att få hjälp. AT5600 User Manual 98-119 issue 30 Page 13...
Page 14 Všechny bezpečnostní informace je nutné prostudovat a pochopit. Důležité informace vysvětlující obecné principy, kterým je v zájmu efektivního použití produktu nutné porozumět. Pokud některé informace nejsou srozumitelné, navštivte web společnosti Voltech, kde naleznete další informace a můžete si vyžádat naši pomoc. AT5600 User Manual 98-119 issue 30...
Page 15: Hogy Kell Használni Ezt A Kézikönyvet - Magyar
Ważne informacje wyjaśniające ogólną zasadę, którą należy zrozumieć w celu właściwego użytkowania produktu. Jeśli podane informacje są niejasne, wówczas należy uzyskać dodatkowe informacje ze strony internetowej firmy Voltech lub skontaktować się z nami z prośbą o pomoc. AT5600 User Manual 98-119 issue 30...
Page 16: Kılavuzun Kullanımı - Türkçe
Bu türden bütün güvenlik bilgileri mutlaka okunmalı ve anlaşılmalıdır. Ürünün verimli bir şekilde kullanılması için anlaşılması gereken genel ilkeleri açıklayan önemli bilgiler. Tam olarak anlayamadığınız şeyleri lütfen Voltech sitesinde ayrıntılı olarak inceleyiniz ya da yardım almak için bizimle temas kurunuz. AT5600 User Manual 98-119 issue 30...
Page 17: General Safety Instructions
LECTRIC HOCK WARNING: The AT5600 must be connected to a safety ground (earth). Only insert the power lead into a socket with a protective ground contact. Ensure that the power lead is in good condition and free from damage before use.
Page 18: Consignes Générales De Sécurité - Français
DANGER ! Risque d'électrocution ATTENTION : L'AT5600 doit être connecté à une prise de terre de sécurité. Ne brancher le cordon d'alimentation que sur une prise ayant un contact de protection avec la terre. S'assurer que le cordon d'alimentation est en bon état et exempt de dommage avant utilisation.
Page 19: Allgemeine Sicherheitshinweise - Deutsch
5 x 20 mm, 2,0 A. Wartungsarbeiten dürfen nur von qualifiziertem Personal durchgeführt werden, das die Gefahr von Stromschlägen versteht. WARNUNG: Die AT5600 kann Spannungen erzeugen, die TÖDLICH sein können. Der Sicherheitsinterlock ist zum Schutz von Bedienern beim Einsatz mit einem von Voltech zugelassenen Sicherheitssystem vorgesehen.
Page 20: Instrucciones Generales De Seguridad - Español
¡PELIGRO! Riesgo de Choque Eléctrico ADVERTENCIA: El AT5600 tiene que ser conectado a una toma de tierra segura. Inserte el cable tomacorriente solo a una toma provista de un contacto protector de tierra. Asegúrese que el cable tomacorriente está en buenas condiciones y sin daños antes de usarlo.
Page 21: Istruzioni Generali Di Sicurezza - Italiano
PERICOLO! Rischio di scosse elettriche AVVERTENZA: l’AT5600 deve essere collegato a una rete provvista di messa a terra di protezione. Inserire il cavo di alimentazione solo in una presa munita di messa a terra di protezione.
Page 22: Algemene Veiligheidsinstructies - Nederlands
De veiligheidsvergrendeling is ontworpen om de veiligheid van gebruikers zeker te stellen bij gebruik met een door Voltech goedgekeurd veiligheidssysteem. Om de veiligheid van de gebruiker zeker te stellen moet deze vergrendeling altijd correct zijn aangesloten op een door Voltech goedgekeurd veiligheidssysteem.
Page 23: Generel Sikkerhedsvejledning - Dansk
En sikkerhedslåsemekanisme er udviklet til at sikre sikkerheden for operatører, når den anvendes med et Voltech-godkendt sikkerhedssystem. For at sikre operatørens sikkerhed skal denne lås altid være korrekt tilsluttet et Voltech- godkendt sikkerhedssystem. Du kan finde alle oplysninger i kapitel 6 i denne brugermanual.
Page 24: Allmänna Säkerhetsanvisningar - Svenska
De här driftanvisningarna måste följas. Kontakta återförsäljaren om du är osäker. FARA! Risk för elektriska stötar VARNING: AT5600 måste vara kopplad till en skyddsjordning (jord). Sätt endast i nätsladden i ett eluttag med en skyddande jordkontakt. Se till att nätsladden är i gott skick och inte har några skador före användning. Byt endast ut säkringar mot samma typ och märkning: 2.0AT 5X20 ANTISURGE.
Page 25: Yleiset Turvallisuusohjeet - Suomi
Vaihda sulakkeiden tilalle aina samantyyppiset ja luokitukseltaan vastaavat sulakkeet: 2,0 AT 5 × 20 VIRTAPIIKKISUOJAUS. Teetä huoltotyöt aina pätevillä työntekijöillä, jotka ymmärtävät sähköiskujen vaarat. VAROITUS: AT5600 voi synnyttää mahdollisesti TAPPAVIA jännitteitä. Turvalukitus on suunniteltu varmistamaan käyttäjien turvallisuus, kun sitä käytetään yhdessä Voltechin hyväksymän turvajärjestelmän kanssa. Käyttäjän turvallisuuden varmistamiseksi tämä...
Page 26: Obecné Bezpečnostní Pokyny - Ceština
2.0AT 5X20 ANTISURGE. Opravy a údržbu svěřte pouze kvalifikovaným pracovníkům, kteří chápou nebezpečí úrazu elektrickým proudem. UPOZORNĚNÍ: Zařízení AT5600 může generovat napětí, která mohou být SMRTÍCÍ. Bezpečnostní blokování je navrženo tak, aby zajistilo bezpečnost při použití s bezpečnostním systémem schváleným společností Voltech. Pro zajištění...
Page 27: Általános Biztonsági Utasítások - Magyar
FIGYELEM: Az AT5600 nagy feszültséget generálhat, amely adott esetben HALÁLT okozhat. A biztonsági reteszelés arra szolgál, hogy védje a kezelőket a Voltech által jóváhagyott biztonsági rendszer használata közben. A kezelő biztonsága érdekében e reteszelésnek mindig megfelelően csatlakoztatva kell lennie a Voltech által jóváhagyott biztonsági rendszerhez.
Page 28: Ogólne Instrukcje Bezpieczeństwa - Polski
ŚMIERTELNE napięcia. Zainstalowana jest blokada zabezpieczająca, aby zapewnić bezpieczeństwo operatorów podczas stosowania z systemem bezpieczeństwa atestowanym przez firmę Voltech. W celu zapewnienia bezpieczeństwa operatora blokada musi być zawsze właściwie podłączona do systemu bezpieczeństwa atestowanego przez firmę Voltech. Szczegółowe informacje znajdują się w rozdziale 6 niniejszej instrukcji użytkownika.
Page 29: Genel Güvenlik Talimatları - Türkçe
UYARI: AT5600, ÖLÜMCÜL olabilecek derecede voltaj üretebilir. Voltech onaylı güvenlik sistemleriyle birlikte kullanıldığında operatörlerin güvenliğini sağlamak için güvenli kilidi mevcuttur. Operatörün güvenliğini sağlamak için bu kilidin mutlaka Voltech onaylı güvenlik sistemlerinden birisine düzgün bir şekilde bağlı olması gerekmektedir. Konuyu ayrıntılı olarak bu kullanım kılavuzunun 6. Bölümünde bulabilirsiniz.
Page 30: Package Contents
1 x Certificate of Calibration 1 x AT5600 Thermal Cycle Test Certificate If there is anything missing from this list when you first unpack your new AT5600, then please contact us for an immediate replacement. AT5600 User Manual 98-119 issue 30...
Page 31: System Overview
2. System Overview 2.1. What is the AT5600? The AT5600 is the latest model in Voltech's AT series of wound component testers, offering enhanced performance. It is compatible with the same fixture system and PC software used by previous models, such as the ATi and AT3600.
Page 32: What Is The At5600 Used For
The AT5600 supports over 40 different types of tests. Check our website at www.voltech.com for details of new tests. Most of these tests can be added to the AT5600 within minutes by purchasing a simple key-code. AT5600 User Manual 98-119 issue 30...
Page 33: Front Panel Description
Press this button to stop running a test program. A red indicator will illuminate around the button when measurements have been stopped. (5) Power Indicator This indicates that the power supply to the instrument is switched on. AT5600 User Manual 98-119 issue 30 Page 33...
Page 34: Locking Knob
Separate sense and power connections allow for four wire (Kelvin) connections to the part under test so that test fixture connections are not included in the measurements. AT5600 User Manual 98-119 issue 30 Page 34...
Page 35: Rear Panel Description
(2) Safety Interlock Supplied protected by a cover plate, this connects to a safety device, such as a light curtain. When the connection is broken the AT5600 cannot produce any dangerous voltages. HIGH VOLTAGE MAY BE PRESENT (<=400Vpk). See chapter 6, Safety Systems. To gain access to the port, remove the cover plate using a screwdriver as shown.
Page 36 O V E R V I E W Removal and Replacement of a Cover Plate (4) Remote Port The Remote Port is used to electrically signal the status and control the AT5600 allowing external indicators (Running/Pass/Fail) and control inputs (Run/Stop). For more information see 10.3.3...
Page 37: Server Port
(9) Server Port This RS232 serial port if used for connection to a computer system running the Voltech AT Series Server software. It is normally only used for legacy connections where an AT5600 is being used to replace an AT3600 or ATi.
Page 38: Air Circulation
O V E R V I E W 2.6. Air Circulation The AT5600 uses side vents to draw in and expel air, helping to keep the internal components cool. Ensure that no other equipment is placed within 50mm of the vents to avoid overheating.
Page 39: Tilt Feet
O V E R V I E W 2.7. Tilt Feet The AT5600 comes with adjustable rear feet, allowing the unit to tilt for improved visibility of test pins. This is especially useful for operators working in specific seating arrangements or for legacy AT Tester users, this is to match the old AT3600 tilt positioning.
Page 40: A Typical Installation
(See chapter 14, AT Series Editor Software) • Requires no software programming skills or expertise. • Test conditions may be entered manually or chosen automatically by measuring a sample transformer. • Up to 150 user tests per program. AT5600 User Manual 98-119 issue 30 Page 40...
Page 41: Test Fixture
2.9.3. Test Fixture The test fixture acts as an interface between the spring probes of the AT5600 and the part under test. They can be made to order or easily customized from standard fixture kits to allow fast and efficient contacts to be made. See Chapter 13, Test Fixtures.
Page 42 C H A P T E R – S Y S T E M O V E R V I E W AT5600 User Manual 98-119 issue 30 Page 42...
Page 43: Using The At5600
Usage Overview The testing process on the AT5600 is as simple as: • Build a test fixture compatible with the AT5600 fixture bay. • Develop a test program using the AT Editor dotNet software. • Store the test program (ATP) in a centralized folder.
Page 44: Test Fixtures
4. A single fixture can be used for different transformer designs, but which all use the same bobbin / footprint. As well as the standard fixture system, custom fixtures are available from Voltech. Please see the Voltech website www.voltech.com for more information.
Page 45: Creating Test Programs - At Editor
The Test Program Editor supplied with the AT5600 allows the creation of test programs simply and easily without any need for software programming skills. Each test required for the program is selected from a list of ‘available tests’ by clicking with the mouse.
Page 46 Programs are stored on the Server for later retrieval. For full details of the AT Editor Software, see section 14, AT Series Editor Software. AT5600 User Manual 98-119 issue 30 Page 46...
Page 47: Utilizing Editor Test Programs
‘production’ use. Store the program in the AT Server program directory once a program has been developed. It shall then be made available to the AT5600 to load up and be ready to run through the AT5600 user interface.
Page 48 With the Editor and Server installed on the same PC, configuring the Server to use the same default program folder as the Editor is recommended. This way all the test programs are immediately available for use by the Editor and Server. AT5600 User Manual 98-119 issue 30 Page 48...
Page 49: Results Printing
A T 5 6 0 0 3.5. Results Printing The AT5600 can be configured to automatically print results at the end of each program run and the results can be printed using the PRINT soft key through the user interface as detailed in Section 8.
Page 50 A T 5 6 0 0 Note: 1. The report title. 2. The serial number of the AT5600 that is printing this report. 3. AT5600 Firmware Version. 4. The operator’s name as entered at the start of the batch. This line is omitted if no operator name has been entered.
Page 51: Recommended Configuration
• Usually requires an additional PC (which could be a portable) to be attached locally to (the USB or Auxiliary Port) one of the AT testers when a new program needs to be developed and evaluated. • . AT5600 User Manual 98-119 issue 30 Page 51...
Page 52: Operating The At5600 In Production Test
In robotic environments, the tester's Remote Port provides signals for control systems. For more details on interfacing with robotic systems, see Section 10.3.3. The AT5600 should be connected to a Server PC to enable full statistical process control, allowing results to be utilized for adjusting and monitoring manufacturing parameters.
Page 53: At5600 Functional Description
4. AT5600 Functional Description 4.1. Behind the Front Panel While it is not required to fully understand the internal workings of the AT5600 to use it effectively, gaining insight into its functionality can be helpful for troubleshooting and understanding its capabilities.
Page 54: Relay Switching Matrix
LO POWER (5V, 20-3M Hz) CONSTANT CURRENT (0-100mA) PROCESSORS There are six different test sources within the AT5600. The processors select which one is to be connected to the relay matrix as each test is executed. AT5600 User Manual 98-119 issue 30...
Page 55: Measurement Circuits
4.1.4. Measurement Circuits The AT5600 tester contains a variety of circuits, capable of performing all the following measurements: • Voltages from less than 1mV to greater than 7000V • Currents from nano-amps to amps •...
Page 56: Touch Screen & Buttons
RUN and STOP buttons. 4.1.6. Interfaces The AT5600 Interfaces include the USB ports, Ethernet, Remote, Auxiliary, User Port and Server Ports. See section 10.3 for full interface specifications. AT5600 User Manual 98-119 issue 30...
Page 57: How Does The At5600 Tester Run A Test
D E S C R I P T I O N 4.2. How Does the AT5600 Tester Run a Test? Programming of each test is done at a high level; it is not strictly necessary for you to know the details of how tests are executed within the tester. However, for some users this subject may be of interest, therefore a brief explanation has been included here.
Page 58 C H A P T E R – A T 5 6 0 0 F U N C T I O N A L D E S C R I P T I O N AT5600 User Manual 98-119 issue 30 Page 58...
Page 59: Getting Started
Below is the basic AT5600 mechanical setup: Place the AT5600 on a stable work surface where it will be used. For installation guidelines, refer to section 2.9, A Typical Installation for the overview of AT5600 system installation.
Page 60: Installing The At Editor Software
The Server software is typically installed on a separate PC from the Editor software. It is crucial that the Server PC remains continuously connected to the AT5600 to download test programs and save results. To set up the AT Server software: 1.
Page 61: Quick Start Tutorial
5.4. Quick Start Tutorial After you have installed the AT5600 together with the editor and server software packages as described in section 5.2 and 5.3, you may wish to follow through this tutorial to familiarize yourself with the system operation.
Page 62 9. Release the button. A wire will now connect terminal A to test node 9. Repeat this procedure to connect the other three terminals, B, C and D to nodes 7, 10 and 8. The screen should now look like this: AT5600 User Manual 98-119 issue 30 Page 62...
Page 63: Creating The Test Program
In the Fixture ID box, enter the name: ‘UNIVERSAL’ Click on ‘OK’ or press [Return] to accept the changes and close the dialogue box. You have now created a schematic layout of a four-terminal transformer. AT5600 User Manual 98-119 issue 30 Page 63...
Page 64 The schematic window showing the two windings. Right side: The available tests window listing all the tests available on your AT5600. (Any test that is not available shall be greyed out). Lower left: The Program window displaying the tests programmed so far.
Page 65 (Leave as the default - Medium) High terminal C Low terminal D Minimum 20 mΩ Maximum 171 mΩ Click on the ‘OK’ button. Again, the test and its parameters will appear in the ‘Program’ window. AT5600 User Manual 98-119 issue 30 Page 65...
Page 66 Finally, add the fourth test by double clicking the left mouse button, select ‘TR Turns Ratio’ from the ‘Available Tests’ window. At the dialogue box, enter the data required for the turn’s ratio test: Voltage Frequency 50 Hz Integration (Leave as the default - Medium) AT5600 User Manual 98-119 issue 30 Page 66...
Page 67 The lower left window should now contain the complete program. The scroll bars in this window enable you to view each test in the program in turn to check that it is correct. AT5600 User Manual 98-119 issue 30 Page 67...
Page 68 At the dialogue box, type in TUTORIAL as the part name. Click on the OK button to close the dialogue box and save the test program in a directory of your choice. AT5600 User Manual 98-119 issue 30 Page 68...
Page 69: Running The Program From The Editor
5.4.3. Running the Program from the Editor Having created the test program, it is now ready to run on your AT5600 under the control of the Editor. Before proceeding further, make sure that the AT5600 has been powered on and communications are correctly configured in the editor (see 14.3.3).
Page 70 S T A R T E D If there is no transformer is fitted, the results will have no meaning, but you have now successfully installed the AT5600 and the AT editor software. The results window will give you the options to: 1.
Page 71: Transferring The Program To The Server
5.4.4. Transferring the Program to the Server The Voltech Server software is supplied with every AT5600. The use of the Server software is required for handling and storage of test results and is recommended for handling large numbers of different test programs.
Page 72 This example shown is just the default directory. Running a PROGRAM from AT SERVER The next section of the Tutorial demonstrates running the program on the AT5600 tester from the Server store. Before proceeding to that section, if the Server and Editor are using the same...
Page 73 2. Loading a program from the server: A full description of the Front Panel operation is given in Chapter 8. Using the front panel of the AT5600, from the top-level menu, tap the soft key EXECUTE to change to the following display: Select the program from the list or tap the data entry box on the main screen.
Page 74 Connect the transformer to the fixture and press the Run button. When the tester has finished testing, the result shall be displayed as shown. 4. Viewing the Results: To view the test results, tap the RESULTS soft key; you will see the following display: AT5600 User Manual 98-119 issue 30 Page 74...
Page 75: Usb Printer Setup
S T A R T E D 5.5. USB Printer Setup The AT5600 can be configured to automatically print the test results at the end of each program run and the results. Automatic printing is configured as part of the test program using the Editor software.
Page 76 5. Press the Feed button, for less than one second, three times. This will access Mode 3. Customize Value Settings. Then press and hold the Feed button for more than one second. The printer shall print the following. AT5600 User Manual 98-119 issue 30 Page 76...
Page 77 8. Press the Feed button, for less than one second, two times. This will set the printer-to-Printer Class. Then press and hold the Feed button for more than one second. The printer shall print the following. AT5600 User Manual 98-119 issue 30 Page 77...
Page 78 9. At this point, the changes to the setting have been saved and you can turn off the printer. The print is now ready for use. 10. Plug the printer into the Front or Rear USB ‘A’ port on the AT5600. If the printer is configured correctly, the system will display the Printer icon on the front panel as shown below.
Page 79: Barcode Reader Setup
The touch screen will still allow you to enter any of the above in the normal manual way if you wish. The barcode reader simply connects to the USB-A port on the AT5600 (front or rear) and requires no extra power supply.
Page 80 Uppercase Characters ONLY “-“ Minus symbol “ “ Space Pease see updated sections of the manual. 8.1.14 Status bar icons 8.1.6.2+3+4+6 Description of the input screen where BARCODE reader can be used AT5600 User Manual 98-119 issue 30 Page 80...
Page 81: Safety Systems
The rear panels of both the AT5600 and certain accessories are equipped with a safety interlock connector, detailed in their respective user manuals. This connector ensures that tests cannot be executed unless the three safety interlock signals are in the ‘safe’...
Page 82: Recommended Safety Systems
This infrared light curtain serves as a barrier, protecting operators from the high voltages present during testing. Positioned in front of the AT5600, the curtain extends beyond the width of the tester, allowing unrestricted access for loading and unloading transformers.
Page 83: Constructing Your Own Safety System
3) The safety signals may be switched using Safety electromechanical relays, contactors, or any other switches operated by a device that detects an operator has breached the safety barrier(s). Voltech can supply a pre-made cable suitable for integrating the AT with your own system. Part number 250-030...
Page 84: Safety Notices
6.3. Safety Notices Operator Safety Users are responsible for ensuring that the AT5600 and its safety systems are installed, maintained, and operated according to all relevant safety guidelines and local legislation. While a light curtain provides essential safety, it is only part of the required safety measures.
Page 85 3 A control box, containing the power supply circuits, the switching electronics and the interface to the tester. The interconnection between each of the modules is via simple multi-way cables, which are easy for you to install. Typical installation is shown below. AT5600 User Manual 98-119 issue 30 Page 85...
Page 86: The At5600 Safety System User Interface
The AT5600 safety system user interface This section describes the various operating and warning messages that may be observed on the AT5600 when it is being used with a safety light curtain. Please consult the documentation supplied with your safety system for its own operating instructions.
Page 87: Constructing Safe Fixtures
This distance allows time for the light curtain to operate, and for the AT5600 to then shut off all generator signals, begore an operator’s hand reaches the UUT of any hazardous area of the fixture.
Page 88 C H A P T E R – S A F E T Y S Y S T E M S AT5600 User Manual 98-119 issue 30 Page 88...
Page 89: Tests And Test Conditions
To view the available tests on your device, navigate to the AT5600 display: SETUP > UNIT INFORMATION > TEST LIST If you own an AT5600 Standard, only 14 tests of the 40+ available will be installed. To try a specific test locked in your AT5600, please contact Voltech Support.
Page 90: Low Voltage Tests
Turns Ratio by As with Turns Ratio All windings Check windings have Inductance but used where there correct turns and is poor flux linkage phasing between windings. AT5600 User Manual 98-119 issue 30 Page 90...
Page 91 Selected Windings Finds phase shift Phase Angle transformers between Voltage and Current on a winding. PHAS Interwinding Audio & telecom Selected Windings Measures phase shift Phase Test transformers between a pair of windings AT5600 User Manual 98-119 issue 30 Page 91...
Page 92: High Voltage Tests
Power losses over transformers or Current the primary whole transformer. Transformers STRW Stress Line frequency & High One Winding (Usually Checks inter-turn Wattage Frequency the primary) insulation, magnetic Transformers material, and joints AT5600 User Manual 98-119 issue 30 Page 92...
Page 93: Dc1000 + Dc1000A Tests
ZB test. These tests require the use of one or more Voltech DC1000 Precision DC Bias Current Sources. Contact your Voltech sales office for details. 7.1.4. AC Interface Tests Test...
Page 94: Other Functionality Options
WAIT Wait test Introduce fixed duration Allows time for core or indefinite pause in demagnetisation or for user to program. manually fit load resistors or change wiring etc AT5600 User Manual 98-119 issue 30 Page 94...
Page 95: Self-Resonant Frequency
Note that stray fixture capacitance will add to the capacitance of the component and reduce the SRF. Performing compensation will remove the effect of stray fixture capacitance on the measurement of capacitance but cannot remove its effect on SRF. AT5600 User Manual 98-119 issue 30 Page 95...
Page 96: Explanation Of Integration
The Integration type is selected when the Test Program is created using the Editor Software. Each measurement result from the AT5600 is derived by making a sequence of consecutive sub-measurements and computing the mean of these sub- measurements. For example, a resistance test of the 10 sub-measurements below would report a mean value of 10.0 ohms: -...
Page 97 The larger the number of sub-measurements (n) the smaller will be the relative standard error, but the greater the time to get a result. The AT5600 provides for three levels of integration Short, Medium, and Long. The following table shows...
Page 98: Cty - Continuity
10kΩ is recommended for faster execution. For more details on programming the test, refer to the AT dotNET Editor manual (98-125, Ch. 2.5), and for test accuracy specifications, see section 10.2.1. AT5600 User Manual 98-119 issue 30 Page 98...
Page 99: R - Winding Resistance
To verify winding resistance, the tester applies a constant DC current to the selected winding. It measures both the current through and the voltage across the winding, calculating resistance by dividing the voltage by the current. AT5600 User Manual 98-119 issue 30 Page 99...
Page 100: Test Current
V = Volts (V) I = Current (A) Ω) R = Resistance ( Please also see AT dotNET Editor manual (98-125 2.5.4) for specific advice on programming the test10.2.1 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 100...
Page 101: Rls Or Rlp - Equivalent Series Or Parallel Resistance
Typically, when following an inductance test, you would use the same test conditions for the RLS or RLP test. However, if there is no preceding inductance test, select the test conditions according to the winding inductance value, as outlined in Section 7.7.2. AT5600 User Manual 98-119 issue 30 Page 101...
Page 102 C O N D I T I O N S For detailed guidance on programming this test, refer to the AT .NET Editor manual (98-125, section 2.5.3) and for test accuracy specifications, see section 10.2.2. AT5600 User Manual 98-119 issue 30 Page 102...
Page 103: Ls Or Lp - Inductance (Series Or Parallel Circuit)
LS or LP - Inductance (Series or Parallel Circuit) Where Used The AT5600 provides two primary methods to verify that a transformer has been assembled correctly: ensuring the proper number of primary and secondary turns, using the correct magnetic core material, and setting the appropriate air gap if required.
Page 104 Wherever possible, this table should be used for all inductance tests. The inductance range should be chosen based on minimum value of inductance expected. When choosing the test conditions, the following potential problems should be considered: AT5600 User Manual 98-119 issue 30 Page 104...
Page 105 In general, high values of inductance will have a high inter-turn capacitance and hence a low resonant frequency. Where there is a choice of test frequencies always use the lower value, to minimize any problems due to self-resonance. AT5600 User Manual 98-119 issue 30 Page 105...
Page 106 This can be a problem when trying to compare measurements made on commercially available impedance bridges, or component testers, with measurements made using the AT5600. The test signal in such bridges is usually determined within the instrument and is often at a fixed frequency and at a voltage level which is not guaranteed to be constant for all value of inductance.
Page 107: Lsb Or Lpb-Inductance With Bias Current (Series Or Parallel Circuit)
Parallel Circuit) Where Used With the LSB and LPB tests, the AT5600 offers two further ways to confirm that the transformer has been assembled properly, with the appropriate number of turns, the right grade of magnetic material for the core, and the correct air gap if required.
Page 108: Ql - Quality Factor
Section 7.7 based on the inductance value of the winding. For more details on test programming, refer to the AT dotNET Editor manual (98- 125, Section 2.5.8) and test accuracy specifications in Section 10.2.3. AT5600 User Manual 98-119 issue 30 Page 108...
Page 109: D - Dissipation Factor
For optimum accuracy and performance, use the test conditions chosen for capacitance in a later section of this chapter. Please also see AT dotNET Editor manual (98-125 2.5.9) for specific advice on programming the test 10.2.3 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 109...
Page 110: Ll - Leakage Inductance
'secondary' windings are short-circuited. During the measurement, the tester automatically compensates for the impedance of the wiring, connections, and relays in the shorting path to ensure accuracy. AT5600 User Manual 98-119 issue 30 Page 110...
Page 111 In this case, the user offset may be required to fully remove the errors and normalise the result to an LCR reading measured using a perfect short, which is not practical in production testing. AT5600 User Manual 98-119 issue 30 Page 111...
Page 112 T E S T C O N D I T I O N S Please also see AT dotNET Editor manual (98-125 2.5.10) for specific advice on programming the test 10.2.2 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 112...
Page 113: C - Interwinding Capacitance
For applications where the balance of winding capacitances is more important than individual capacitance values, such as in cases requiring matched capacitance across multiple windings, refer to the C2 test. AT5600 User Manual 98-119 issue 30 Page 113...
Page 114 Non-linear Capacitance Normally non-linearity in the stray capacitance of transformers is not a problem, and therefore capacitance is measured with as large a voltage as possible. AT5600 User Manual 98-119 issue 30 Page 114...
Page 115: Equivalent Circuit
The AT testers always use a parallel equivalent circuit for capacitance measurements. Please also see AT dotNET Editor manual (98-125 2.5.11) for specific advice on programming the test 10.2.2 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 115...
Page 116: Tr - Turns Ratio
TR - Turns Ratio Where Used The AT5600 provides two primary methods to verify that a transformer has been assembled with the correct number of primary and secondary turns: the Turns Ratio (TR) test or the Open-Circuit Voltage (VOC) test.
Page 117 Next, energize a secondary winding (possibly at a different voltage and / or frequency depending on its inductance) and measure the turns ratio between the various primaries. In this way windings, which should be matched are treated equally during the test. AT5600 User Manual 98-119 issue 30 Page 117...
Page 118: Best Practice For Centre Taps / Auto Transformers
A Best Practice set up – USE this configuration. All the LO terminals are defined as “A” The secondary is at the LO end of A-C ; SEC LO is at 0 V AT5600 User Manual 98-119 issue 30 Page 118...
Page 119 C O N D I T I O N S B, NON-OPTIMAL set up – AVOID this configuration. The secondary is at the HI end of A-C; hence SEC LO is not at 0V, potentially causing a common mode effect. AT5600 User Manual 98-119 issue 30 Page 119...
Page 120 (i.e., 11:10 or 10:11), and therefore limits of +5% and -5% would be suitable to detect the error. Please also see AT dotNET Editor manual (98-125 2.5.12) for specific advice on programming the test 10.2.4 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 120...
Page 121: Trl - Turns Ratio By Inductance
It helps detect issues such as tap-changer malfunctions, incorrect winding configurations, and open winding connections. The AT5600 offers two ways to verify that the transformer has the correct number of primary and secondary turns. Turns ratio by Voltage (TR) - ideal for signal pulse and switched-mode power ideal for signal, pulse, and switched-mode power transformers, where the magnetic conditions stay within the linear regions of the B-H curve.
Page 122: Setting The Test Parameters
5V, you should set 5V as your test signal. If you calculate V or V to be less than 1mV, you should set 1mV as your test signal. AT5600 User Manual 98-119 issue 30 Page 122...
Page 123 1, Measure the inductance and voltage on the primary. 2, Leaving the generator on, measure the secondary voltage 3, Connect the generator to the secondary at the voltage measured in step 2 and measure the inductance. AT5600 User Manual 98-119 issue 30 Page 123...
Page 124 (i.e., 11:10 or 10:11), and therefore limits of +5% and -5% would be suitable to detect the error. Please also see AT dotNET Editor manual (98-125 2.5.13) for specific advice on programming the test 10.2.5 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 124...
Page 125: Z, Zb - Impedance, Impedance With Bias
The test voltage is applied to the input winding, and the voltage and current measured. From the measured results the impedance is calculated. Please also see AT dotNET Editor manual (98-125 2.5.14+15) for specific advice on programming the test 10.2.23 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 125...
Page 126: R2 - Dc Resistance Match
Use the PC Editor’s ‘Measure’ button (together with a sample part) if you are unsure of the resistance values. Please also see AT dotNET Editor manual (98-125 2.5.16) for specific advice on programming the test 10.2.18 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 126...
Page 127: L2 - Inductance Match
Compensation can be used to eliminate these errors. The following table suggests suitable test conditions for different values of expected average inductance: AT5600 User Manual 98-119 issue 30 Page 127...
Page 128 Please also see AT dotNET Editor manual (98-125 2.5.17) for specific advice on programming the test 10.2.18 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 128...
Page 129: Equivalent Circuit
Note that, for any given winding, the inductance values for two circuits are not necessarily the same; this should be born in mind when specifying the test limits. AT5600 User Manual 98-119 issue 30 Page 129...
Page 130: C2 - Capacitance Match
1 nF 10 nF 1 KHz → 10 nF 100 nF 100 Hz → The Test Conditions for Capacitance Match Measurement When choosing the test conditions, the following potential problems should be considered: AT5600 User Manual 98-119 issue 30 Page 130...
Page 131 This will present no problems, as on most transformers the difference between the two values is usually negligible and can be ignored. Please also see AT dotNET Editor manual (98-125 2.5.18) for specific advice on programming the test 10.2.18 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 131...
Page 132: Gbal - General Longitudinal Balance
Since there are three standard methods for measuring CMRR, the GBAL test provides separate X and Y terminals for each of the two measurements. For more precise testing, Voltech offers the LBAL test, which is specifically designed for measuring longitudinal balance. This test is commonly used for audio and telecommunication transformers to verify their effective CMRR.
Page 133 C O N D I T I O N S 1) Preferred method (the method of the LBAL test, used by many transformer manufacturers) Measurement Energized Measured 2) IEEE 455 method (used in Canada, Europe, and ROW) Measurement Energized Measured AT5600 User Manual 98-119 issue 30 Page 133...
Page 134 20 log | VM1 / VM2 | + (optionally) compensation for test fixture scaling Please also see AT dotNET Editor manual (98-125 2.5.19) for specific advice on programming the test 10.2.19 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 134...
Page 135: Lbal - Longitudinal Balance
LBAL – Longitudinal Balance Where Used The longitudinal balance test is Voltech's preferred method to measure what is effectively the Common Mode Rejection Ratio of a transformer designed to connect to a balanced line. Two measurements are performed each by applying a voltage to the transformer and measuring the resulting voltage to calculate the CMRR.
Page 136: Ilos - Insertion Loss
Please also see AT dotNET Editor manual (98-125 2.5.21) for specific advice on programming the test 10.2.20 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 136...
Page 137: Fixturing And Programming Tip For Using Source Resistors
In a simple two wire conenction, this would be constructed on the fixture as below. Tests requiring the resistor would use the ARES-B nodes. You can still perform a DCR direct measurement of the inductor using the true A+B nodes. AT5600 User Manual 98-119 issue 30 Page 137...
Page 138 C O N D I T I O N S 4-Wire connections If you wish to maintain full 4 wire connection to A and B, then the above wiring configuration can be used. AT5600 User Manual 98-119 issue 30 Page 138...
Page 139: Resp - Frequency Response
RESP test is the preferred ILOS result that is closest to the limit. If any of the referred ILOS results are outside the specified limits, the RESP result is the preferred ILOS result that is furthest away from the limit. AT5600 User Manual 98-119 issue 30 Page 139...
Page 140 T E S T C O N D I T I O N S Please also see AT dotNET Editor manual (98-125 2.5.22) for specific advice on programming the test 10.2.21 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 140...
Page 141: Rlos - Return Loss
An ideal transformer would thus have a large RLOS value, which is counter intuitive, given the name. In the case of the AT5600, RLOS is calculated from a measurement of the complex impedance (Zl) on the energised winding, and the specified reference (Zr) impedance on the secondary.
Page 142 C O N D I T I O N S The impedances used are complex, where Please also see AT dotNET Editor manual (98-125 2.5.23) for specific advice on programming the test 10.2.22 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 142...
Page 143: Angl - Impedance Phase Angle
Keep in mind that inductive components will produce a positive phase angle, while capacitive components will yield a negative phase angle. AT5600 User Manual 98-119 issue 30 Page 143...
Page 144 100 mΩ to 10 mΩ 50 mA 10 mΩ 1m Ω Please also see AT dotNET Editor manual (98-125 2.5.24) for specific advice on programming the test 10.2.24 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 144...
Page 145: Phas - Interwinding Phase
10 kΩ 1 kΩ 1 kΩ 100 Ω 0.5 V 100 Ω 10 Ω 100 mV 10 Ω 1 Ω 10 mV 1 Ω 100 mΩ 1 mV 100 mΩ 10 mΩ AT5600 User Manual 98-119 issue 30 Page 145...
Page 146 B, if the Limits are 40 Deg to 60 Deg then the mean is 50 Deg and the result will be in the range -130 deg to +230 deg. Please also see 10.2.25 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 146...
Page 147: Out - Output To User Port
1 to turn the appropriate relay drivers on and 1 to turn them back off. Please also see AT dotNET Editor manual (98-125 2.5.26) for specific advice on programming the test, AT5600 User Manual 98-119 issue 30 Page 147...
Page 148: Ir - Insulation Resistance
Hi-Pot test. The standard industry voltage for IR tests is 500V DC, but the AT5600 offers flexibility with a voltage range of 100 V to 7 kV DC, depending on your requirements.
Page 149 Specifying the Test Limits While the AT5600 is capable of measuring insulation resistance values exceeding 1GΩ, it is generally unnecessary to specify such a high value. Lower values, such as 100MΩ, are sufficient for most applications and will speed up the test process.
Page 150 Please also see AT dotNET Editor manual (98-125 2.5.34) for specific advice on programming the test and 10.2.11 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 150...
Page 151: Hpdc - Dc Hi-Pot (Eht)
10% when performing reduced-time testing, to provide additional security for the test. IEC742 has been replaced by IEC61558, which specifies 1 second for production testing. Details are available on the IEC website (http://www.iec.ch) AT5600 User Manual 98-119 issue 30 Page 151...
Page 152 Please also see AT dotNET Editor manual (98-125 2.5.27) for specific advice on programming the test 10.2.12 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 152...
Page 153: Hpac - Ac Hi-Pot (Eht)
If the test voltage cannot be maintained or the current exceeds the acceptable limit, the test is recorded as a failure. When programming the AT5600, you can configure the following parameters to match the transformer specifications: • Voltage: 100 V to 5 kV RMS.
Page 154 'FAIL,' trigger a red indicator, send a failure signal to the server (if connected), and sound an alarm (if enabled). This method complies with the production requirements of EN 61558-1 (1998), UL 1411 (5th Edition), and other related standards. AT5600 User Manual 98-119 issue 30 Page 154...
Page 155 The sudden breakdown will occur so quickly that there is not enough time for this to be reflected in a larger RMS measurement. This is a hardware trip for any measurement >10 mA AT5600 User Manual 98-119 issue 30 Page 155...
Page 156 This ensures that the whole transformer is electrically controlled during the test, and fully discharged after. This prevents hot switching of the relays in the AT which can potentially cause damage on the subsequent tests if floating voltages are left. AT5600 User Manual 98-119 issue 30 Page 156...
Page 157 C O N D I T I O N S AT5600 HIPOT generator and the IEC standard The AT5600 is designed to meet the transformer testing requirements of IEC 62368-1 and IEC 61010-1 and the UL equivalents. These standards do not require power for production Hi-pot testing of the transformers, but only specify the test voltage and duration of test ( also referred to as the “dwell time.”)
Page 158: Surg - Surge Stress
More impulses may also help find defective wire insulation. For multiple impulses, The AT5600 will return the LOWEST result of all the impulses programmed. For each impulse, the AT5600 will charge an internal capacitor to the programmed test voltage.
Page 159 C H A P T E R – T E S T S A N D T E S T C O N D I T I O N S AT5600 User Manual 98-119 issue 30 Page 159...
Page 160 C O N D I T I O N S Transient Analysis During the decay phase after the impulse has been fired, the AT5600 measures both the voltage amplitude along the transient, and the time over the decay. The AC waveform (and frequency/amplitude/decay rate) is a function of the characteristics of your UUT and the AT5600 Capacitors used to discharge the DC spike.
Page 161 Volt/turn ratio. To prevent damage to the UUT, or to the AT5600, the SURG test should always be applied to the winding with the greatest number of turns. You should also check that the design of the other windings that will be energized can withstand the induced voltage.
Page 162: Watt - Wattage
During the Wattage test, a constant, user specified AC voltage is applied across the winding in question. All other windings are held open circuit during this test. The AT5600 measures the voltage across and current through the winding. The Wattage is the product of the in-phase components of the current and voltage.
Page 163: Watx - Wattage (External Source)
This test uses an external source to provide the test signal which must be coupled to the tester via a Voltech AC Source Interface (contact your supplier for details). See the AC Source Interface user manual or the Editor help system for details of how to configure external AC sources for use with an AT5600.
Page 164 Trimming of requested Voltage (when using Step-up transformer with AC Interface) When using the AC interface with a step-up transformer, the AT5600 uses the Class D drive (used on VOC MAGI WATT and STRW) and routes it thought the AC interface. The AT5600 calculates a nominal value for the voltage needed to get the target value based on your requested voltage, and the programmed ratio of your chose transformer.
Page 165: Strw - Stress Watts
Any breakdown is identified by an increase in the measured power. Please also see AT dotNET Editor manual (98-125 2.5.40) for specific advice on programming the test 10.2.15 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 165...
Page 166: Strx - Stress Watts (External Source)
See the AC Source Interface user manual or the Editor Help system for details of how to configure external AC sources for use with an AT5600. This test is suitable for large line frequency bobbin wound and some HF transformers. It checks the integrity of inter-turn insulation, the magnetic material, and joints at higher than the normal operating voltage.
Page 167 Trimming of requested Voltage (when using Step-up transformer with AC Interface) When using the AC interface with a step-up transformer, the AT5600 uses the Class D drive (used on VOC MAGI WATT and STRW) and routes it thought the AC interface. The AT5600 calculates a nominal value for the voltage needed to get the target value based on your requested voltage, and the programmed ratio of your chose transformer.
Page 168: Magi - Magnetizing Current
MAGI - Magnetizing Current Where Used The AT5600 provides two main methods to verify that a transformer is correctly assembled, ensuring the proper number of primary and secondary turns, the right core material, and the correct air gap (if required).
Page 169 T E S T C O N D I T I O N S In addition, to give you the quickest test execution time, the AT5600 uses an intelligent switch-on sequence which minimizes such transient effects and gets the transformer to steady operating conditions much faster.
Page 170: Magx - Magnetizing Current (External Source)
MAGX - Magnetizing Current (External Source) Where Used The AT5600 offers two basic alternative ways to confirm that the transformer has been assembled properly, with the appropriate number of primary and secondary turns, the right grade of magnetic material for the core, and the correct air gap if required.
Page 171 Trimming of requested Voltage (when using Step-up transformer with AC Interface) When using the AC interface with a step-up transformer, the AT5600 uses the Class D drive (used on VOC MAGI WATT and STRW) and routes it thought the AC interface. The AT5600 calculates a nominal value for the voltage needed to get the target value based on your requested voltage, and the programmed ratio of your chose transformer.
Page 172: Voc - Open Circuit Voltage
VOC - Open Circuit Voltage Where Used The AT5600 provides basic alternative ways to verify that a transformer is assembled correctly, with the appropriate number of primary and secondary turns. Open circuit voltage (VOC) testing is the preferred method for line-frequency transformers that operate across the full B-H curve, including its non-linear regions.
Page 173 In this case the AT EDITOR dialog box will ask for a Nominal Voltage. The AT uses this nominal voltage as a starting position for testing. The AT5600 will then attempt to trim V to get the exact value current that is needed.
Page 174: Vocx - O/C Voltage (External Source)
7.38. VOCX - O/C Voltage (External Source) Where Used The AT5600 offers two basic alternative ways to confirm that the transformer has been assembled properly, with the appropriate number of primary and secondary turns. Open circuit voltage measurements are the preferred tests for line frequency transformers, designed to operate over the full extent of the B-H curve, including the non-linear regions.
Page 175 Trimming of requested Voltage (when using Step-up transformer with AC Interface) When using the AC interface with a step-up transformer, the AT5600 uses the Class D drive (used on VOC MAGI WATT and STRW) and routes it through the AC interface. The AT5600 calculates the nominal value for the voltage needed to get the target value based on your requested voltage, and the programmed ratio of your step-up transformer.
Page 176: Lvoc - Low Voltage Open Circuit
B-H curve, never extending beyond the linear region. On the AT5600, high voltage open circuit tests (VOC or VOCX) are available for testing line frequency transformers at their operating point (up to 270V, 1 kHz and 2A).
Page 177 See 7.13 for best practice advice on minimising common mode effects when testing auto transformers or centre taps. Please also see AT dotNET Editor manual (98-125 2.5.29) for specific advice on programming the test 10.2.10 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 177...
Page 178: Ilk - Leakage Current
The voltage and frequency applied are normally the operating voltage and frequency of the transformer. The energisation voltage can be 0-270V, 20-1500 Hz. AT5600 User Manual 98-119 issue 30 Page 178...
Page 179 T E S T C O N D I T I O N S Please also see AT dotNET Editor manual (98-125 2.5.36) for specific advice on programming the test 10.2.26 for test accuracy specification AT5600 User Manual 98-119 issue 30 Page 179...
Page 180: Lsbx - Inductance With External Bias (Series Circuit)
IR HPAC, HPDC, in the same program. The AT5600 and AT Editor will check for this and warn you if you are attempting to do this. The AT3600 and old AT Editor did not give this warning, but it is still a valid best practice for the AT3600.
Page 181: Lpbx - Inductance With External Bias (Parallel Circuit)
IR HPAC, HPDC, in the same program. The AT5600 and AT Editor will check for this and warn you if you are attempting to do this. The AT3600 and old AT Editor did not give this warning, but it is still a valid best practice for the AT3600.
Page 182: Zbx - Impedance With External Bias
IR HPAC, HPDC in the same program. The AT5600 and AT Editor will check for this and warn you if you are attempting to do this. The AT3600 and old AT Editor did not give this warning, but it is still a valid best practice for the AT3600.
Page 183: Acrt - Ac Hi-Pot Ramp
A N D T E S T C O N D I T I O N S 7.44. ACRT - AC HI-POT Ramp This test has been withdrawn and is no longer supported AT5600 User Manual 98-119 issue 30 Page 183...
Page 184: Dcrt - Dc Hi-Pot Ramp
A N D T E S T C O N D I T I O N S 7.45. DCRT - DC HI-POT Ramp This test has been withdrawn and is no longer supported AT5600 User Manual 98-119 issue 30 Page 184...
Page 185: Acvb - Ac Voltage Break Down
A N D T E S T C O N D I T I O N S 7.46. ACVB - AC Voltage Break Down This test has been withdrawn and is no longer supported. AT5600 User Manual 98-119 issue 30 Page 185...
Page 186: Dcvb - Dc Voltage Break Down
A N D T E S T C O N D I T I O N S 7.47. DCVB - DC Voltage Break Down This test has been withdrawn and is no longer supported AT5600 User Manual 98-119 issue 30 Page 186...
Page 187: Wait - Fixed Duration Or Indefinite Test Delay
Once the requested time has elapsed the program test sequence is automatically resumed. During the delay time the interlock is still active and a break to the interlock will result in a controlled program halt as normal. AT5600 User Manual 98-119 issue 30 Page 187...
Page 188 OUT test to switch relays. In this case the AT5600 interlock is deactivated once all signals are confirmed to be OFF, to then allow the user to touch the UUT to make amendments to the UUT.
Page 189: Pwrf - Power Factor Test
In the case of a passive transformer, this PF will usually be between 0 and 1, with the ideal being a power factor of 1. The AT5600 allows you to make a direct measurement of this important parameter in two ways.
Page 190 All other windings are held open circuit during this test. The AT5600 measures the voltage across the winding and current through the winding. The Wattage is also measured as the product of the current and voltage waveforms.
Page 191 C H A P T E R – T E S T S A N D T E S T C O N D I T I O N S AT5600 User Manual 98-119 issue 30 Page 191...
Page 192: Front Panel Operation
Introduction 8.1.1. The Touch Screen Display The AT5600 has a colour touch screen display. Light finger pressure will activate any touch sensitive area. The format of the screen display is similar throughout the menu system and consists of a screen title at the top, a main window on the left, and a soft-key area on the right.
Page 193: Run And Stop Buttons
8.1.3. User Input User input can be made into the AT5600 using the touch screen, buttons, or other accessories connected to available interface ports. The touch screen provides the ability to tap and select items, and to display a soft keyboard for typing.
Page 194: Splash Screen
8.1.5. Power On Once the AT5600 has initialized and powered up, it will wait for user input. This is the top-level menu for access to all the major functions available. PART LIST Load a test program from AT SERVER software RESUME re-load the last test program if “FINISH”-ed accidentally...
Page 195: Part List
• SYNC P/N LIST – Gets a fresh list of programs from the AT Server. This list (but NOT the actual program) is stored in the AT5600 so only needs SYNC if the list changes. This speeds up navigation. The actual ATP test program will always be fetched from the Server, never stored in the unit.
Page 196: 8 . 1 . 6 . 1 E N T E R I N G A P A R T N U M B E R
The program name can be typed (or partially typed) at the keyboard or selected from the list. Tap the soft key ACCEPT when program is selected. You can clear any selection by clicking on the “X” to the right of the selection box. AT5600 User Manual 98-119 issue 30 Page 196...
Page 197 Note that these options are part of the program, not global settings for the AT, allowing you to enable different options for each transformer as required. If you have chosen to enable any of these, then on program load, the following screen will be shown. AT5600 User Manual 98-119 issue 30 Page 197...
Page 198: 8 . 1 . 6 . 2 S E R I A L N U M B E R
The barcode or USB keyboard input can only recognise the same characters as those that could be entered by the manual front panel keyboard method. These are Numerals Uppercase Characters ONLY “-“ Minus symbol “ “ Space. AT5600 User Manual 98-119 issue 30 Page 198...
Page 199: 8 . 1 . 6 . 3 B A T C H
The USB barcode or USB keyboard input can only recognise the same characters as those that could be entered by the manual front panel keyboard method. These are Numerals Uppercase Characters ONLY “-“ Minus symbol “ “ Space AT5600 User Manual 98-119 issue 30 Page 199...
Page 200: 8 . 1 . 6 . 4 O P E R A T O R
The USB barcode or USB keyboard input can only recognise the same characters as those that could be entered by the manual front panel keyboard method. These are Numerals Uppercase Characters ONLY “-“ Minus symbol “ “ Space AT5600 User Manual 98-119 issue 30 Page 200...
Page 201: 8 . 1 . 6 . 5 C O M P E N S A T I O N
These show the date and time of compensation. See “ ” at the end of this section. AUTOMATIC COMPENSATION STORAGE Use the active soft keys to enter the sub menu- for each compensation type. AT5600 User Manual 98-119 issue 30 Page 201...
Page 202 Tap the REMOVE button to clear any Compensation already applied. Tap the BACK soft key to return to the previous menu. When the AT5600 has completed the short circuit compensation process, the following screen will appear. Tap the BACK soft key to return to the previous menu.
Page 203 Tap the BACK soft key to return to the previous menu. Tap the REMOVE button to clear any Compensation already applied. When the AT5600 has completed the open circuit compensation process, the following screen will appear. Tap the BACK soft key to return to the previous menu.
Page 204 When the LOAD soft key is tapped, the following screen shall appear: Follow the on-screen instruction then tap the RUN button to run Load compensation. When the AT5600 has completed the load compensation process, the following screen will appear. Tap the BACK soft key to return to the previous menu.
Page 205 Each AT5600 will store the last valid compensation in its memory for the last 2000 programs. Only one stored compensation is allowed per test program.
Page 206 This is because any changes to test signals for frequency, or even adding extra tests, or re- ordering them, would render the stored compensation invalid. The AT5600 silently checksums your test program to confirm the program has not changed and that any stored compensation is still valid.
Page 207: 8 . 1 . 6 . 6 R U N S C R E E N
8 . 1 . 6 . 6 R u n S c r e e n Once a program is loaded into the AT5600, connect the transformer to the fixture and press the Run button to begin testing the transformer.
Page 208 (the green icon indicates that barcode entry is allowed). This barcode scan can be done directly on this screen WITHOUT the need to go into the sub menu. SCHEMATIC see section 8.1.6.8. FINISH returns to the top-level screen AT5600 User Manual 98-119 issue 30 Page 208...
Page 209: 8 . 1 . 6 . 7 R E S U L T S
PAGE UP used to scroll up the list. PAGE DOWN used to scroll down the list. PRINT used to print the results if USB printer attached. BACK Return to testing mode. AT5600 User Manual 98-119 issue 30 Page 209...
Page 210: 8 . 1 . 6 . 8 S C H E M A T I C
The grey boxes 1-20 represent the AT Test nodes. The number inside these represent your programmed transformer terminals. In the above example the transformer pin “1P1” should be connected to node 17, and so on. AT5600 User Manual 98-119 issue 30 Page 210...
Page 211 Remember that the connection polarity of these is important. The DC1000 high output should be connected to the light-yellow node. The DC1000 low output to the dark yellow node. AT5600 User Manual 98-119 issue 30 Page 211...
Page 212 Remember that the connection polarity of these is important. The ACIF high output should be connected to the light red node. The ACIF low output to the dark red node. AT5600 User Manual 98-119 issue 30 Page 212...
Page 213: Self-Test
Before commencing system test, please ensure that there is no fixture fitted and nothing is touching any of the test nodes on the top surface of the AT5600. The self-test shall only run if the Safety Interlock is in the safe condition.
Page 214 BACK – return to main menu. If there is a failure found in the self-test, follow the instruction outlined in section 14.8 for a listing of the results and contact your Voltech supplier for service. AT5600 User Manual 98-119 issue 30...
Page 215: Set-Up
O P E R A T I O N 8.1.8. Set-Up Set up allows the adjustment of the AT5600 options that effect the way the unit runs tests and stores results. You may change the System parameter at any time. Tap the SET UP soft key in the top-level screen.
Page 216: Sound
The SOUND soft-key changes the way the internal Beeper sounds or to turn off the sound for functions such as Failure indicator, Pass indicator, Soft-keyboard sound. ACCEPT change the internal beeper settings. CANCEL return to the previous screen, without accepting the changes. AT5600 User Manual 98-119 issue 30 Page 216...
Page 217: Clock
Set the time and date accordingly then tab the ACCEPT to save changes and returns to the previous screen. ACCEPT save the changes and returns to the previous screen. BACKSPACE clear the last character entered. CANCEL return to the previous screen without accepting changes. AT5600 User Manual 98-119 issue 30 Page 217...
Page 218: Server
TCP/IP(Ethernet.) If you choose TCP/IP for Ethernet, then enter the IP of the PC running the AT SERVER software. ACCEPT save changes and return. CANCEL return to the previous screen without changes. AT5600 User Manual 98-119 issue 30 Page 218...
Page 219: Network
O P E R A T I O N 8.1.12. Network This soft key allows the user to configure the way the AT5600 connects to your internal network, if using Ethernet. When the DHCP is selected the AT5600 shall acquire an available IP address from your network automatically.
Page 220: Compatibility
AT3600 results, whilst still applying your usual Pass/FAIL limits as needed. How does it work? If compatibility mode is enabled on an AT5600, then on a program download, the AT5600 will request the average results of any previous PASS AT3600 test data that is already stored in the dotNET AT Server.
Page 221 3, On the AT5600 under SETUP > COMPATIBILITY, set AT3600 Compatibility mode to ON and ACCEPT 4, Connect the AT5600 to the same dotNET SERVER, and load the same test program into the AT5600 5, The compensation screen with give you the usual SHORT and OPEN compensation options, run these as normal if needed.
Page 222: 8 . 1 . 1 3 . 2 L A N G U A G E
8 . 1 . 1 3 . 2 L a n g u a g e This allows you to change to change the AT5600 languages into other languages. At the time of writing this is only a choice of English or Chinese More languages will be added in future.
Page 223: Unit Information
If you would like to try any of the tests you currently do not own, please contact us and we can issue a 30-day demo code to enable them for you to try. AT5600 User Manual 98-119 issue 30 Page 223...
Page 224: Status Bar Icons
Second is the COMMUNICATIONS icon. This is shown when the unit is communicating with the AT SERVER to send test results, or when the AT is being controlled by the AT EDITOR. AT5600 User Manual 98-119 issue 30 Page 224...
Page 225 KEYBOARD Icon This is shown when a valid USB keyboard is available on the USB-A port. BARCODE READER Icon This is shown when a valid barcode reader is available on the USB-A port. AT5600 User Manual 98-119 issue 30 Page 225...
Page 226: Testing Wound Components
8.2. Testing Wound Components 8.2.1. A Typical Workflow The below shows the basic test execution flow, and the possible sequence of user inputs (set in the AT EDITOR program options) during testing. AT5600 User Manual 98-119 issue 30 Page 226...
Page 227 C H A P T E R 8 – F R O N T P A N E L O P E R A T I O N AT5600 User Manual 98-119 issue 30 Page 227...
Page 228: Traceability
A) printed to USB printer. And/or B) Saved with any results to CSV, MS SQL, or MS ACCESS, if the Save Results to the Server option is enabled in the ATP program. AT5600 User Manual 98-119 issue 30 Page 228...
Page 229: Stop On Fail Function
“false” FAIL results caused by misconnection from being recorded to the Server. It can also save time on longer test programs with genuine fails. See below for description of this functionality. AT5600 User Manual 98-119 issue 30 Page 229...
Page 230: Getting The Results
If the “Send results to Server” program option has been set, then the results will be sent back and recorded in the server software. AT5600 User Manual 98-119 issue 30 Page 230...
Page 231 14.5.1) then a printout will automatically be sent to the USB printer. The PRINT soft key can also be used to manually trigger a print of the results, even if printing is not enabled in the test program. AT5600 User Manual 98-119 issue 30 Page 231...
Page 232: Troubleshooting
If the test fails, then a list of all the failure that the self-test found shall be listed in the Results. If the AT5600 fails, the Self-Test then please contact your nearest Voltech service centre or Voltech technical support providing the details of the self-test failures.
Page 233: Editor Error Codes
0003 (i.e., both bits 0 and 1 are set, so the binary value is 0000000000000011). If a test has been interrupted, then an additional code is set in bits 12-15 of the status code. AT5600 User Manual 98-119 issue 30 Page 233...
Page 234: Status Error Codes
An over-temperature interrupt has terminated the test; unit has become too hot. An auxiliary fault interrupt has terminated the test; this can be created by an accessory attached to the peripheral port. Unit rebooted during the test sequence. AT5600 User Manual 98-119 issue 30 Page 234...
Page 235: Common Error Codes
UUT to the 50-ohm output impedance of the LPG (Low Power Generators.) See section 4.1.5 for a technical description of this effect, which is common to any LCR meter too. See also our webpage on this. https://www.voltech.com/applications/at5600-0020-status-error-codes/ AT5600 User Manual 98-119 issue 30 Page 235...
Page 236: Correcting Errors
See section 10.3.5 for details of the safety interlock interface. 9.2.2. Temperature error If the AT5600 gets too hot, then an error message indicating an Over Temperature shall be displayed in the error message window. Overheating can be caused by many factors.
Page 237: Voltage Present Error
AT5600 for any faults. If the AT5600 is found not to be faulty (i.e., passed self-test) then the cause of this error must either. 1. An external source connected incorrectly.
Page 238: 10. Specifications
Please note that specifications are based on use of LONG integration. Use of SHORT or MEDIUM will be faster, as these use less samples, so can give more error. See 7.3 for explanation of integration. Page 238 AT5600 User Manual 98-119 issue 30...
Page 239: Low Voltage Tests
3 MHz 0.20% Bias Impedance ANGL -360 ° ° 1 mV 20 Hz 3 MHz 0.05 ° Phase Inter-winding PHAS -360 ° ° 1 mV 20 Hz 3 MHz 0.05 ° Phase Page 239 AT5600 User Manual 98-119 issue 30...
Page 240: High Voltage Tests
6 kW 5 kHz WATX Wattage 100 mW 600 V 20 Hz 1.00% (Ext. Source) Stress 6 kW 5 kHz STRX Wattage 100 mW 600 V 20 Hz 1.00 % (Ext. Source) Page 240 AT5600 User Manual 98-119 issue 30...
Page 241 +/- 100 uA +/- (2.5% +/- 0.01% / kHz) of test signal. Tests in BOLD MAGX VOCX WATX STRX - for use with AC INTERFACE. LSBX LPBX ZBX - for use with DC1000 / DC1000A. Page 241 AT5600 User Manual 98-119 issue 30...
Page 242: Accuracy Specifications - Available Tests
- Maximum Ω Ω Ω Ω- Ω Ω <1 -10k >50k Resistance R Test current I=1/R V=R*100u Where: V = Volts (V) I = Current (A) Ω) R = Resistance ( Page 242 AT5600 User Manual 98-119 issue 30...
Page 243: Ls, Lp, Rls, Rlp, Ll And C Tests
= 0.08 % + (0.2 % ∗ �� (�� & ��) �� ) where: is the test frequency (Hz) is the measured voltage (V) is the measured current (A) is the measured Q factor. Page 243 AT5600 User Manual 98-119 issue 30...
Page 244: Ql And D Tests
�� = 0.2 % ∗ [�� )] (�� ) �� where: is the measured current (A) is the measured Q factor. is the measured D factor. Page 244 AT5600 User Manual 98-119 issue 30...
Page 245: Tr Test
= 0.1 % + ( �� where: is the test frequency (Hz) is the measured primary voltage (V) is the measured secondary voltage (V) is the measured turns ratio (Primary/Secondary) Page 245 AT5600 User Manual 98-119 issue 30...
Page 246: Trl Test
(%) is the accuracy of the secondary inductance (%) To calculate the accuracies of the primary and secondary inductances, use the formula for LS accuracy given in 10.2.2. Page 246 AT5600 User Manual 98-119 issue 30...
Page 247: Magi Test
= 0.08 % + ( 0.001 % ∗ �� 0.01 % �� = 0.03 % + ( ) + (2.0 % ∗ �� where: is the test frequency (Hz) is the measured current (A) Page 247 AT5600 User Manual 98-119 issue 30...
Page 248: Magx Test (External Source)
(Hz) is the measured current (A) During a MAGX test the AT5600 automatically applies the test voltage to the part under test and checks that the voltage has stabilized before recording measurements. The time that the voltage takes to stabilize will vary with the source type used and the nature of the part under test.
Page 249: Voc Test
= 0.08 % + ( 0.001 % ∗ �� 0.01 % �� = 0.03 % + ( �� where: is the test frequency (Hz) is the measured voltage (V) Page 249 AT5600 User Manual 98-119 issue 30...
Page 250: Vocx Test (External Source)
(Hz) is the measured voltage (V) During a VOCX test the AT5600 automatically applies the test voltage to the part under test and checks that the voltage has stabilized before recording measurements. The time that the voltage takes to stabilize will vary with the source type used and the nature of the part under test.
Page 251: Lvoc Test
= 0.08 % + ( 0.00001 % ∗ �� 0.01 % �� = 0.03 % + ( �� where: is the test frequency (Hz) is the measured voltage (V) Page 251 AT5600 User Manual 98-119 issue 30...
Page 252: Ir Test
= 3.20 % + ( �� = 0.5 % + ( 0.001 % ∗ �� where: is the measured current (A) is the measured IR value (MΩ) Page 252 AT5600 User Manual 98-119 issue 30...
Page 253: Hpdc Test
(%) is the correction for current level (%) where: �� = 3.20 % �� = 0.08 % �� 0.0001 % �� where: is the measured current (A) Page 253 AT5600 User Manual 98-119 issue 30...
Page 254: Hpac Test
HPAC Test The accuracy of the test voltage is 3% +/-50V. The AC Hipot transformer system on the AT5600 has a VA rating of 250 VA. The accuracy of the measured current is based on the chosen test conditions, and is given by: ��...
Page 255: Lsb And Lpb Tests
= 0.08 % + ( �� where: is the test frequency (Hz) is the measured voltage (V) is the measured current (A) is the bias current (A) is the measured Q factor. Page 255 AT5600 User Manual 98-119 issue 30...
Page 256: Watt And Strw Tests
(A) is the power factor of the load. �� and: �� = �� where: is the measured power (W) is the product of test voltage and magnetizing current. Page 256 AT5600 User Manual 98-119 issue 30...
Page 257: Watx And Strx Tests (External Source)
(W) is the product of MAGX and VOCX results. When performing either of these tests, the AT5600 automatically applies the test voltage to the part under test and checks that the voltage has stabilized before recording measurements. The time that the voltage takes to stabilize will vary with the source type used and the nature of the part under test.
Page 258: Surg Test
�� = 3.00 % �� 250 % ) + ( 0.001 % ∗ �� = 2.0 % + ( �� where: is the programmed peak voltage (V) Page 258 AT5600 User Manual 98-119 issue 30...
Page 259: Max Programmable Surg Voltage
Vout = (7000 * Luut) / (Luut + 50) where Luut = UUT Series Inductance in uH This reduction is because there is a 50uH inductor in the AT5600 to protect the unit in the case that the SURGE is discharged into a dead short.
Page 260: L2, C2 And R2 Tests
Y measurement (%) Refer to the accuracy specifications for the LS, C and R tests to determine the accuracy of the X and Y measurements (10.2.2 and 10.2.1) and simply add them together. Page 260 AT5600 User Manual 98-119 issue 30...
Page 261: Gbal Test
�� 0.01 �� 0.01�� where: is the test frequency (Hz) is the measured input voltage (V) is the measured output voltage (V) Page 261 AT5600 User Manual 98-119 issue 30...
Page 262: Lbal And Ilos Tests
�� 0.01 �� 0.01 �� where: is the test frequency (Hz) is the measured input voltage (V) is the measured output voltage (V) Page 262 AT5600 User Manual 98-119 issue 30...
Page 263: Resp Test
�� 0.01 �� 0.01 �� where: is the test frequency (Hz) is the measured input voltage (V) is the measured output voltage (V) Page 263 AT5600 User Manual 98-119 issue 30...
Page 264: Rlos Test
�� and: is the measured voltage (V) is the measured current (A) is the real part of the reference impedance (Ω) real is the imaginary part of the reference impedance (Ω) imag Page 264 AT5600 User Manual 98-119 issue 30...
Page 265: Z And Zb Test
� + [0.03 % ∗ � �] �� where: is the test frequency (Hz) is the measured voltage (V) is the measured current (A) is the bias current (A) Page 265 AT5600 User Manual 98-119 issue 30...
Page 266: Angl Test
0.01 �� = 0.03 + �� 0.000003 �� = 0.03 + �� where: is the test frequency (Hz) is the measured voltage (V) is the measured current (A) Page 266 AT5600 User Manual 98-119 issue 30...
Page 267: Phas Test
= 0.05 ∗ �� − �� where: is the test frequency (Hz) is the measured primary voltage (V) is the turns ratio between the primary and secondary. Page 267 AT5600 User Manual 98-119 issue 30...
Page 268: Ilk Test
= 0.1 % + ( 0.001 % ∗ �� 0.00001 % �� = 0.1 % + ( �� where: is the test frequency (Hz) is the measured current (A) Page 268 AT5600 User Manual 98-119 issue 30...
Page 269: Lsbx And Lpbx Tests
= 0.08 % + ( �� where: is the test frequency (Hz) is the measured voltage (V) is the measured current (A) is the bias current (A) from DC1000 is the measured Q factor. Page 269 AT5600 User Manual 98-119 issue 30...
Page 270: Zbx Test
� + (0.03 % ∗ � �) �� where: is the test frequency (Hz) is the measured voltage (V) is the measured current (A) from DC1000 is the bias current (A) Page 270 AT5600 User Manual 98-119 issue 30...
Page 271: Acrt Test
C H A P T E R – S P E C I F I C A T I O N S 10.2.29. ACRT Test This test has been withdrawn and is no longer supported Page 271 AT5600 User Manual 98-119 issue 30...
Page 272: Dcrt Test
C H A P T E R – S P E C I F I C A T I O N S 10.2.30. DCRT Test This test has been withdrawn and is no longer supported Page 272 AT5600 User Manual 98-119 issue 30...
Page 273: Acvb Test
C H A P T E R – S P E C I F I C A T I O N S 10.2.31. ACVB Test This test has been withdrawn and is no longer supported Page 273 AT5600 User Manual 98-119 issue 30...
Page 274: Dcvb Test
C H A P T E R – S P E C I F I C A T I O N S 10.2.32. DCVB Test This test has been withdrawn and is no longer supported Page 274 AT5600 User Manual 98-119 issue 30...
Page 275: Pwrf Test
Apf = 1.00 % * ( (SQRT (1-PF^2) ) / PF) where: is the test frequency (Hz) is the measured voltage (V) is the measured current (A) is the power factor of the load. Page 275 AT5600 User Manual 98-119 issue 30...
Page 276: Interface Specifications
No connection As RS232 is now a legacy protocol for communications, it is it highly likely that customers using RS232 on the AT5600 will use a USB to RS232 converter to interface with your PC. As the AT5600 generates high voltages and is used in environments where high voltage and EMC noise is present, we recommend using an optically ISOLATED USB-RS232 converter.
Page 277: Auxiliary Port
– S P E C I F I C A T I O N S 10.3.2. Auxiliary Port RS232 interface for connection to a PC running the Voltech editor software. 9-pin male D-type connector Signal name Signal name No connection...
Page 278: Remote Port
Mirrors the unit buzzer to a digital signal. 9-pin male D-type connector Signal name Signal name BEEP !BUSY / Bin0 !PASS / Bin1 !RUN !FAIL / BinStrb !STOP Signals with a name starting with ! are active Lo. Page 278 AT5600 User Manual 98-119 issue 30...
Page 279 !STOP Input (Pin 9) The !STOP input is an active Lo input with an internal pull-up resistor. The active-going edge of this input halts all AT5600 activity, turning off all signal sources. To use this with an ‘emergency stop’ switch, wire the switch between this input and 0V.
Page 280 Example – using footswitch with Remote Port. A footswitch can be used to trigger a program RUN from the remote port. This gives a simple foot pedal to trigger RUN on the AT5600 (also compatible with AT3600) Voltech no longer supply this assembly, but the parts are freely available from the following places.
Page 281: Peripheral Interface
S P E C I F I C A T I O N S 10.3.4. Peripheral Interface This interface is for connection only to an approved Voltech accessory. Do not try to make other connections to this interface as damage may occur. 15-pin female D-type connector...
Page 282: Safety Interlock
The HVOP is an analog voltage output which can be as high as 400V. The HVIP is a corresponding input voltage. All the high voltage test signals used by the AT5600 are derived from this input. In the ‘safe’ condition HVOP is linked back into HVIP (PIN 3-7 Shorted) LB0 and LB1 (Pins 5 and 9) These are the two digital control signals.
Page 283: User Port
S P E C I F I C A T I O N S 10.3.6. User Port The User Port is positioned on the rear panel of the AT5600 and contains six open-collector relay drive outputs. The relay drives are switched on and off by the OUT test, inserted into your test program sequence.
Page 284 User Relay Drive Outputs (pins 1, 2, 3, 6, 7, 8) All the User Relay Drive Outputs have the following equivalent circuit: Specification: Relay coil resistance: > 150Ω Maximum output current: 80 mA per output Page 284 AT5600 User Manual 98-119 issue 30...
Page 285: Ethernet Port
Also supports USB Keyboard or USB Barcode reader meeting the HID-USB protocol. See website for details. https://www.voltech.com/applications/barcode-scanner-usb-hid/ 10.3.9. USB ‘B’ Port A standard USB 2.0 type ‘B’ interface used to connect the AT5600 to a PC running the Voltech editor software. Page 285 AT5600 User Manual 98-119 issue 30...
Page 286: Environmental Conditions
As with any measuring equipment, the unit must be powered on for at least 30 minutes to become thermally stable, and SELF TEST run to confirm unit integrity. Humidity 10% to 80% RH non-condensing Page 286 AT5600 User Manual 98-119 issue 30...
Page 287: Mechanical
432mm Height: 199mm Depth: 572mm The fixture bay on the top surface of the AT5600 accepts Voltech fixture plates (see chapter 13). The maximum static weight over a 100cm area in the centre of a fixture is 5.0Kg Page 287...
Page 288: Emc Compliance
Supplimentary Information: The product herewith complies with the requirements of the EMC Directive 2004/108/EC the Low Voltage Directive 2006/95/EC Signed for on behalf of Voltech Instruments Dr John Ford, Managing Director 21 May 2014 Page 288 AT5600 User Manual 98-119 issue 30...
Page 289: 11. Maintenance
11.1. Air Filters The AT5600 houses two air filters that filter the air going through its cooling fans. These filters will be cleaned during a service and calibration (if returned to a Voltech service centre), and if done annually, this is normally enough to maintain the air flow through the instrument.
Page 290: Removing The Air Filters
Ingun (UK) Ltd Part Number GK S113 204 300 R 1502. The test pins on the bottom of the test fixture can also tarnish with age and accrue dirt and grease from the manufacturing environment. Voltech recommends Chemtronics Pow-R-Wash VZ for cleaning the test pins/ https://www.chemtronics.com/pow-r-wash-vz 11.3.
Page 291 C H A P T E R – M A I N T E N A N C E AT5600 User Manual 98-119 issue 30 Page 291...
Page 292: 12. Warranty And Service
Customer and that for a period of one year (12 months) from such time Voltech will repair or replace any Product which does not comply with this warranty PROVIDED ALWAYS THAT the Company’s liability...
Page 293: Service And Calibration
It shall be deemed to exclude all other warranties and conditions whether express or implied and whether arising by common law statute or otherwise. Voltech reserve the right to waive this benefit in any event where it is clear upon inspection that the cause of the failure is due to customer misuse.
Page 294: Accessories
If you require any cables, fixtures, or fuses in addition to those supplied with your AT5600, please contact your local Voltech supplier. The Voltech part numbers for the parts supplied with your unit are given in the section 1.4 on page 17 of this manual.
Page 295 C H A P T E R – W A R R A N T Y A N D S E R V I C E AT5600 User Manual 98-119 issue 30 Page 295...
Page 296: 13. Test Fixtures
The full fixture system user manual part number 98-028 is available from the Voltech website. The AT5600 can perform an extremely comprehensive series of tests on a wide variety of wound components. To utilize this capability fully it is recommended that test fixtures are constructed to suit each part to be tested.
Page 297: The Voltech Fixture System
13.2.1. Description of the Fixture System The Voltech AT Series fixture system allows you freedom and flexibility when considering your fixturing needs. All fixtures are mounted on fixture boards, which are available as a blank fixture plate and as a fixture kit which contains parts to help you.
Page 298: Compatible Connection Types
This fixture may be used for convenient wiring to existing fixtures or as a means of connecting flying leads and clips for use in developing test programs or testing parts in a design laboratory. AT5600 User Manual 98-119 issue 30 Page 298...
Page 299: Making Fixture Connections - Kelvin Connections
The ‘common’ lead length is shown as AA’ and BB’ in the diagram below. AT5600 User Manual 98-119 issue 30 Page 299...
Page 300 SENSE terminals are all on the inside of the fixture area. IMPORTANT: Kelvin four terminal connections are generally advised to be used in all test fixtures but they are essential for impedance measurements less then 1Ω. AT5600 User Manual 98-119 issue 30 Page 300...
Page 301: Compensation
In addition to the open and short circuit correction, the AT5600 has been enhanced to provide load correction feature , like high end LCR Meters, which...
Page 302: Compensation Summary - Available Tests
VOCX Wattage (AC Interface) WATX Stress Wattage (AC Interface) STRX Leakage Current Insulation Resistance Hi-Pot (DC) HPDC Hi-Pot (AC) HPAC Surge Stress SURG Output to User Port Power Factor PWRF Wait WAIT AT5600 User Manual 98-119 issue 30 Page 302...
Page 303: Equipment Required
Nominal Value, is then entered into the test program in the Load Compensation box. The results returned by the AT are then adjusted to compensate any stray parasitic from the system. i.e., Standard Reference Component. AT5600 User Manual 98-119 issue 30 Page 303...
Page 304 Program for Load Compensation) 2. When the AT5600 performs a Load Compensation, it measures say 120 nH. The ratio of Nominal Value / AT Measured Results is stored in the AT5600’s memory as the Load Compensation Ratio. Example, this case 100nH / 120 nH = 0.833.
Page 305: Compensation Failures And Pass / Fail Limits For Compensation
OC fixture is much larger than the insulation DC R value. Both limits include the internal impedance and leakage of the AT5600 itself and the customer fixture being used. The “Kelvin Pre-Check” feature (see the AT Editor program options) can also be used to confirm that each kelvin pair is closed as extra assurance before the compensation is run.
Page 306: General Notes
13.6.1. Beware of High Voltages The AT5600 can apply DC voltages up to 7000 V DC and AC voltages up to 5000 V AC during a test. This must be kept in mind when constructing test fixtures. If possible, always design the fixture with the nodes that experience the same high voltages grouped together.
Page 307: Kelvin Connections
The test pins on the bottom of the test fixture can also tarnish with age and accrue dirt and grease from the manufacturing environment. Voltech recommends Chemtronics Pow-R-Wash VZ for cleaning the test pins/ https://www.chemtronics.com/pow-r-wash-vz AT5600 User Manual 98-119 issue 30...
Page 308: 14. At Series Editor Software
The AT Editor user manual has now been removed from this manual and published as a separate standalone document. The basic instruction on Firmware updates, Self-test and customising the AT5600 using the Editor have been left in this section, but also are in the main AT Editor manual too.
Page 309: Firmware Upgrades
Connect AT EDITOR to AT5600 using USB from PC to the AT5600 USB-B port. If you have not already done so you will need to install the free AT5600 USB drivers for the AT5600 The At5600 will then show up in Windows Device Manager under COM ports.
Page 310 During the process, the unit will reboot and may appear blank; This is normal. In the unlikely event that the editor display shows an ‘ERROR’ or ‘FAIL’ dialogue box, before the download is complete (the AT5600 screen may also appear all white, blue, or red), then try repeating the entire procedure from step (c) Should the error persist then contact Voltech.
Page 311: Self-Test
Before commencing system test, please ensure that there is no fixture fitted and nothing is touching any of the test nodes on the top surface of the AT5600. The self-test shall only run if the Safety Interlock is in the safe condition.
Page 312 A prompt shall be displayed when the Self-Test is complete, as shown below. g) If the self-test detects a failure, a Self-Test Fail shall pop-up, contact your Voltech supplier for service. Please include the self-test log file, SelfTest.xml, with your inquiry for service.
Page 313: Customize Tester
To upgrade the AT5600 with new tests. a) Run the AT EDITOR software b) Connect AT EDITOR using USB (preferred) or RS232 comms to the AT5600. c) On the Editor, select Tester >Send Key Code. d) The following pop-up window shall appear.
Page 314: 15. At Series Server Software
For the new dotNET AT Server (V4.xx) please see 98-122 - AT Server dotNET user manual For the legacy AT Server (V3.xx) please see 98-092 - AT Server Legacy manual Both are free to download from www.voltech.com/support/downloads/ AT5600 User Manual 98-119 issue 30 Page 314...
Page 315: 16. Change Log
L O G Chapter 16. Change Log Please find below change history for this user manual and the AT5600 firmware and AT Series software. All four of these items are free to download from our website, free of charge, for all users.
Page 316: At5600 User Manual
5.2 Removed outdated sections, replaced window software to AT Editor software. 6.2.1 Added download page for Safety Interlock Cable Manual. 7.4 Removed outdated information on CTY & R Test between AT3600 and AT5600. 7.14 Updated TR & TRL test description for clarity.
Page 317 Version 25 9.1.4 added section on commonly seen status error codes. Update some images to match newer AT5600 GUI. Version 24 10.1.2 MAGI WATT VOC STRW now back to 40 Watts Maximum to match AT3600.
Page 318 7.37 Added note about using VOC with constant current settings. 8.xxx Updated all of chapter 8 for the new GUI on V1.000.000 of the firmware. 10.3.3 Added details of Voltech Foot switch to REMOTE port section. 15.5.5.3 Added explanation for IDs used in the 4 server database tables.
Page 319: At5600 Firmware + Software
C H A N G E L O G 16.2. AT5600 Firmware + Software Release notes are now only published online. For AT5600 Firmware https://www.voltech.com/support/at5600-support-home/at5600-firmware-release- notes/ For AT Editor and AT Server Software https://www.voltech.com/support/at5600-support-home/at-editor-and-server-updates/ AT5600 User Manual 98-119 issue 30 Page 319...
Page 320 No part of this publication may be produced, stored in a retrieval system, or transmitted in any form, or by means, electronic, mechanical photocopying, recording or otherwise without prior written permission of Voltech. AT5600 User Manual 98-119 issue 30 Page 320...

This manual is also suitable for:

At3600

Voltech AT5600 User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Voltech AT5600

Summary of Contents for Voltech AT5600
