Choosing Test Conditions
The source and load resistors are not shown on the Editor schematic. They
are switched in circuit using an OUT test that must be inserted in the program
before the GBAL test. (The relay patterns associated with inserting and
removing fixture resistors have deliberately not been included in the GBAL test
dialogue for two reasons: a) it would make the dialogue too complicated, and
b) it is not always necessary - e.g. in the case of a fixture where the resistors
are permanently fitted in circuit).

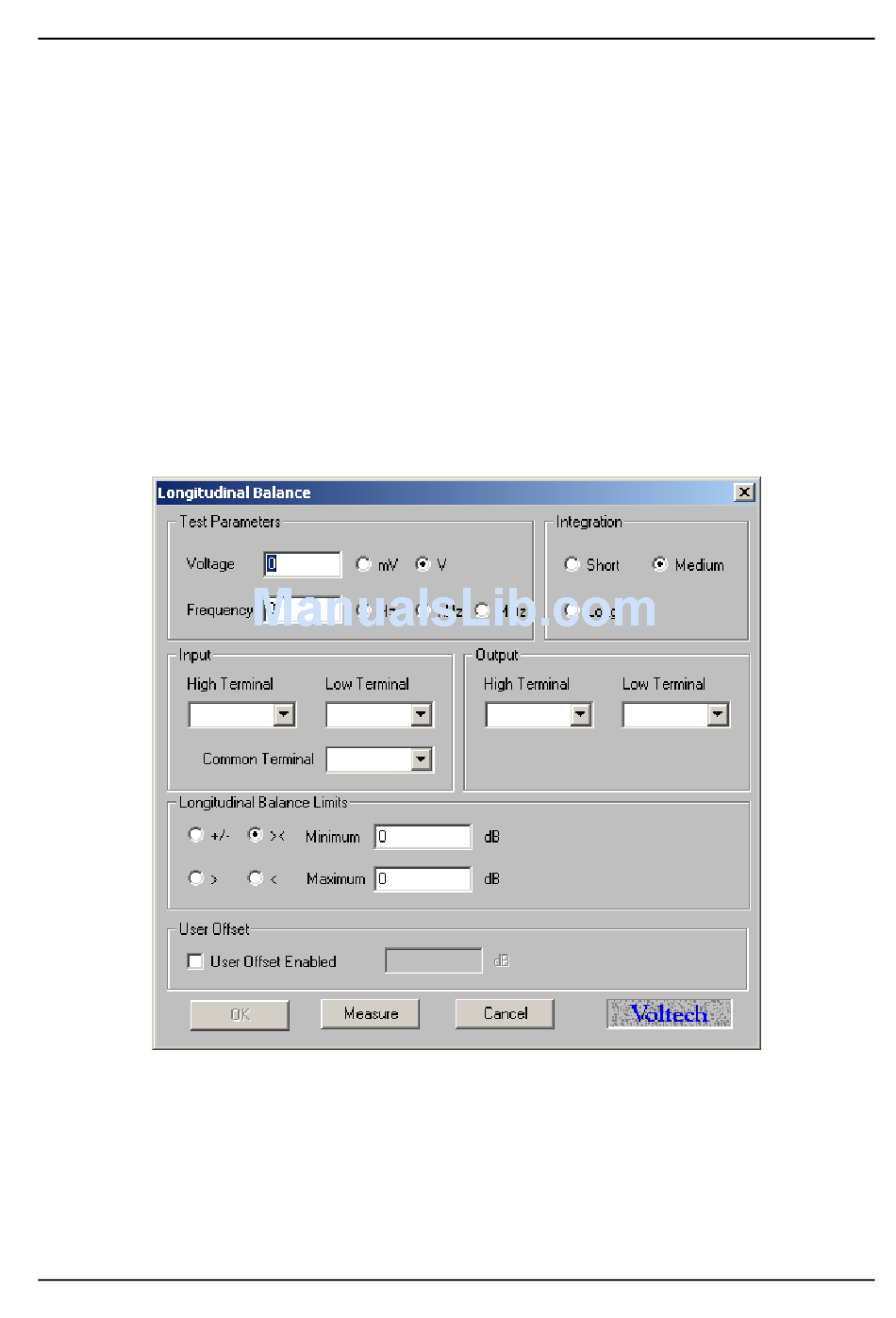

Programming the Test Using the PC Test Editor
The voltage and frequency are usually determined by the final application of
the part under test.
Select the integration period that is normally 'Medium'
Enter the required terminal names:
Terminals (X) - the energized winding.
