1.8.1 Creating Programs - The Editor

The test program is, simply, the list of tests that you wish to apply to your
transformer.
Individual transformers will each have their own program, but as an example, a
typical program for a three winding switch-mode power supply transformer
could be as follows:
Program:
Resistance
Resistance
Resistance
Inductance
Turns Ratio
Turns Ratio
Insulation Resistance
The Test Program Editor, supplied with your tester, allows you to create such a
program, without software programming skills. Each test required for the
program is selected from a list of 'available tests' by clicking with the mouse.

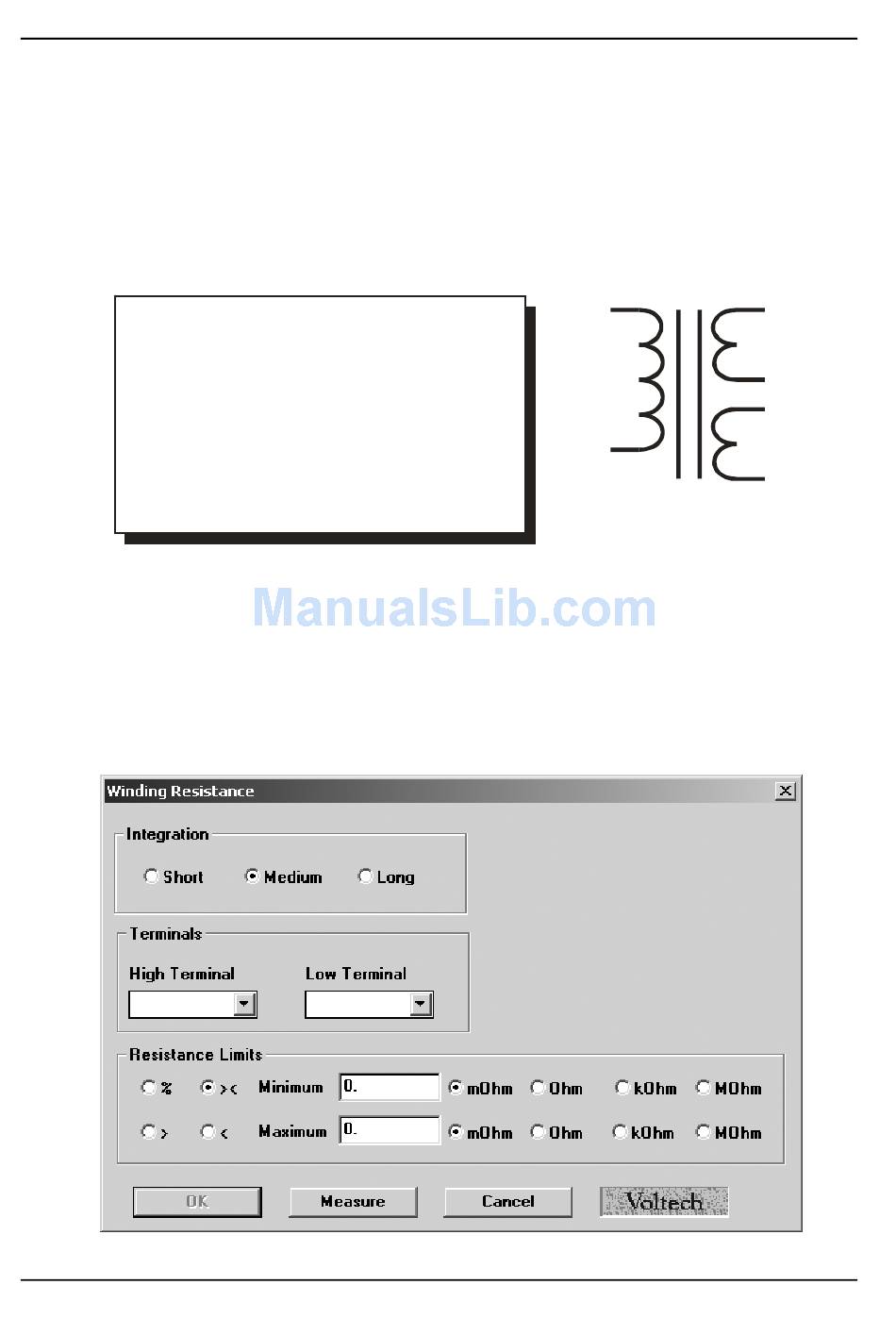

The test details (such as the transformer terminals, test conditions, and pass /
fail limits) are then entered into a form fill dialogue box.
P 1-16
AGE
W1
W2
W3
W1
W1 to W2
W2 to W3
W1 to W2 + W3
W1
Part Number: SMPSE42-A
