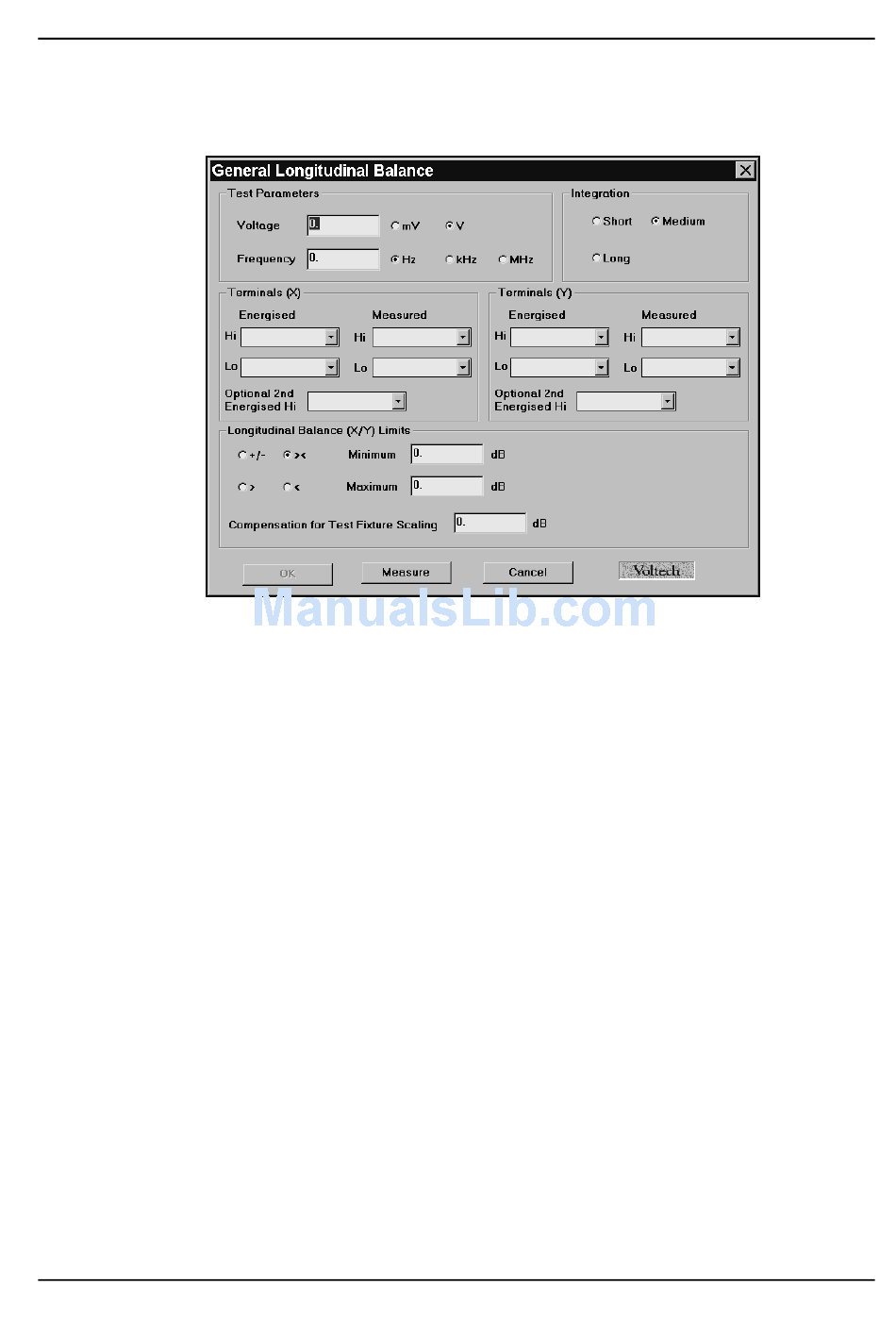

Programming the Test Using the PC Test Editor
The voltage and frequency are usually determined by the final application of
the part under test.
Select the integration period, which is normally 'Medium'
Enter the required terminal names:
Terminals (X) - the energized winding.
Terminals (X) – the measured voltage VOUT1
Terminals (Y) – the energized winding (normally the same as the
Terminals (Y) – the measured voltage VOUT2
The measurement can be compensated for any scaling on the fixture. For
example where the fixture transformer is not 1:1.
Note that the Editor's 'Measure' button CANNOT be used to determine the test
voltage.
