2.3.2 Drawing the Transformer Schematic

At the PC, double-click on the editor icon to start the PC Editor. The first thing
to do is to 'draw' a schematic of the transformer to be tested.

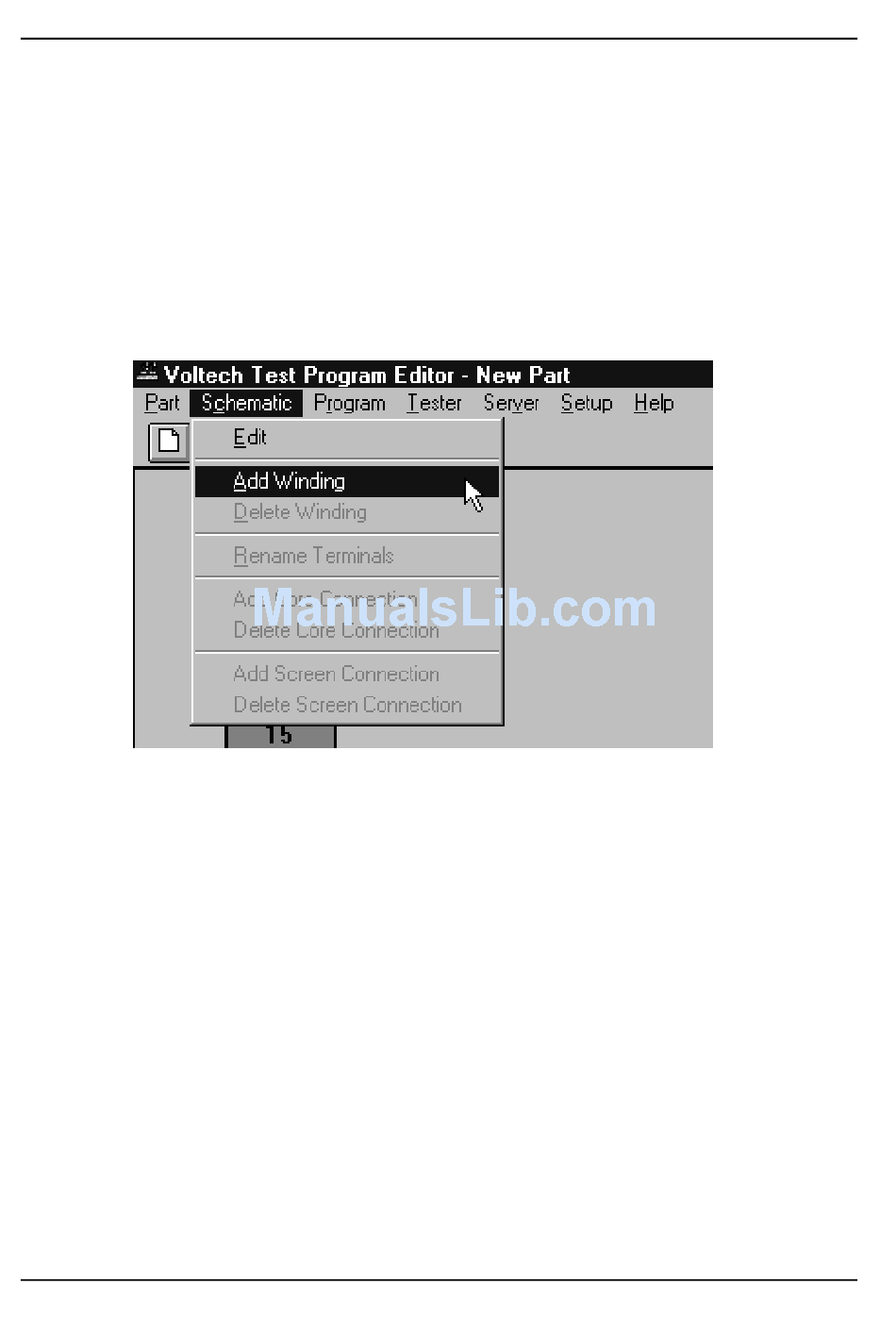

1. Using the left mouse button, click on 'Schematic' on the top Level
menu bar, and select 'Add Winding' from the menu.
You will now see a winding with two terminals, floating below the
mouse pointer.
2. Place the winding on the left hand side of the screen and press the
left mouse button.
3. A dialogue box will ask you to name the terminals of the winding; the
cursor will be in the box for Terminal 1. Type the name of the
Terminal 1 (e.g. 'A').
Press TAB to move to the Terminal 2 box, and type the name of the
second terminal (e.g. 'B') in that box. Then click OK or press [Enter].
