Rear Server Node Status Indicators

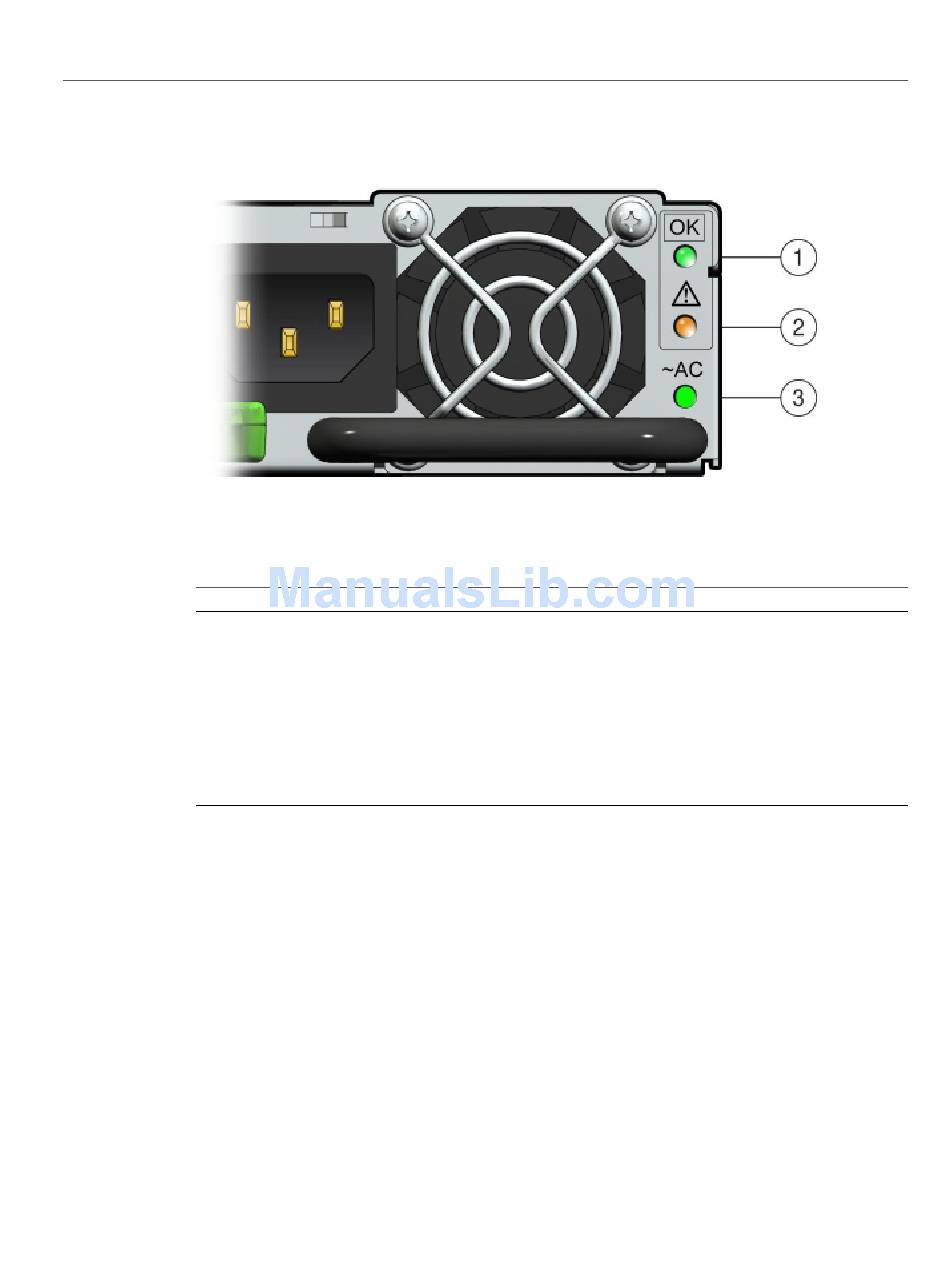

Each server node in Oracle Database Appliance Version 1 has four summary status LEDs that
are located on its back panel, as shown in the following table.
42 Oracle Database Appliance Service Manual • June 2017
Indicator/LED: Color
OK: green
Service Required: amber
AC Present: green
State Meaning
■ On – The power supply is operating normally.
■ Off – The power supply is unplugged or turned off.
■ On – The power supply is faulty. The front REAR PS LED and
the front and rear panel Service Required LEDs are also lit if the
system detects a power supply fault.
■ Off – Normal operation.
■ On – The power supply is plugged in and AC power is available,
regardless of system power state.
■ Off – The power supply is unplugged or turned off.
