2. Remove the air duct.

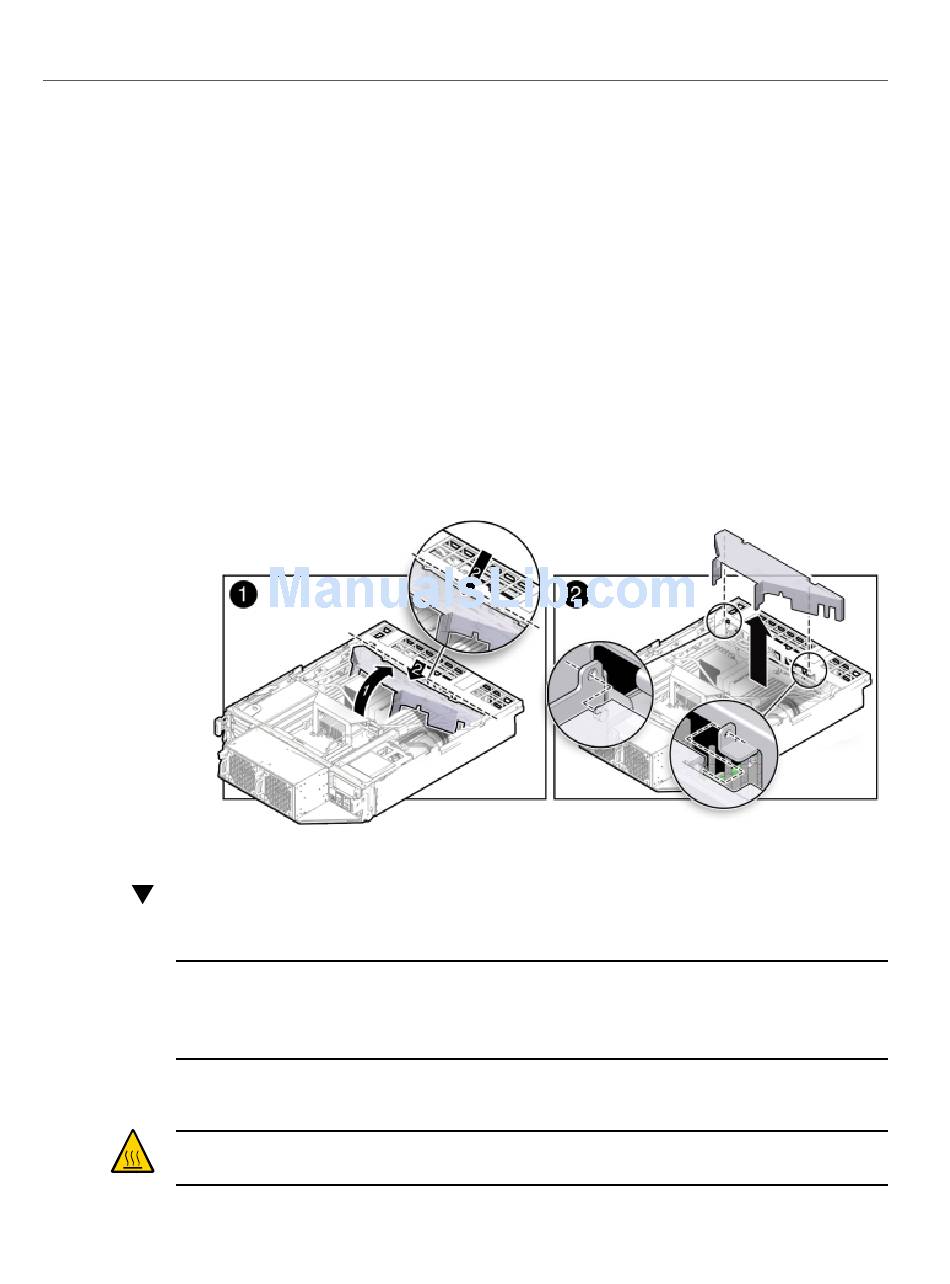

a. From the rear of the server node, grasp the middle/rear of the air duct with
your right hand and lift it up to a 45 degree angle [1].
The air duct swings up and away from the rear of the system.
b. Grasp the left end of the plastic air duct with your left hand to hold it at a 45
degree angle, and with your right hand press gently down on the middle of
the air duct until it bends enough to disengage its left hinge from its socket
[2].
c. Remove the air duct's right hinge from its socket and set the air duct aside
[2].

Install Air Duct

Note - Information in this appendix does NOT apply to Oracle Database Appliance X3-
2, Oracle Database Appliance X4-2, Oracle Database Appliance X5-2 or Oracle Database
Appliance X6 series. Refer to the preceding chapters in this document for information on
servicing those systems.
This section describes installing the air duct in Oracle Database Appliance Version 1.
Equipment overheating. Ensure that the air duct is installed correctly before
Caution -
powering on the server.
