Oracle Database Appliance X6-2-HA Manual page 191

This section describes removing the fan power cables from Oracle Database Appliance Version
1.
Prepare the server node for service.
1.
a. Attach an antistatic wrist strap.
See "Performing Electrostatic Discharge and Antistatic Prevention
Measures" on page
b. Remove the server node from the system.
Power is removed from the server node when you remove it from the system. See
"Removing Server Nodes From the System Chassis" on page
c. Remove the server node top cover.
See "Removing the Server Node Top Cover" on page

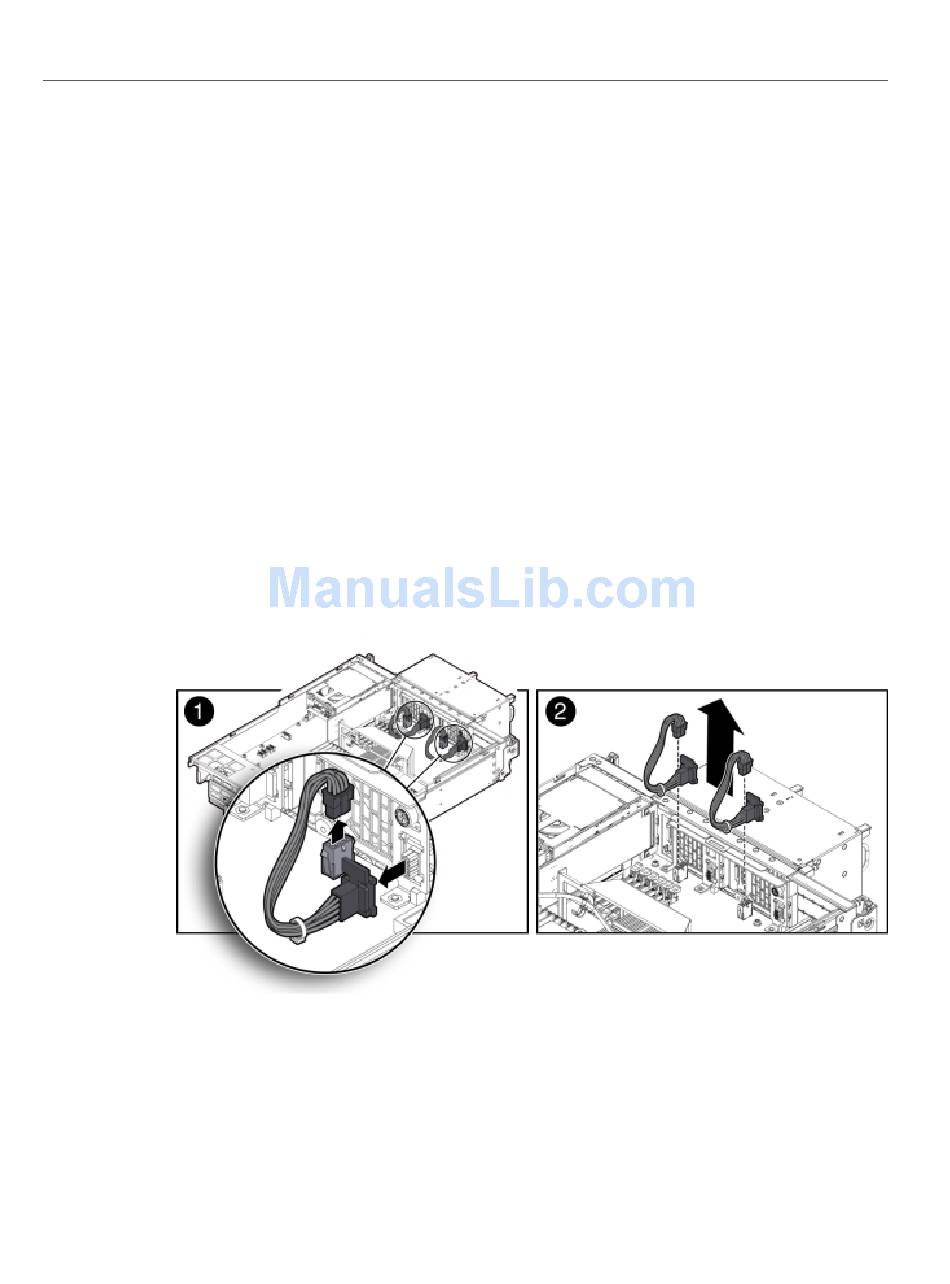

2. Disconnect the fan power cables and remove them from the server node.
112.
Appendix A • Servicing the Oracle Database Appliance Version 1
Remove Fan Power Cables
113.
114.
191
