Oracle Database Appliance X6-2L Server Status
Indicators
These topics describe Oracle Database Appliance X6-2L server status indicators (LEDs).

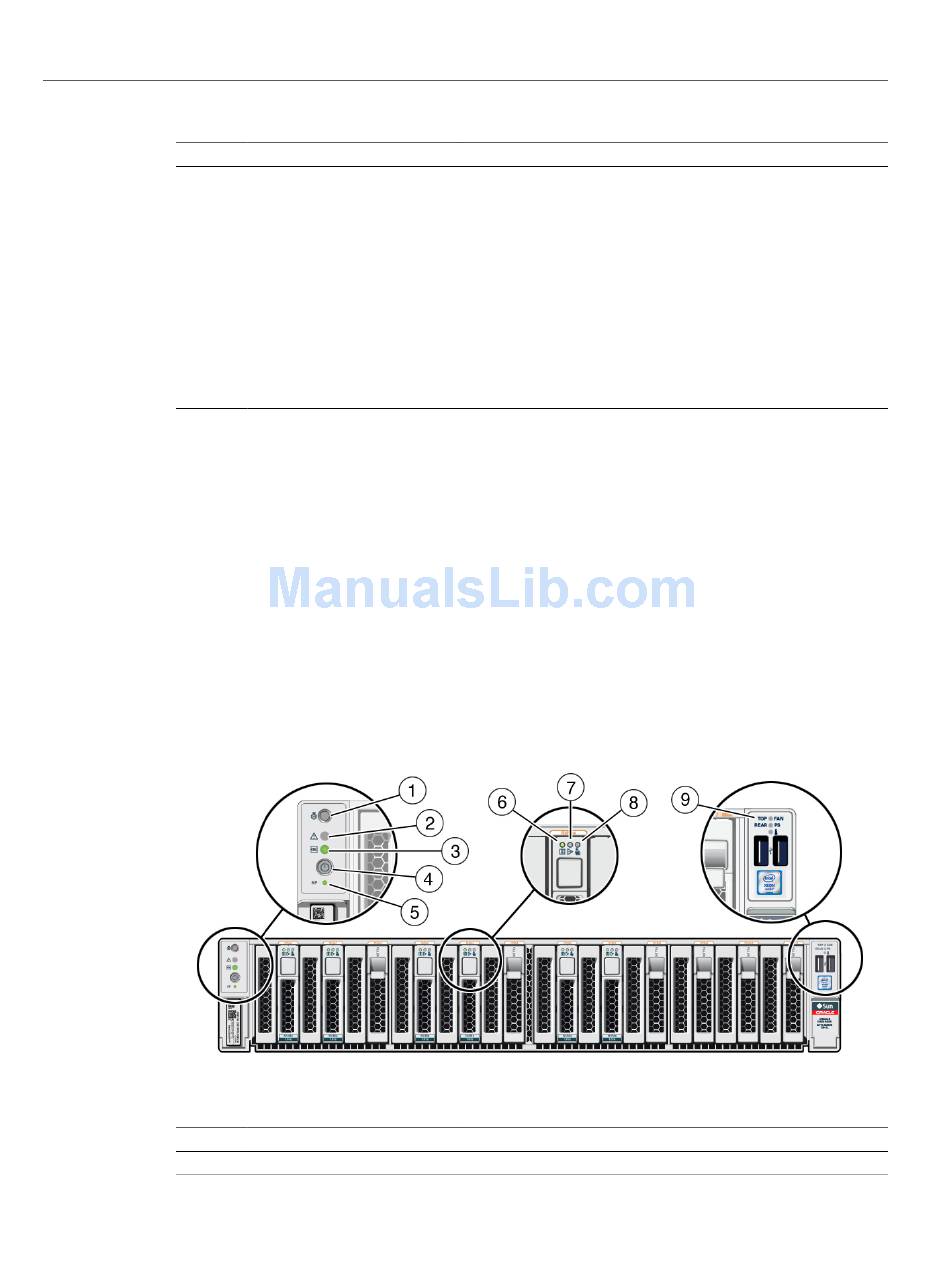

Server Front Panel Status Indicators
The Oracle Database Appliance X6-2L server front panel includes indicators for the system and
storage drives.
Callout
Indicator/LED: Color
1
Locate: white
Oracle Database Appliance X6-2S/X6-2M/X6-2L Status Indicators
State Meaning
■ Blinking – No function.
1000/10000 BASE-T Ethernet management interface.
GRN=10G:
■ On – Green for 10GbE link; amber for 1GbE link.
■ Off – No function.
ACT/LINK (A or B):
■ On – Green for link up.
■ Off – No link.
■ Blinking – Green for packet activity.
State Meaning
■ Off – Normal operation.
Chapter 1 • Overview of System Status Indicators and LEDs
15
