Oracle Database Appliance X3-2/X4-2 Storage Shelf Status Indicators - Oracle Database Appliance X6-2-HA Manual

Callout Indicator/LED: Color
Oracle Database Appliance X3-2/X4-2 Storage
Shelf Status Indicators
Storage shelves are supported with Oracle Database Appliance X3-2/X4-2. They include
controls and indicators on the front panel, hard drives, SSD drives, power supplies, and SAS I/
O modules.
Storage Shelf Front Panel Status Indicators

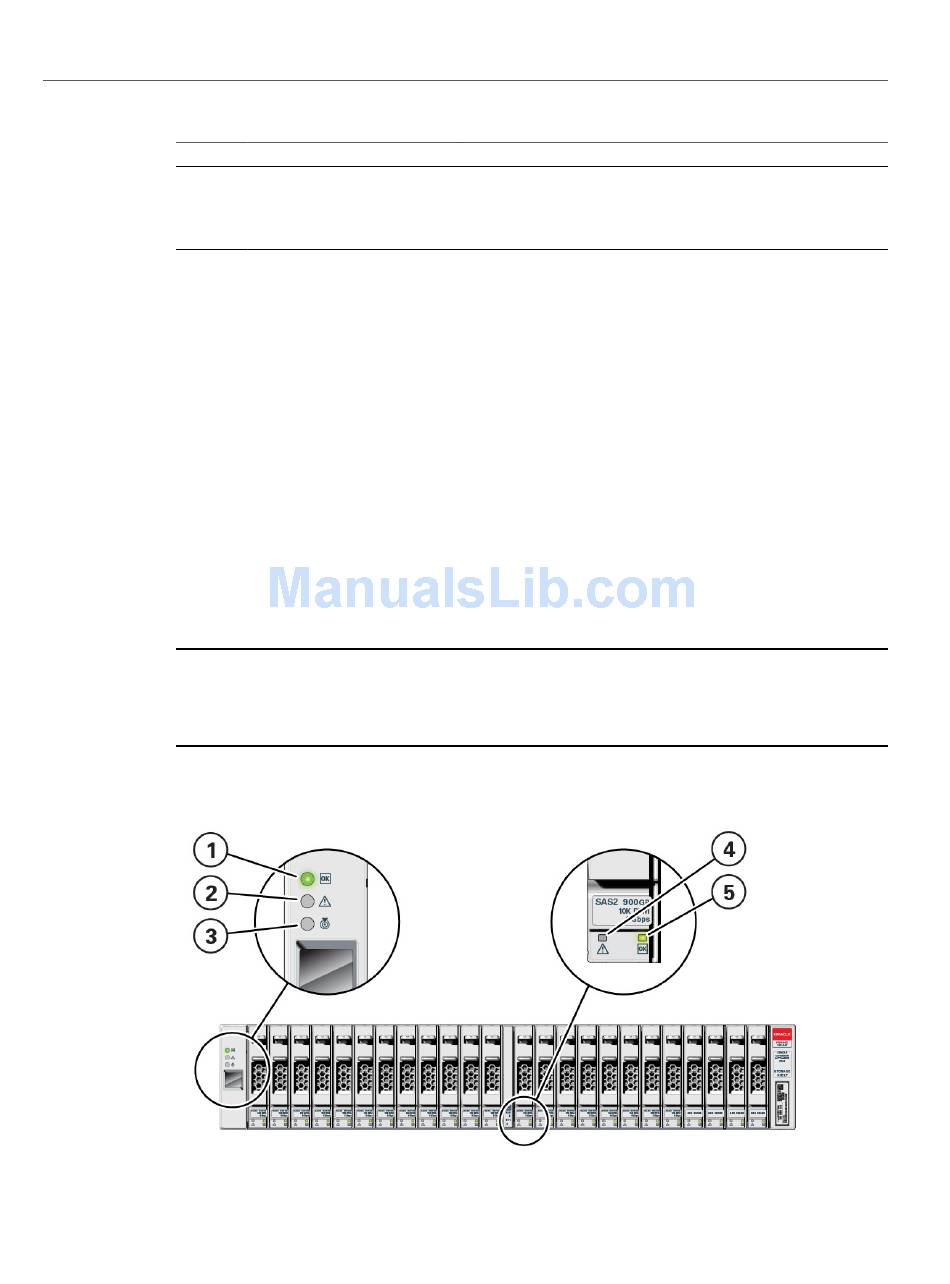

The following figure shows the controls and indicators on the Oracle Database Appliance X3-2/
X4-2 storage shelf (DE2-24P) front panel and drives.
The 2 or 3 character LED enclosure ID display panel on the front of the storage shelf is
Note -
not used with the Oracle Database Appliance product. Any numbers or letters displayed in this
panel other than zeros could indicate a fault with either the panel, its cabling (neither of which
are customer replaceable), or some other storage shelf component.
Oracle Database Appliance X3-2/X4-2 Status Indicators
State Meaning
■ On – Amber for 100Base-T link; green for 1000/10GBBase-T
link.
■ Off – No link.
■ Blinking – No function.
Chapter 1 • Overview of System Status Indicators and LEDs 35
