Callout Indicator/LED: Color

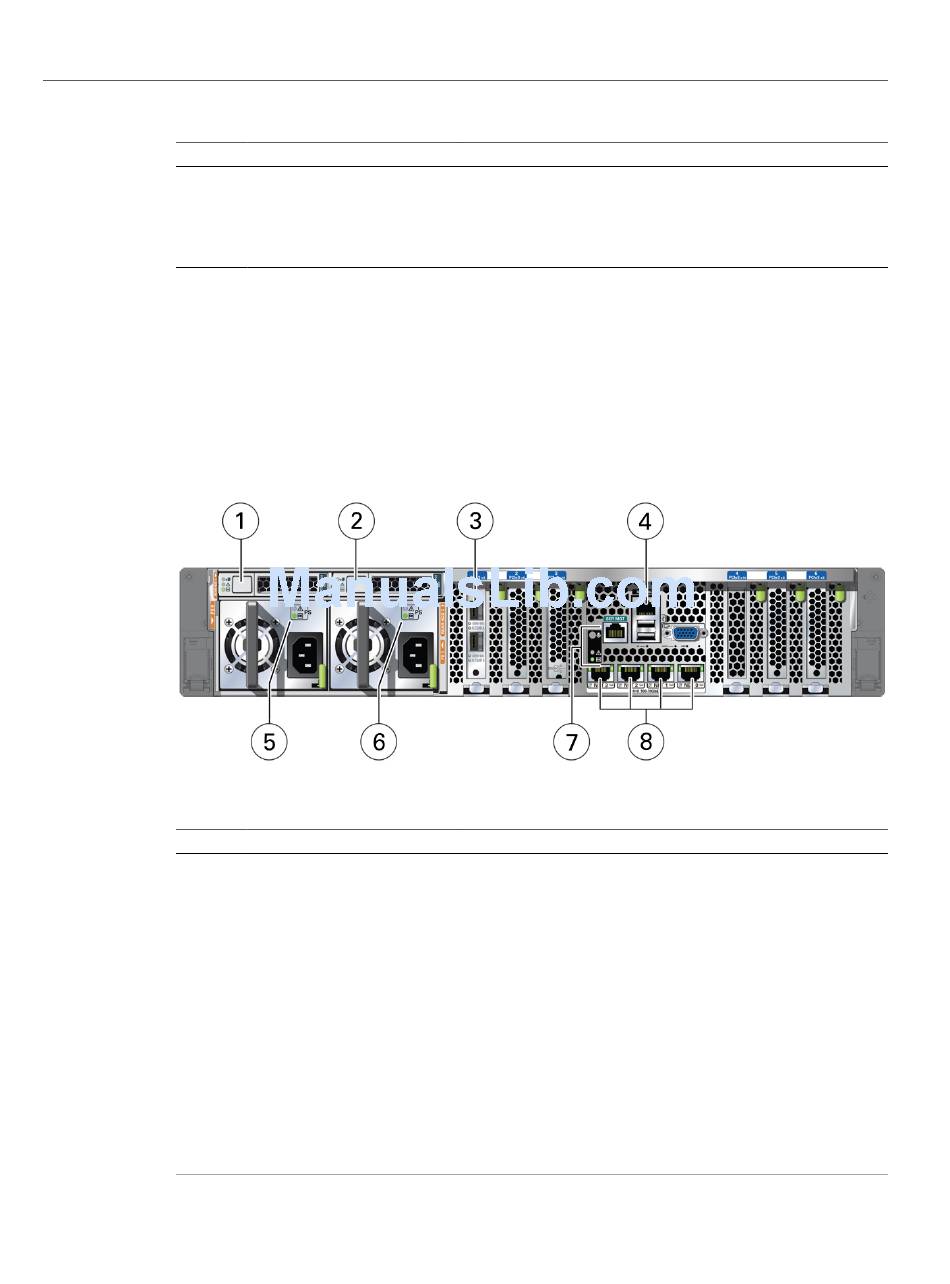

Server Back Panel Status Indicators
The Oracle Database Appliance X6-2L server back panel includes indicators for the rear drives,
system, power supplies and network ports.
Callout Indicator/LED: Color
1, 2 Storage drive status: various
3 Dual-port 10 GbE SFP+ PCIe
2.0 Low Profile Adapter ports:
green/amber
4 NET MGT port: green
Oracle Database Appliance X6-2S/X6-2M/X6-2L Status Indicators
State Meaning
■ On – The system is experiencing an over-temperature warning
condition.
This is a warning indication, not a fatal over-temperature.
Note -
Failure to correct this condition might result in the system
overheating and shutting down unexpectedly.
State Meaning
These operate in the same way as on the front panel.
GRN=10G:
■ On – Green for 10GbE link; amber for 1GbE link.
■ Off – No function.
ACT/LINK (A or B):
■ On – Green for link up.
■ Off – No link.
■ Blinking – Green for packet activity.
10/100/1000 BASE-T Ethernet management interface.
Top left link indicator:
■ On – Green for 1000Base-T link.
■ Off – 10/100BASE-T link.
Chapter 1 • Overview of System Status Indicators and LEDs 17
