Oracle Database Appliance X5-2 Storage Shelf
Status Indicators
Storage shelves are supported with Oracle Database Appliance X5-2. They include controls and
indicators on the front panel, hard drives, SSD drives, power supplies, and SAS I/O modules.
Storage Shelf Front Panel Status Indicators

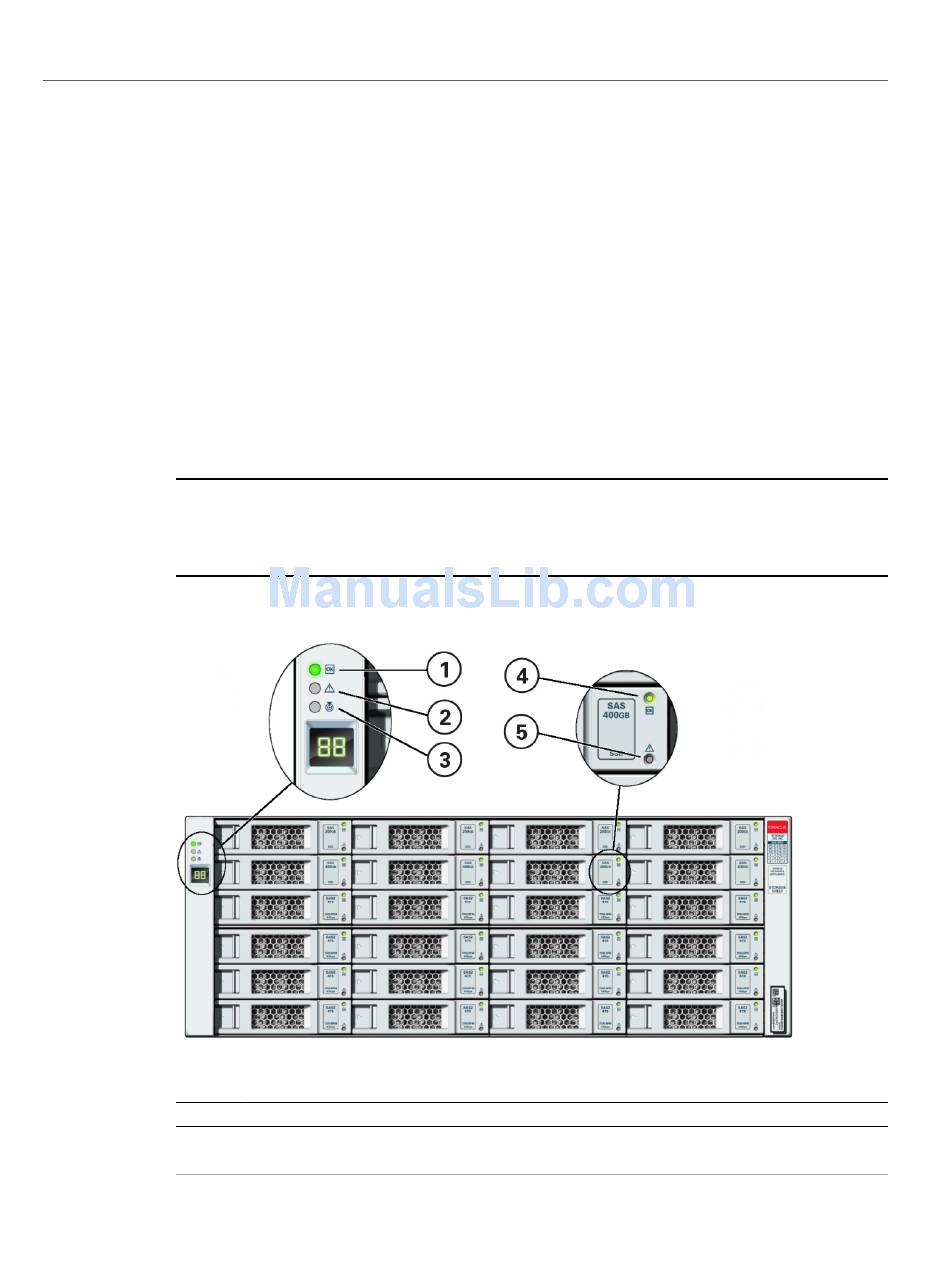

The following figure shows the controls and indicators on the Oracle Database Appliance X5-2
storage shelf (DE2-24C) front panel and drives.
The 2 or 3 character LED enclosure ID display panel on the front of the storage shelf is
Note -
not used with the Oracle Database Appliance product. Any numbers or letters displayed in this
panel other than zeros could indicate a fault with either the panel, its cabling (neither of which
are customer replaceable), or some other storage shelf component.
Callout Indicator/LED: Color
1 OK: green
Oracle Database Appliance X5-2 Status Indicators
State Meaning
■ On – The storage shelf is powered on and operating normally.
■ Off – The storage shelf is unplugged or turned off.
