Push the connector inward, press down on the connector to release it, and pull the
connector out.
Install SAS Expander Cable
Information in this appendix does NOT apply to Oracle Database Appliance X3-
Note -
2, Oracle Database Appliance X4-2, Oracle Database Appliance X5-2 or Oracle Database
Appliance X6 series. Refer to the preceding chapters in this document for information on
servicing those systems.
This section describes installing the SAS expander cable in Oracle Database Appliance Version
1.
1. Reconnect the SAS expander cable.

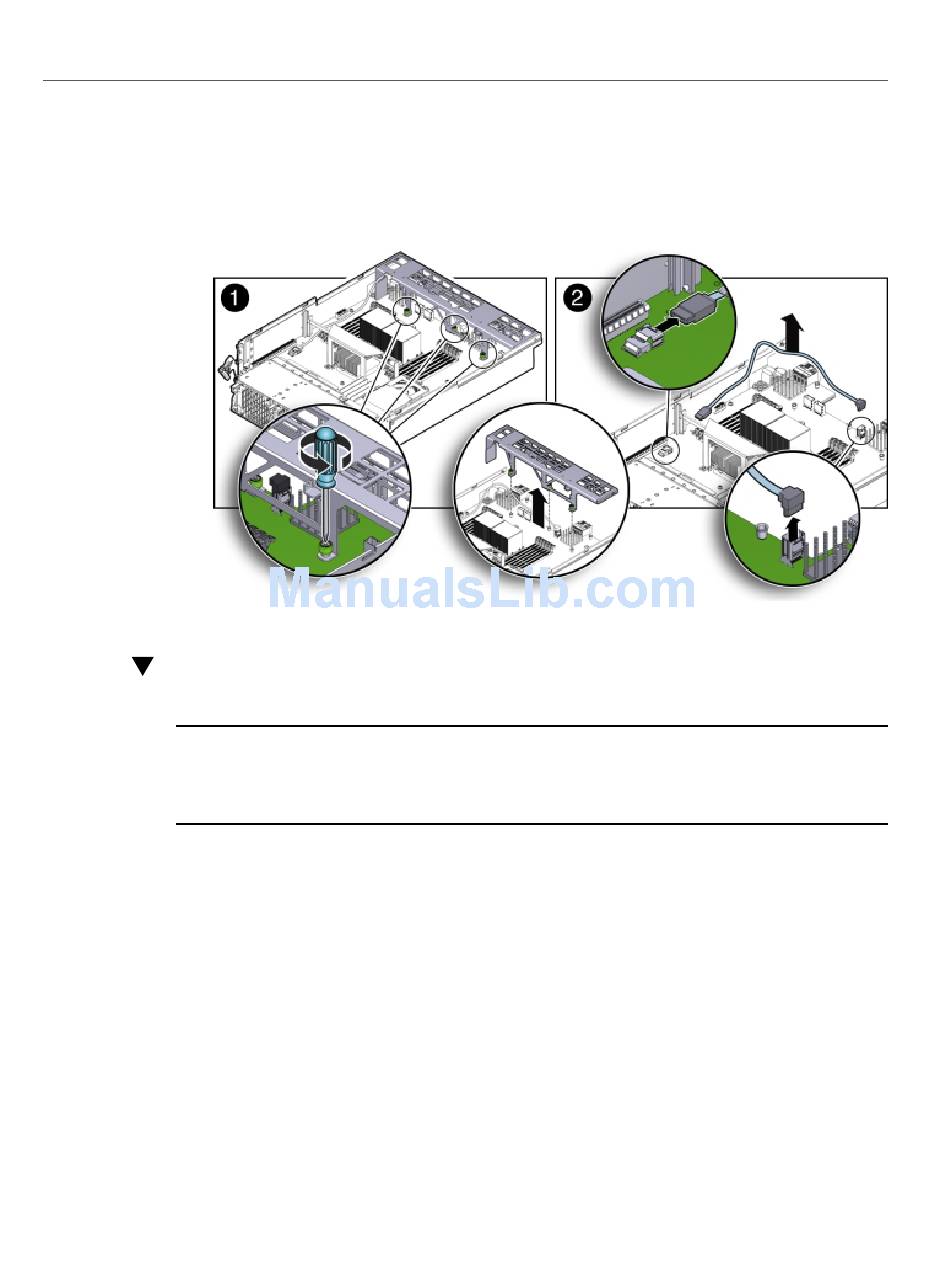

a. Reconnect the SAS expander cable connectors to the motherboard [2].
Position the server node's front cover onto the server node and tighten
b.
the three green, captive Phillips screws that secure the server node's front
cover to the motherboard [1].
2. Return the server node to operation.
a. Install the PCIe riser.
