Storage and Boot Drive Status Indicators

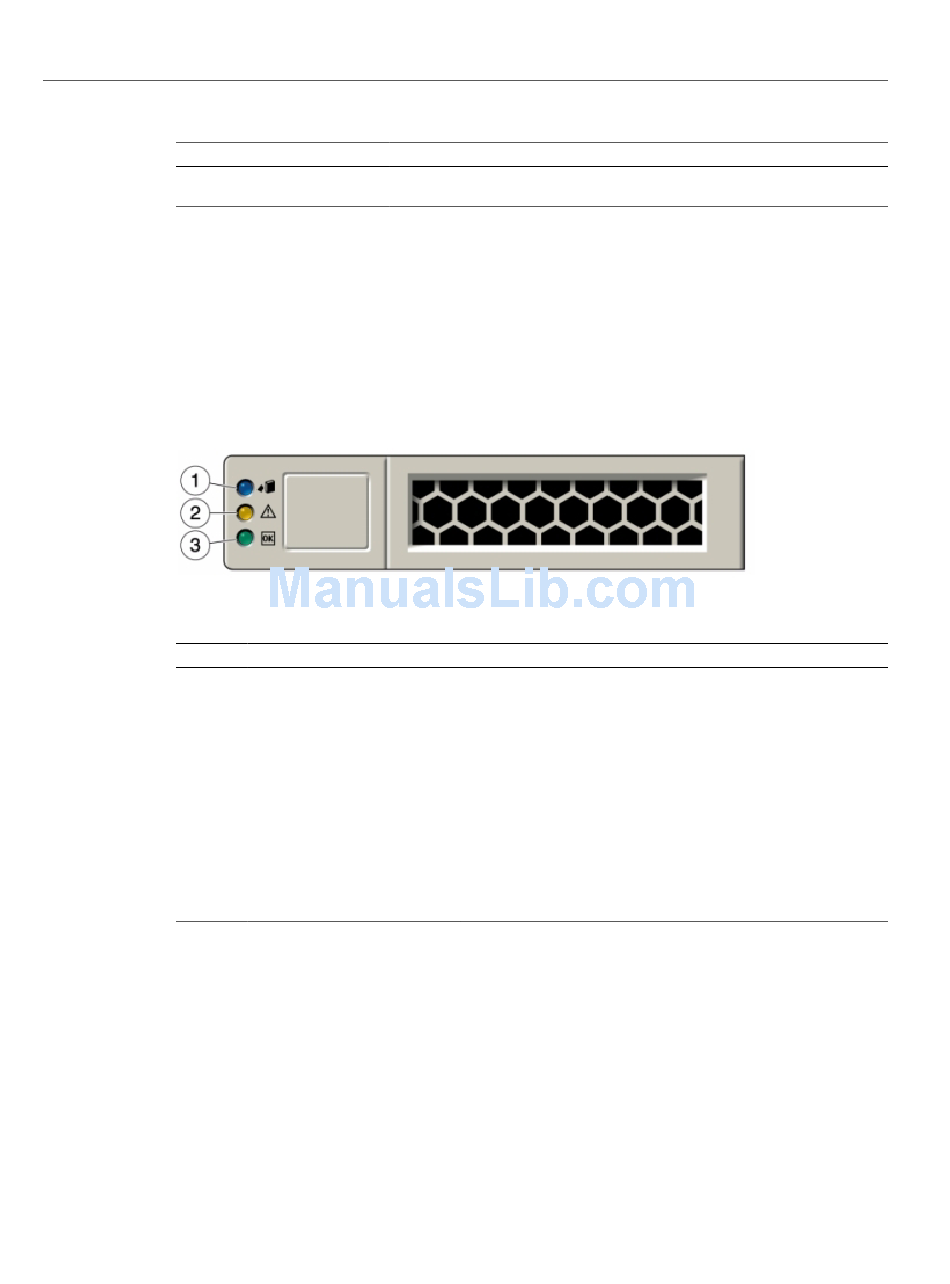

Each storage drive for Oracle Database Appliance Version 1 includes three LEDs. They are the
same on the front storage drives and the rear-mounted boot drives. See the following table.
Callout Indicator/LED: Color
1 Ready to Remove: blue
2 Service Required: amber
3 OK/Activity: green

Power Supply Status Indicators

There are three status LEDs on each power supply for Oracle Database Appliance Version 1, as
shown in the following table.
Oracle Database Appliance Version 1 Status Indicators
State Meaning
Note - The front and rear panel Service Required LEDs are also lit if the system
detects a fan module fault.
State Meaning
■ Off – Normal operation.
■ Fast blink – The system is preparing a disk drive for safe removal
but it is not ready yet.
■ Steady on – The disk drive can be safely removed.
■ Off – Normal operation.
■ Steady on – A fault is present in the disk drive.
■ On – The drive is installed and recognized by the system but
there is no drive activity.
■ Blink – The LED blinks randomly in response to data being
written to or read from the drive.
■ Off – The drive is powered off or the installed drive is not
recognized by the system.
Chapter 1 • Overview of System Status Indicators and LEDs 41
